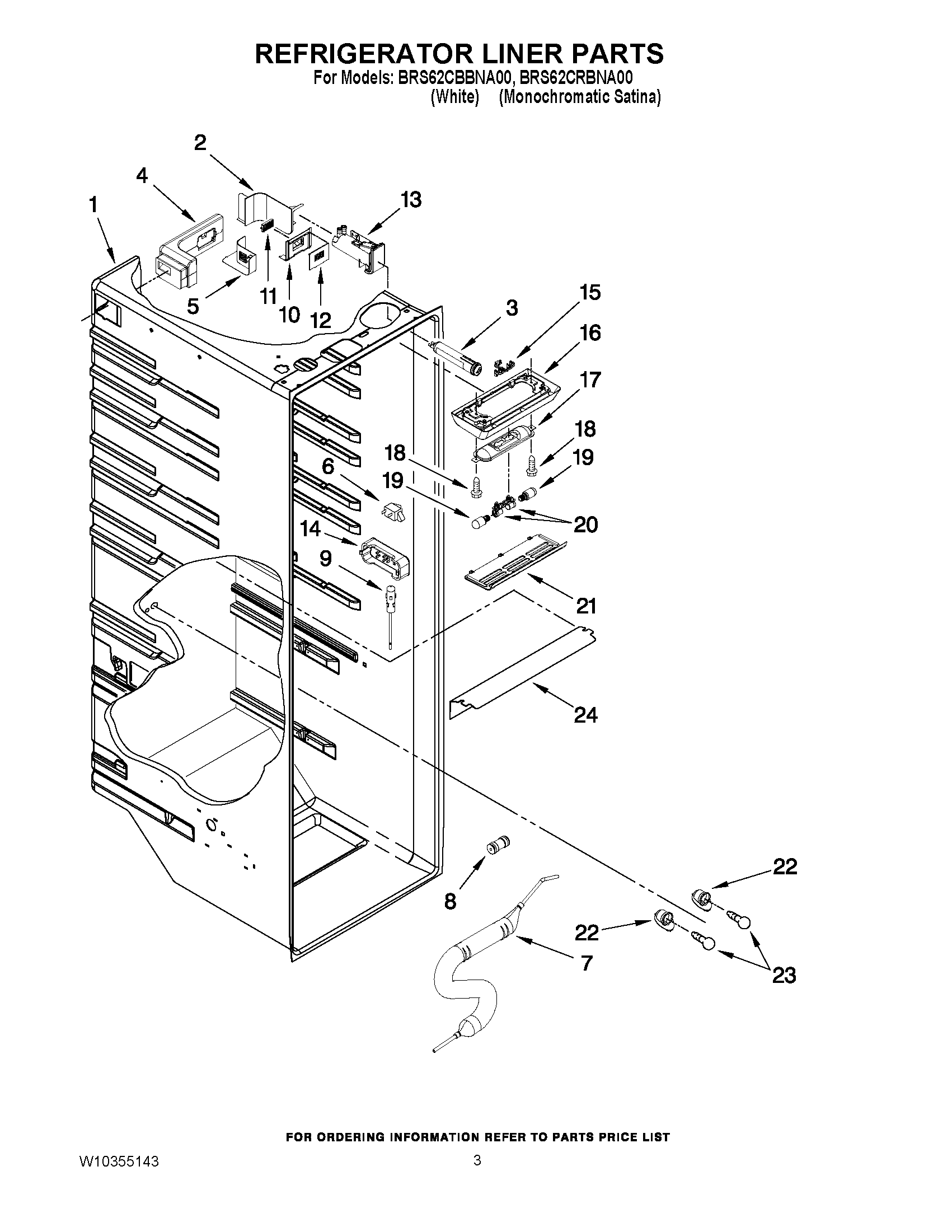

BRS62CBBNA00 02 – REFRIGERATOR LINER PARTS

BRS62CBBNA00 02 – REFRIGERATOR LINER PARTS

Written by

in

BRS62CBBNA00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10260405 Whirlpool Refrigerator Filter Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4AIR DIFFUSER ASSEMBLY
5AIR DIFFUSER COVER
6W11384469 Whirlpool Door Switch
7W11613294 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10AIR FILTER HOUSING
11AIR FILTER
12AIR FILTER COVER
13WPW10329943 Whirlpool Housing
14WPW10425252 Whirlpool Refrigerator Cover
15WIRE ASSY, TOP LIGHT
16W10280178 Whirlpool Refrigerator Trim
172223680 Whirlpool Refrigerator Shield
18WP3400906 Whirlpool Refrigerator Screw
19W11618980 Whirlpool Light Bulb
20W11661565 Whirlpool Refrigerator Socket
21W10280420 Whirlpool Refrigerator Light Lens
224387478 Whirlpool Refrigerator Light Socket
23WP67002552 Whirlpool Refrigerator Light Bulb
24WPW10269099 Whirlpool Refrigerator Light Lens
