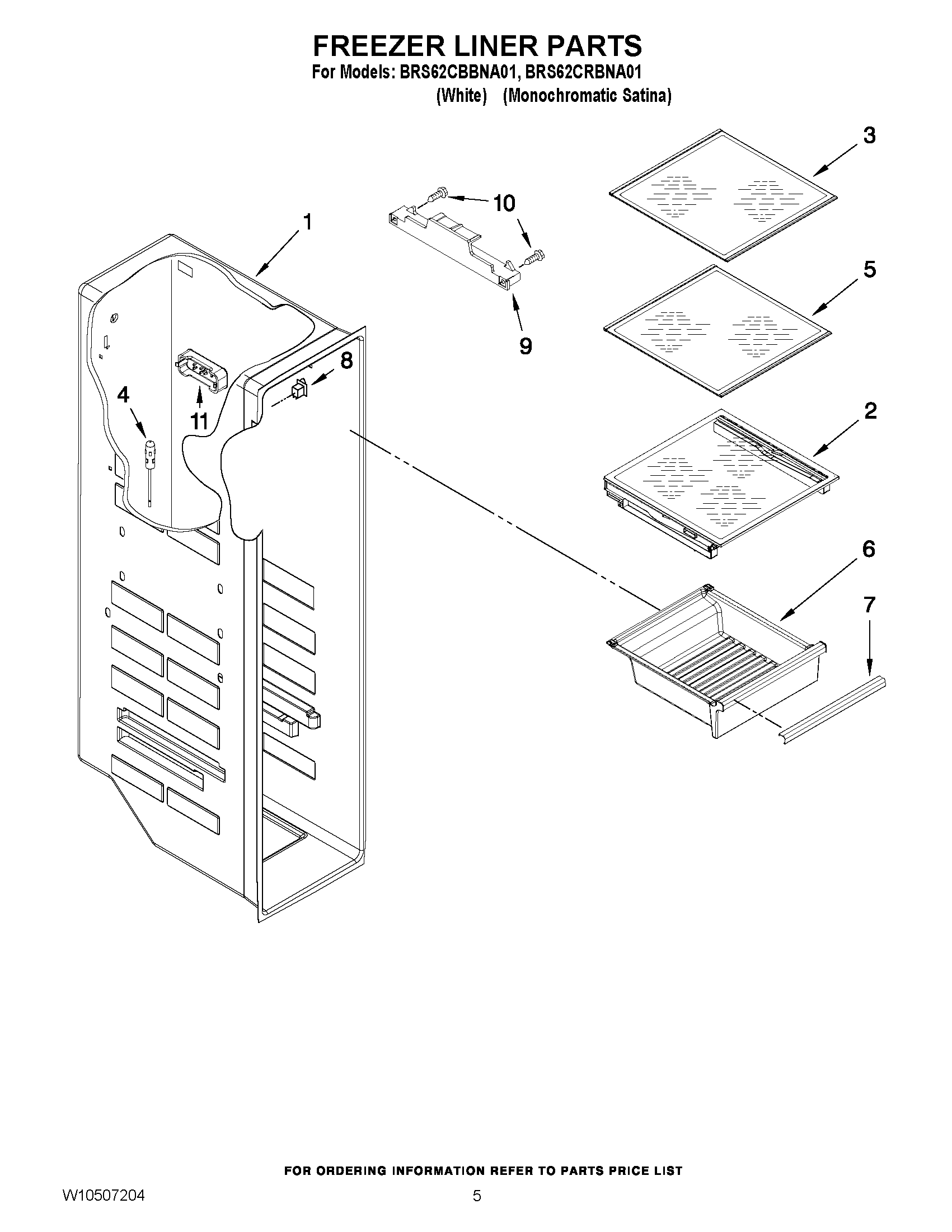

BRS62CBBNA01 04 – FREEZER LINER PARTS

BRS62CBBNA01 04 – FREEZER LINER PARTS

Written by

in

BRS62CBBNA01 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSY
3WPW10238485 Whirlpool Glass Shelf
4THERMISTOR
5WPW10269146 Whirlpool Glass Shelf
6W11106313 Whirlpool Refrigerator Freezer Bin
7W11236850 Whirlpool Refrigerator Pan Trim
8W11457217 Whirlpool Refrigerator Rocker Switch Combination
9SLIDE, CONTAINER
10718257 Whirlpool Dishwasher Screw
11W10425253 Whirlpool Refrigerator Cover
