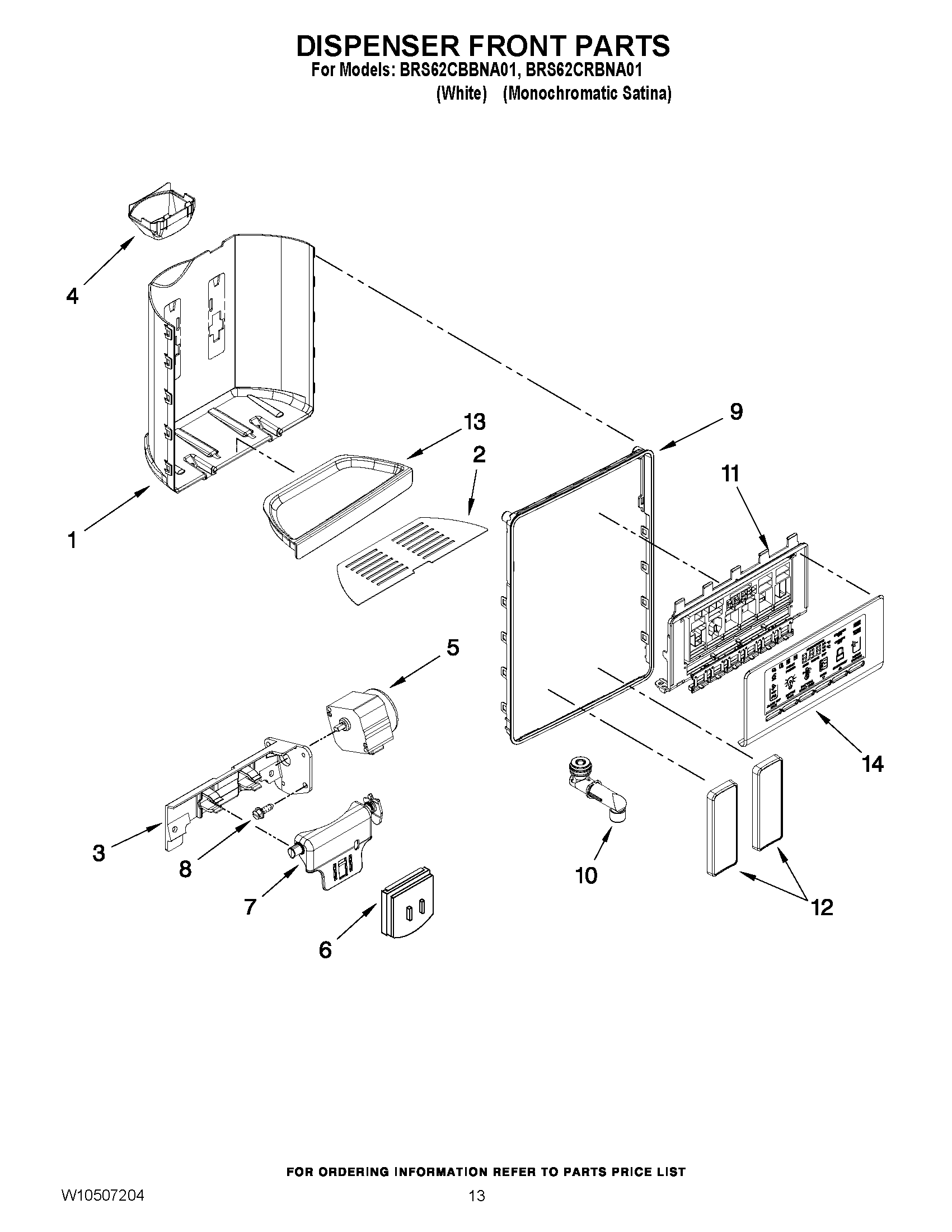

BRS62CBBNA01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10276223 Whirlpool Refrigerator Grille
2	WPW10276220 Whirlpool Refrigerator Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	WPW10493172 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	WPW10276186 Whirlpool Refrigerator Dispenser Trim
9	W10276227 Whirlpool Refrigerator Dispense Trim
10	WP2305235 Whirlpool Refrigerator Spigot
11	WPW10276238-includeCORE Whirlpool WPW10276238 Refrigerator Electronic Control Board + Core
12	WPW10370594 Whirlpool Refrigerator Pad
12	WPW10370593 Whirlpool Refrigerator Pad
13	W10276193 Whirlpool Refrigerator Disp Tray
13	W11246841 Whirlpool Refrigerator Drip Tray
14	FRONT COVER (SILVER MIRROR)
14	FRONT COVER (BLACK)
