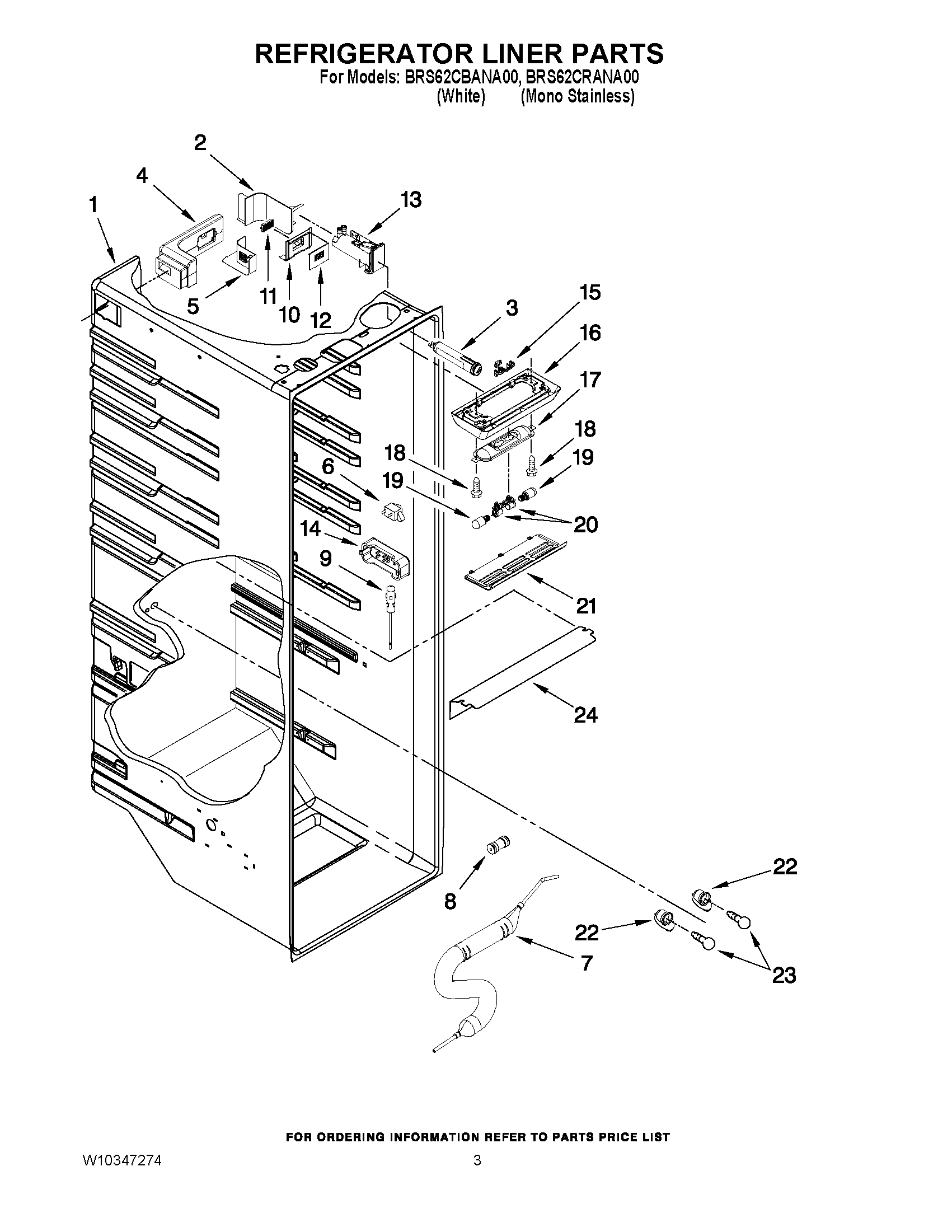

BRS62CRANA00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10260405 Whirlpool Refrigerator Filter Cover
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10814173 Whirlpool Refrigerator Diffuser
5AIR DIFFUSER COVER
6W11384469 Whirlpool Door Switch
7W11613294 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10AIR FILTER HOUSING
11AIR FILTER
12AIR FILTER COVER
13WPW10329943 Whirlpool Housing
14WPW10425252 Whirlpool Refrigerator Cover
15W10253300 Whirlpool Refrigerator Wire Jumper
16W10280178 Whirlpool Refrigerator Trim
172223680 Whirlpool Refrigerator Shield
18WP3400906 Whirlpool Refrigerator Screw
19WPA3073101 Whirlpool Light Bulb
20WPW10191429 Whirlpool Refrigerator Socket
21W10280420 Whirlpool Refrigerator Light Lens
224387478 Whirlpool Refrigerator Light Socket
23W11679940 Whirlpool Refrigerator Light Bulb Assembly
24WPW10269099 Whirlpool Refrigerator Light Lens
