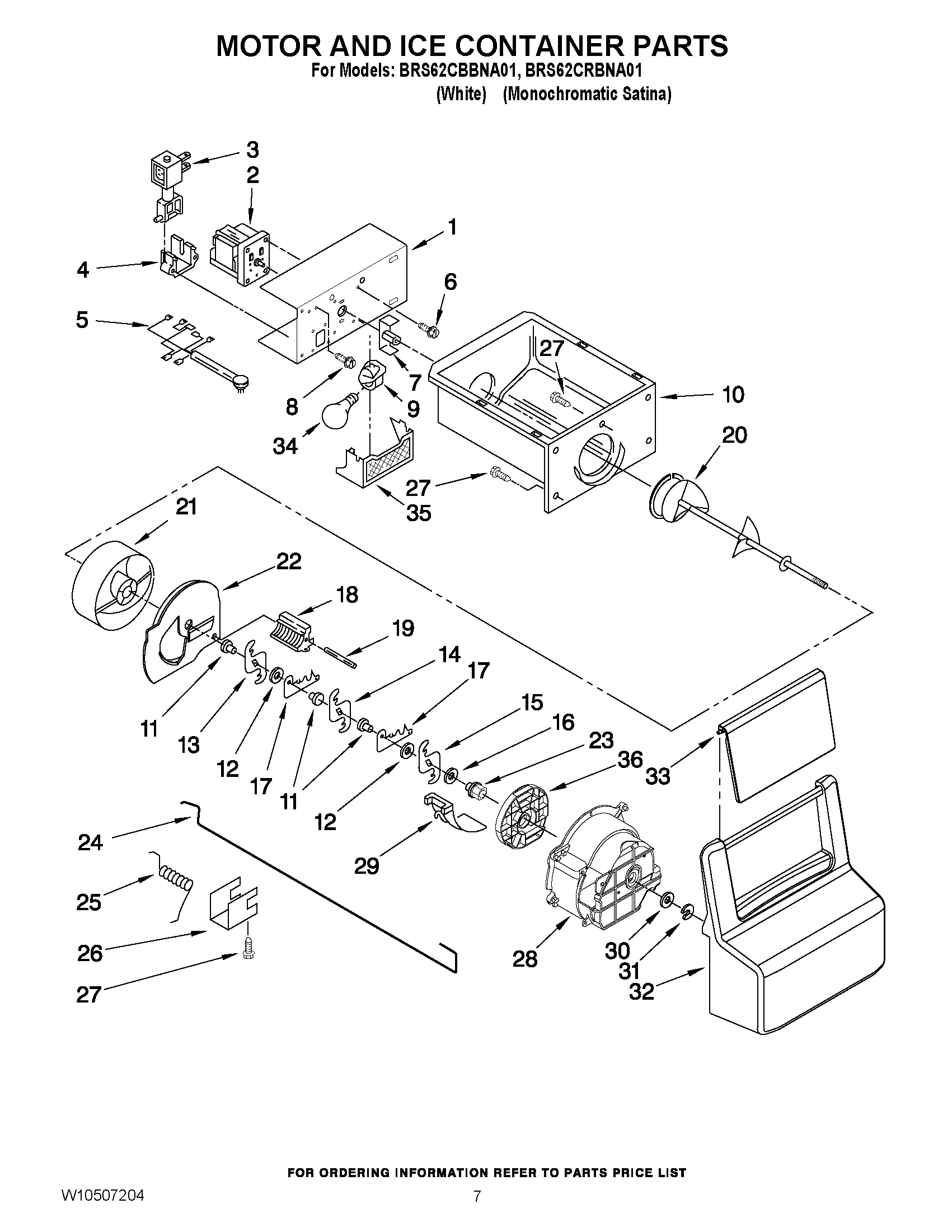

BRS62CRBNA01 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	W10276181 Whirlpool Bracket
2	MOTOR, DISPENSER
3	WPW10129867 Whirlpool Refrigerator Solenoid
4	W10850503 Whirlpool Refrigerator Guide
5	WIRE ASSEMBLY, ICE DESPENSER
6	WP489399 Whirlpool Refrigerator Screw
7	COUPLING AUGER MOTOR
8	SCREW
9	W11447232 Whirlpool Refrigerator Socket
10	W10294543 Whirlpool Refrigerator Container
11	W10189661 Whirlpool Refrigerator Spacer
12	W11032808 Whirlpool Refrigerator Spacer
13	W10278731 Whirlpool Refrigerator Blade
14	W10278732 Whirlpool Refrigerator Blade
15	W10278733 Whirlpool Refrigerator Blade
16	WASHER, PLAIN
17	W10181990 Whirlpool Refrigerator Blade
18	W10138203 Whirlpool Refrigerator Blade Block
19	489229 Whirlpool Refrigerator Roll Pin
20	AUGER
21	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
22	W10852691 Whirlpool Refrigerator Baffle
23	WP1119018 Whirlpool Refrigerator Bearing
24	W10294287 Whirlpool Refrigerator Control Arm
25	1119020 Whirlpool Refrigerator Spring
26	1119021 Whirlpool Refrigerator Clip
27	WP488787 Whirlpool Refrigerator Screw
28	WPW10413520 Whirlpool Housing
29	WP1119017 Whirlpool Refrigerator Deflector
30	489234 Whirlpool Refrigerator Washer
31	WP489236 Whirlpool Refrigerator Ring
32	FRONT COVER, ICE CONTAINER
33	W11661892 Whirlpool Refrigerator Ice Door
34	WP67002552 Whirlpool Refrigerator Light Bulb
35	WP2171706 Whirlpool Refrigerator Light Lens
36	W10138206 Whirlpool Refrigerator Spacer
100	ICE CONTAINER (COMPLETE)
