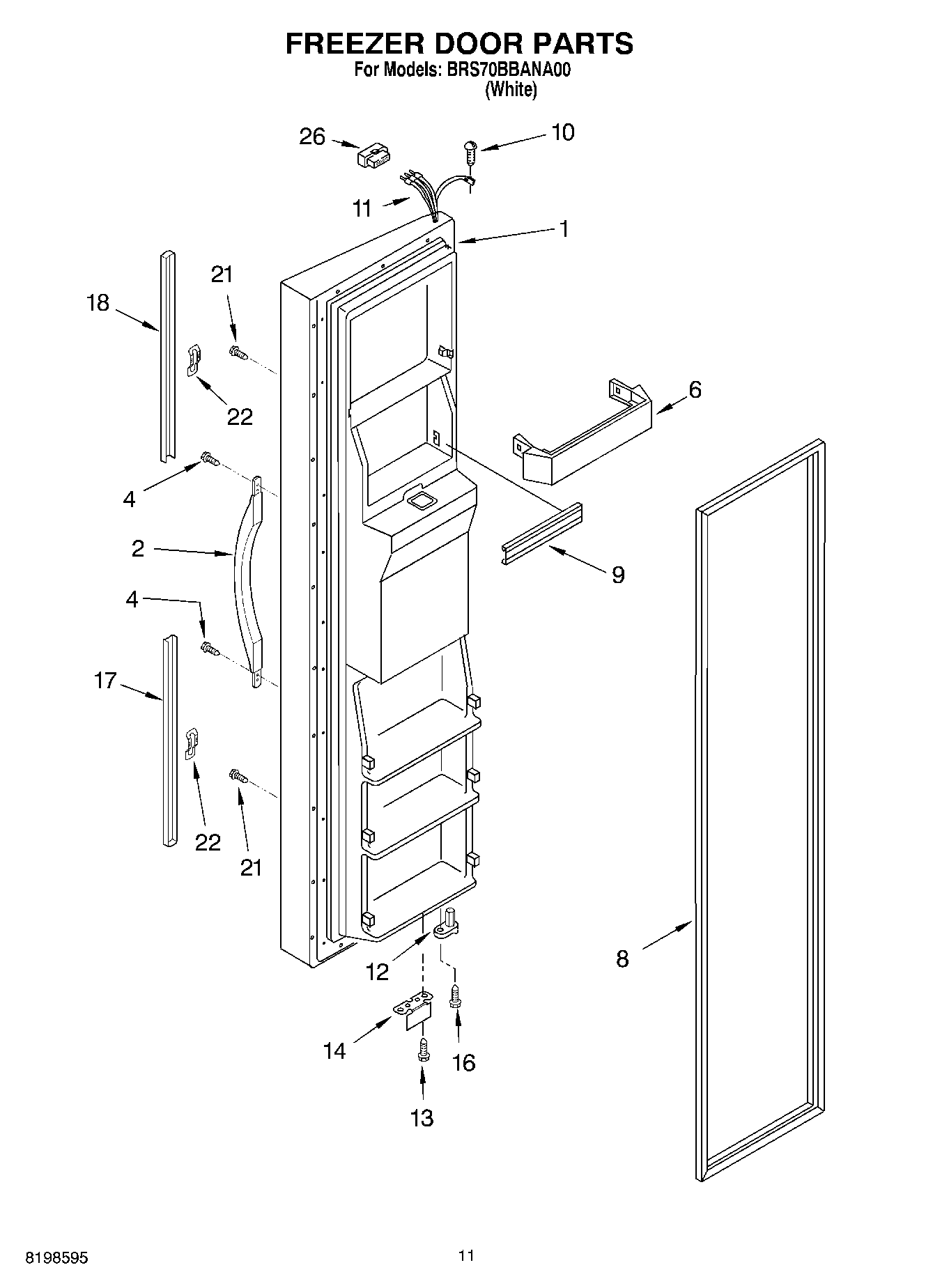

BRS70BBANA00 07 – FREEZER DOOR PARTS

BRS70BBANA00 07 – FREEZER DOOR PARTS

Written by

in

BRS70BBANA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts)
2Handle (White)
4WP489491 Whirlpool Refrigerator Screw
6Trivet, Shelf (4)
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
16WP3400012 Whirlpool Refrigerator Screw
17Trim, Door-Bottom (White)
18Trim, Door-Top (White)
21WP3400852 Whirlpool Refrigerator Screw
22WP2195327 Whirlpool Refrigerator Clip
26WP2154473 Whirlpool Refrigerator Connector
