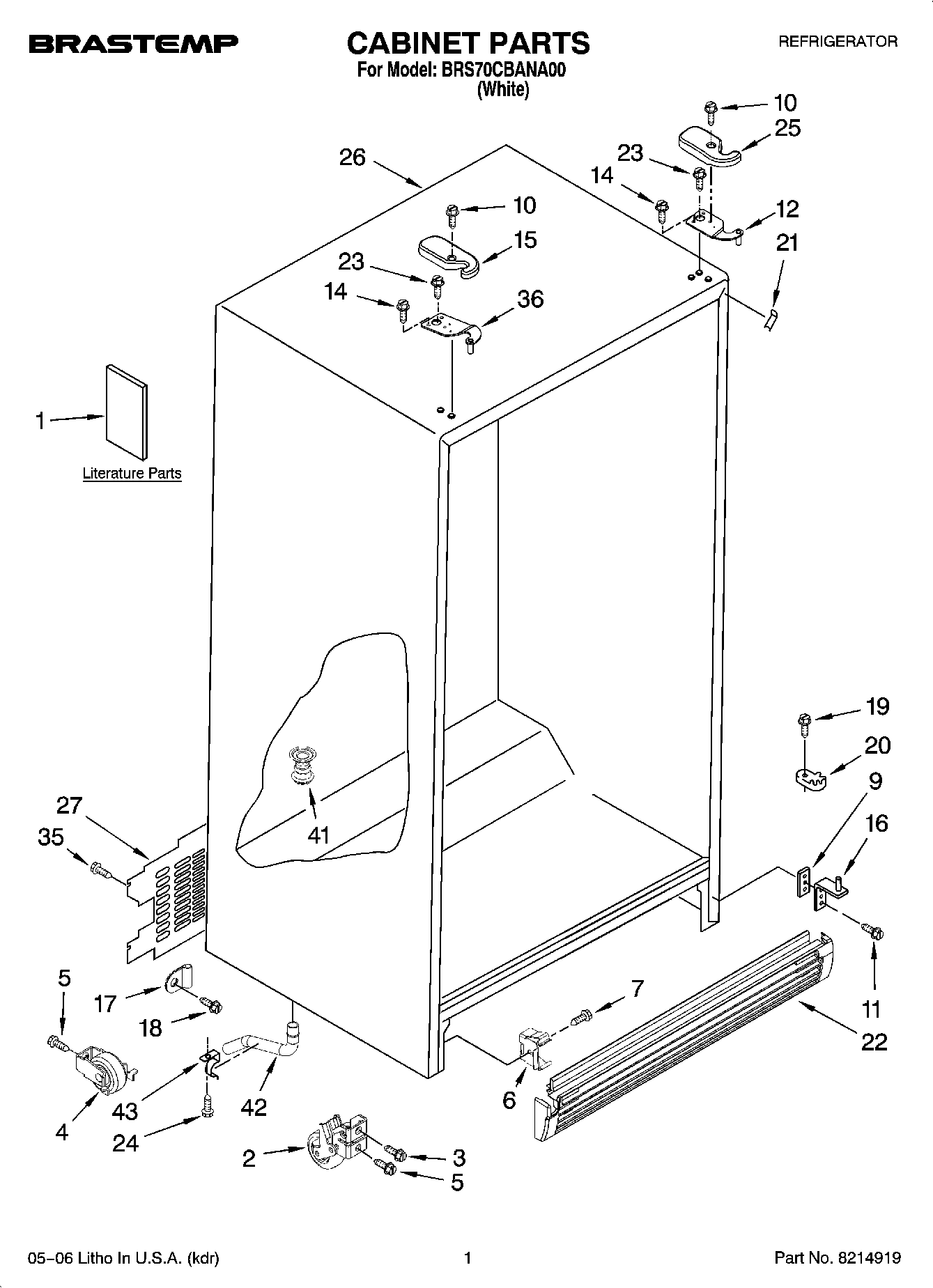

BRS70CBANA00 01 – CABINET PARTS

BRS70CBANA00 01 – CABINET PARTS

Written by

in

BRS70CBANA00 01 – CABINET PARTS

Products

PositionProduct
1Service & Wiring Sheet
1Installation Instructions
1Energy Label
1Modular Icemaker Service Sheet
1Use & Care Guide
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
9WP2181911 Whirlpool Refrigerator Shim
10WP8281227 Whirlpool Screw
12WP2203771 Whirlpool Refrigerator Door Hinge
14WP489128 Whirlpool Refrigerator Screw
15WP2203407W Whirlpool Refrigerator Cover
16Hinge, Bottom (2)
17W10833902 Whirlpool Refrigerator Clamp
18W11693756 Whirlpool Screw Assembly
19WP489483 Whirlpool Screw
20WPW10329686 Whirlpool Door Cam Black
21Filler, Wrapper (White)
22WPW10283946 Whirlpool Refrigerator Grille
23WP489497 Whirlpool Screw
25WP2203408W Whirlpool Refrigerator Cover
26Cabinet, (Not A Serviceable Part)
27Cover, Unit
35WP489464 Whirlpool Refrigerator Screw
36WP2203770 Whirlpool Refrigerator Door Hinge
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
