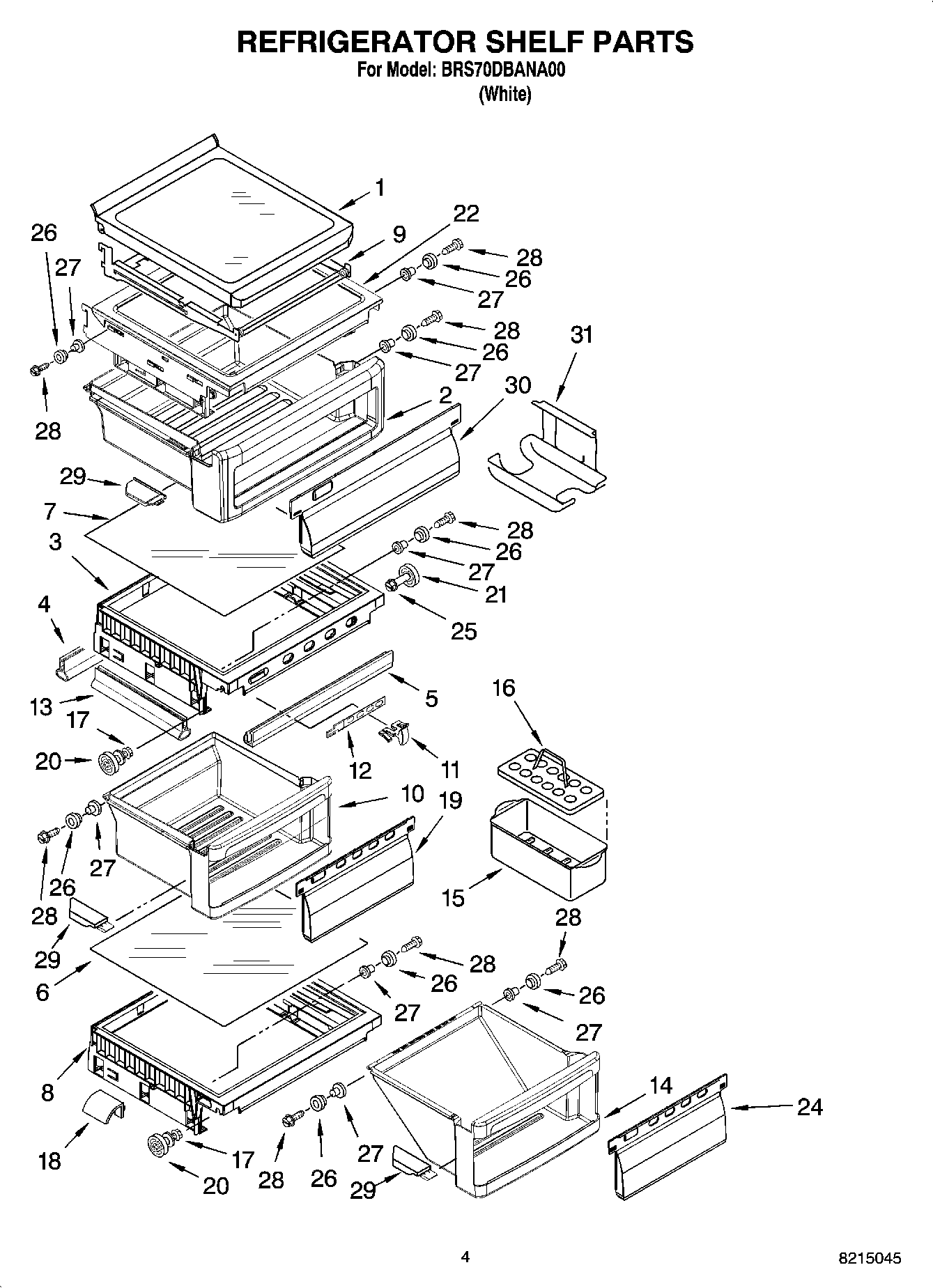

BRS70DBANA00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	WPW10141748 Whirlpool Refrigerator Glass Shelf
2	Snack Pan (Includes 30, 31, 32, 33, & 34)
3	Cover, Crisper (Includes 2, 3, 4, 11, 12, 32, 33 & 34)
4	Gasket, Rear
5	WP1125528 Whirlpool Refrigerator Gasket
6	Glass, Meat Pan Cover
7	Glass, Crisper Cover
8	Cover, Meat Pan (Includes Items 32, 33 & 34)
9	Frame, Shelf (2)
10	Crisper Pan (Includes 18, 31, 32, 33 & 34)
11	Knob, Humidity
12	2301026 Whirlpool Refrigerator Slide
13	2301117 Whirlpool Refrigerator Gasket
14	Meat Pan (Includes 22, 32, 33 & 34)
15	W10136387A Whirlpool Refrigerator Egg Container
16	WP2177817 Whirlpool Refrigerator Egg Container
17	W11223328 Whirlpool Refrigerator Shelf Stud
18	Deflector
19	Window, Crisper
20	WP3-24004-109 Whirlpool Refrigerator Screw
21	WP2196483 Whirlpool Refrigerator Shelf Stud
22	Shelf, Snack Pan
24	Window, Meat Pan
25	WP3400806 Whirlpool Screw
26	Roller
27	Eyelet, Roller
28	Screw
29	Cap, Crisper Pan (Left Side)
29	Cap, Crisper Pan (Right Side)
30	Window, Snack Pan
31	Can Caddy
