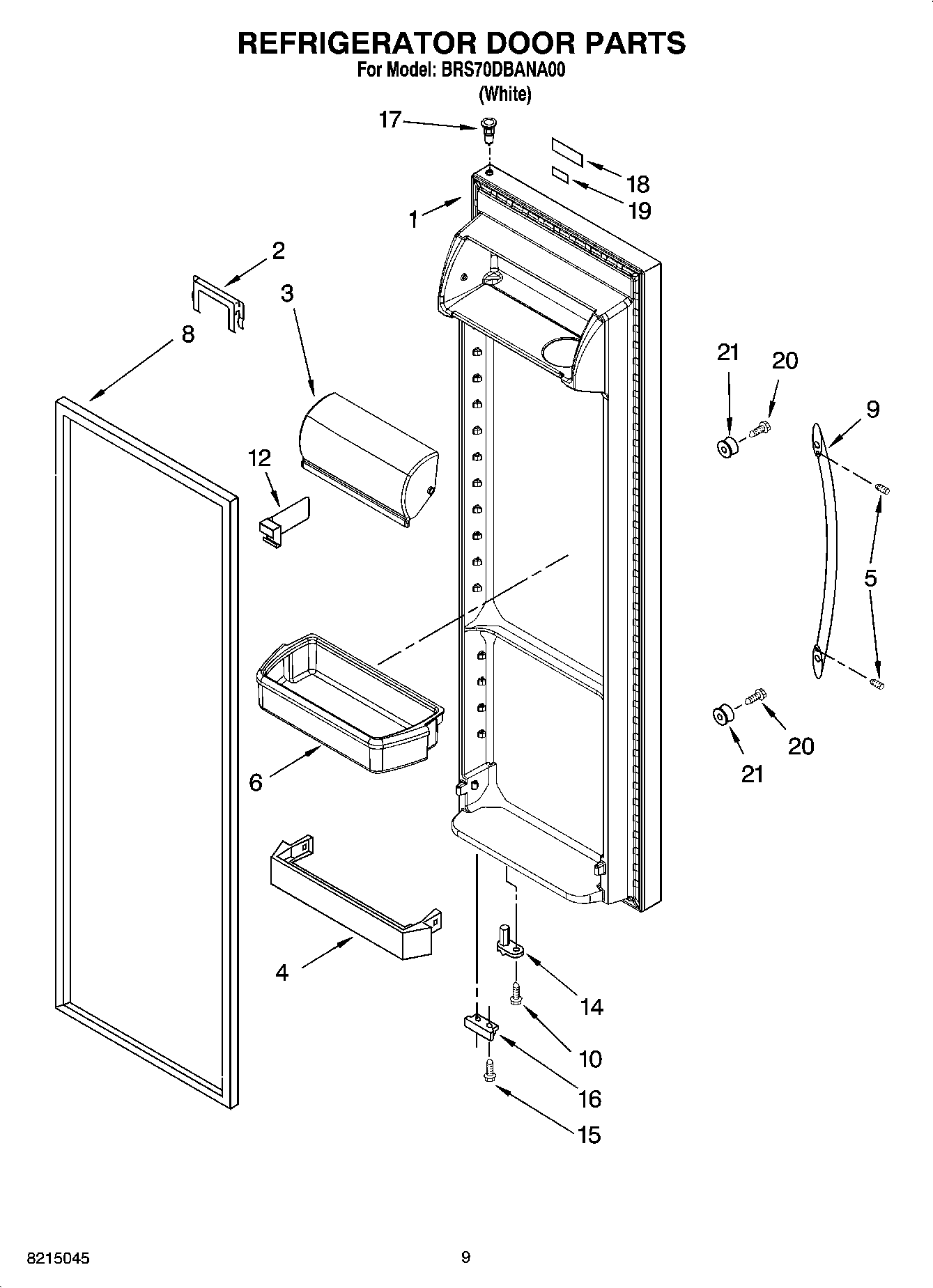

BRS70DBANA00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2318736 Whirlpool Refrigerator Door Trim
5	SCREW
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
8	2159075 Whirlpool Door Gasket Seal
9	WP2254600W Whirlpool Refrigerator Handle
10	Screw
12	Divider, Bin
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (White)
17	WP2182181 Whirlpool Refrigerator Thimble
18	Nameplate, Brastemp
19	Nameplate, Side-By-Side
20	Screw
21	WPW10170540 Whirlpool Screw
