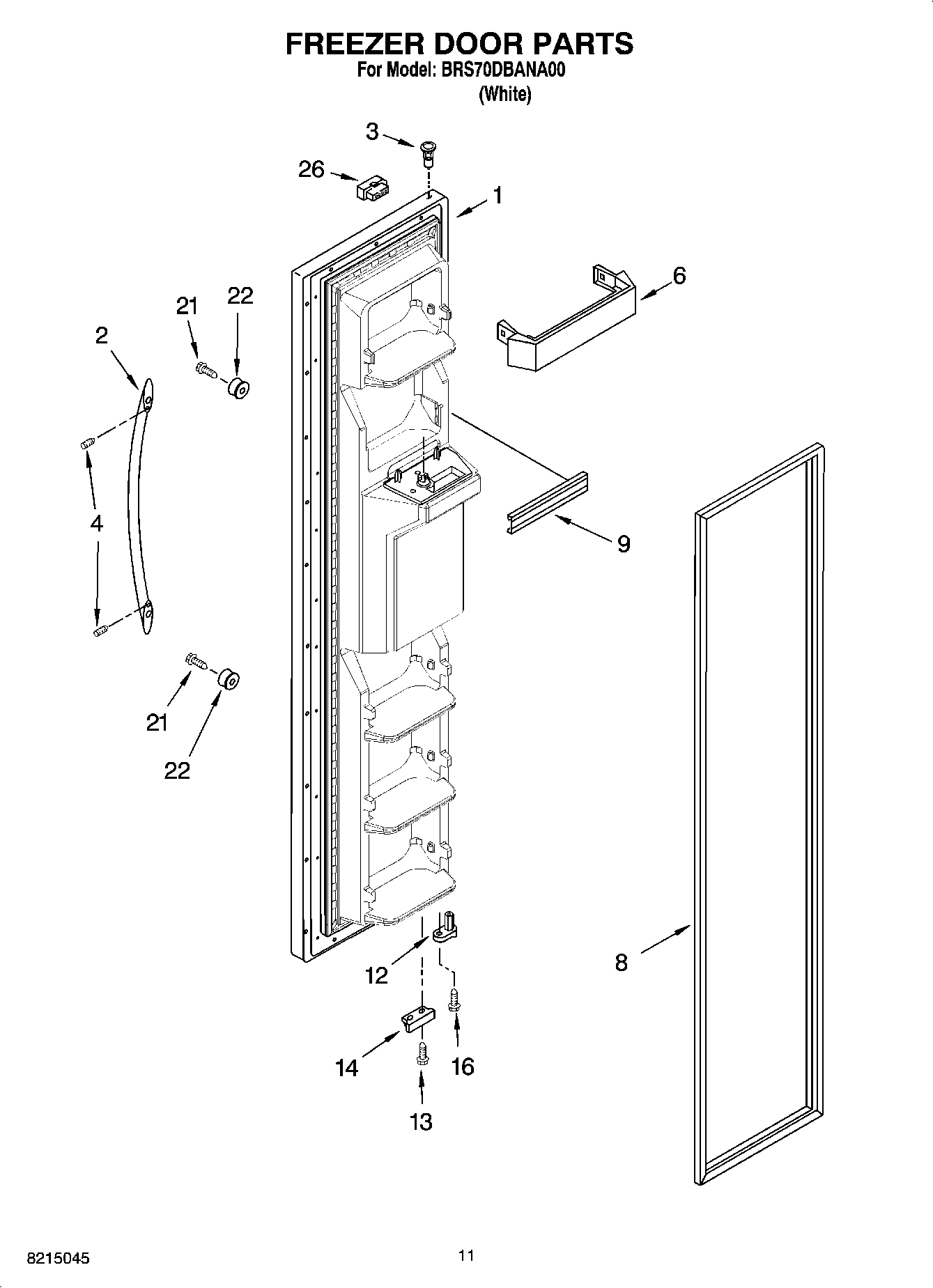

BRS70DBANA00 07 – FREEZER DOOR PARTS

BRS70DBANA00 07 – FREEZER DOOR PARTS

Written by

in

BRS70DBANA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts)
2WP2254600W Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
6Trivet (4)
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (White)
16Screw
21Screw
22WPW10170540 Whirlpool Screw
26WP2154473 Whirlpool Refrigerator Connector
