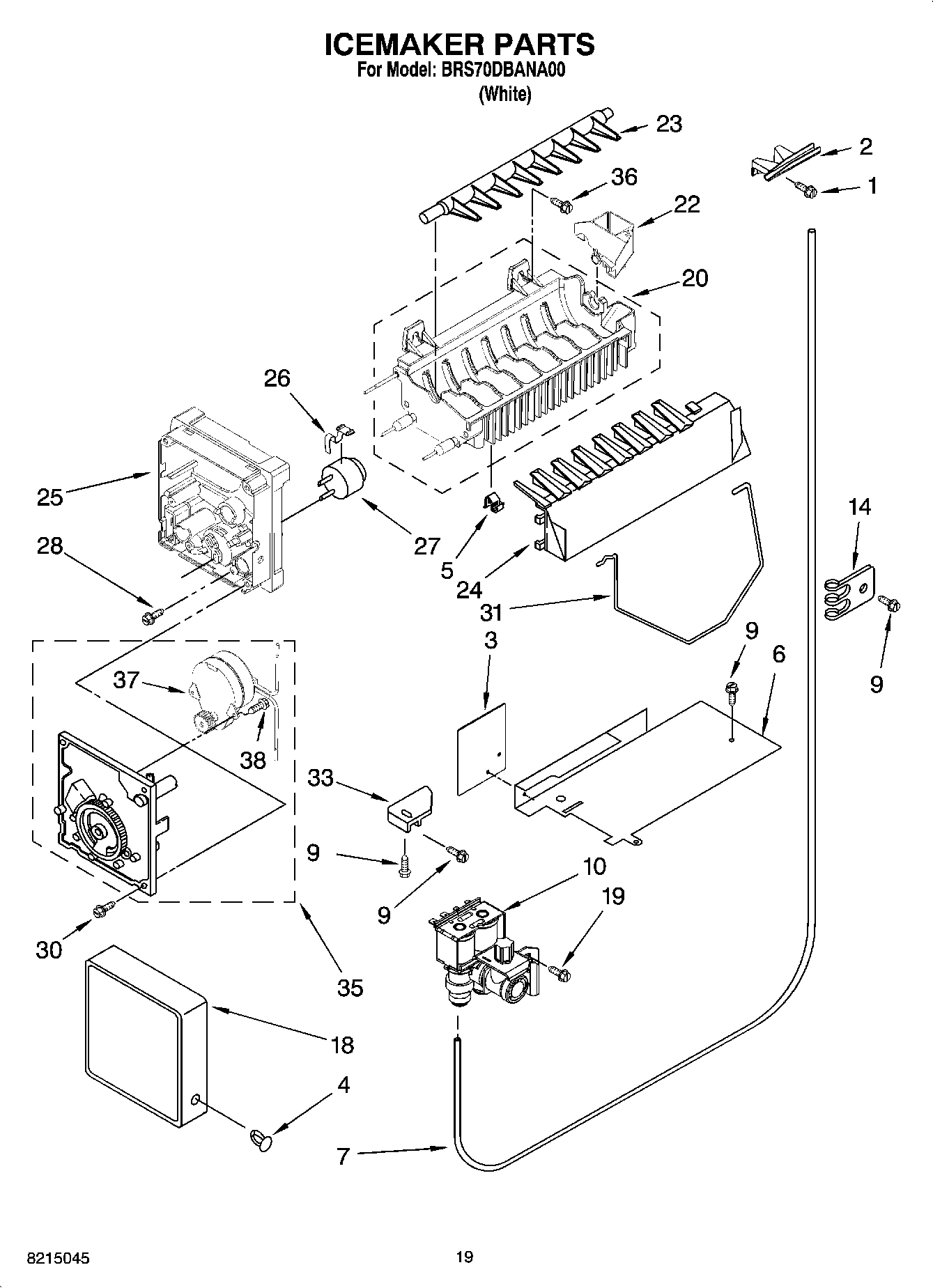

BRS70DBANA00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

BRS70DBANA00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

BRS70DBANA00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
Torx Key
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
212643 Whirlpool Refrigerator Permagum Sealer
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
WPL 799833
350942 Whirlpool Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Miscellaneous
TORX SCREW WRENCH
799344 Whirlpool Refrigerator Paint
2W11505385 Whirlpool Refrigerator Chute
32256178 Whirlpool Shield Assembly
4WP489115 Whirlpool Refrigerator Rivet
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
9WP489478 Whirlpool Refrigerator Screw
10W10853654 Whirlpool Water Inlet Valve
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
36WP488163 Whirlpool Refrigerator Screw
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
1004317943 Whirlpool Refrigerator Ice Maker Assembly
