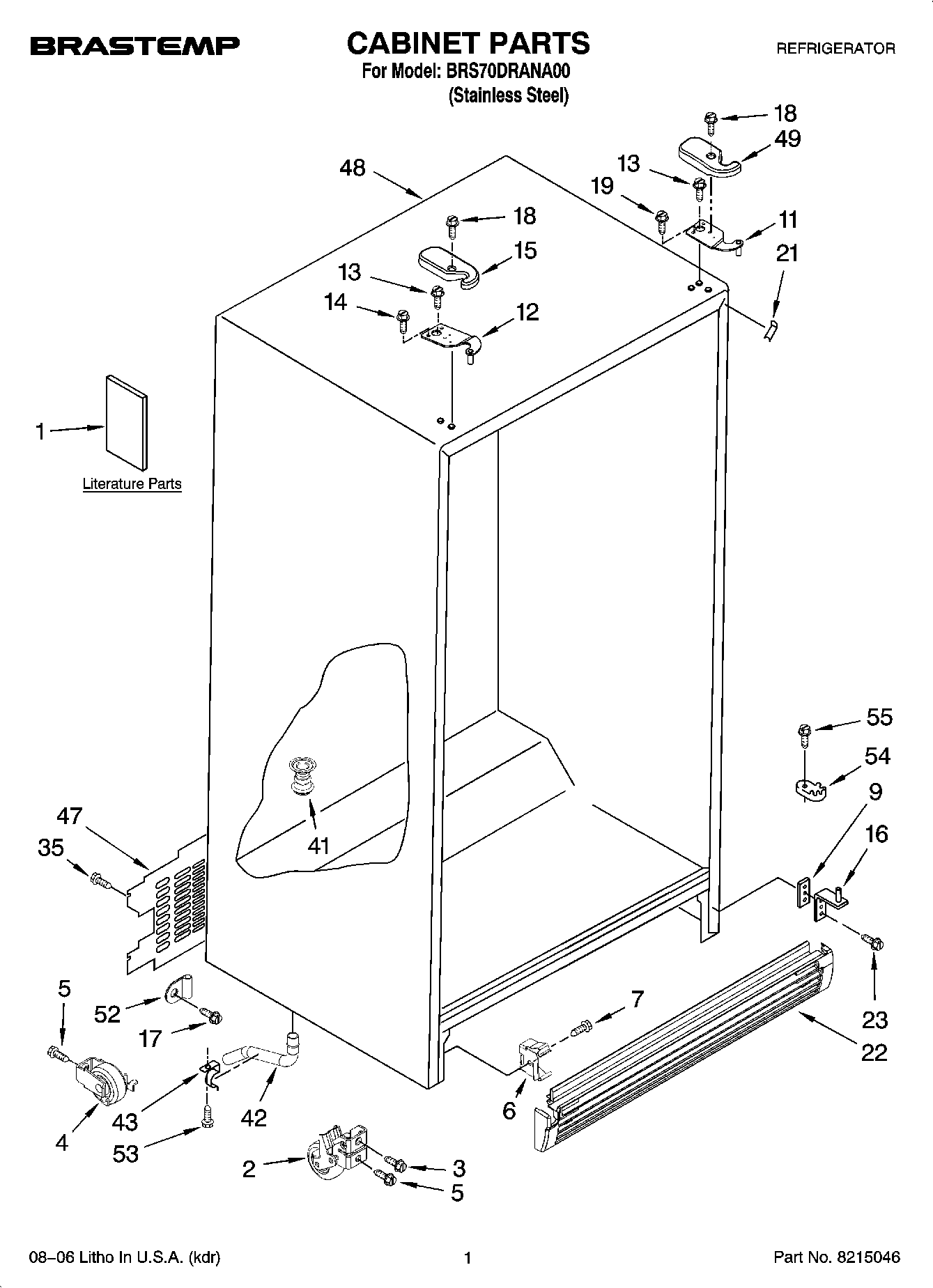

BRS70DRANA00 01 – CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Energy Guide
1	Modular Icemaker Service Sheet
1	Use & Care Guide
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
9	WP2181911 Whirlpool Refrigerator Shim
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP489497 Whirlpool Screw
15	2203407AP Whirlpool Refrigerator Cover
16	Hinge, Bottom (2)
17	W11693756 Whirlpool Screw Assembly
18	WP8281227 Whirlpool Screw
19	W10853301 Whirlpool Refrigerator Screw
21	Filler, Wrapper (Apollo Gray)
22	2198470AP Whirlpool Refrigerator Grille
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet, (Not A Serviceable Part)
49	2203408AP Whirlpool Refrigerator Cover
52	W10833902 Whirlpool Refrigerator Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
