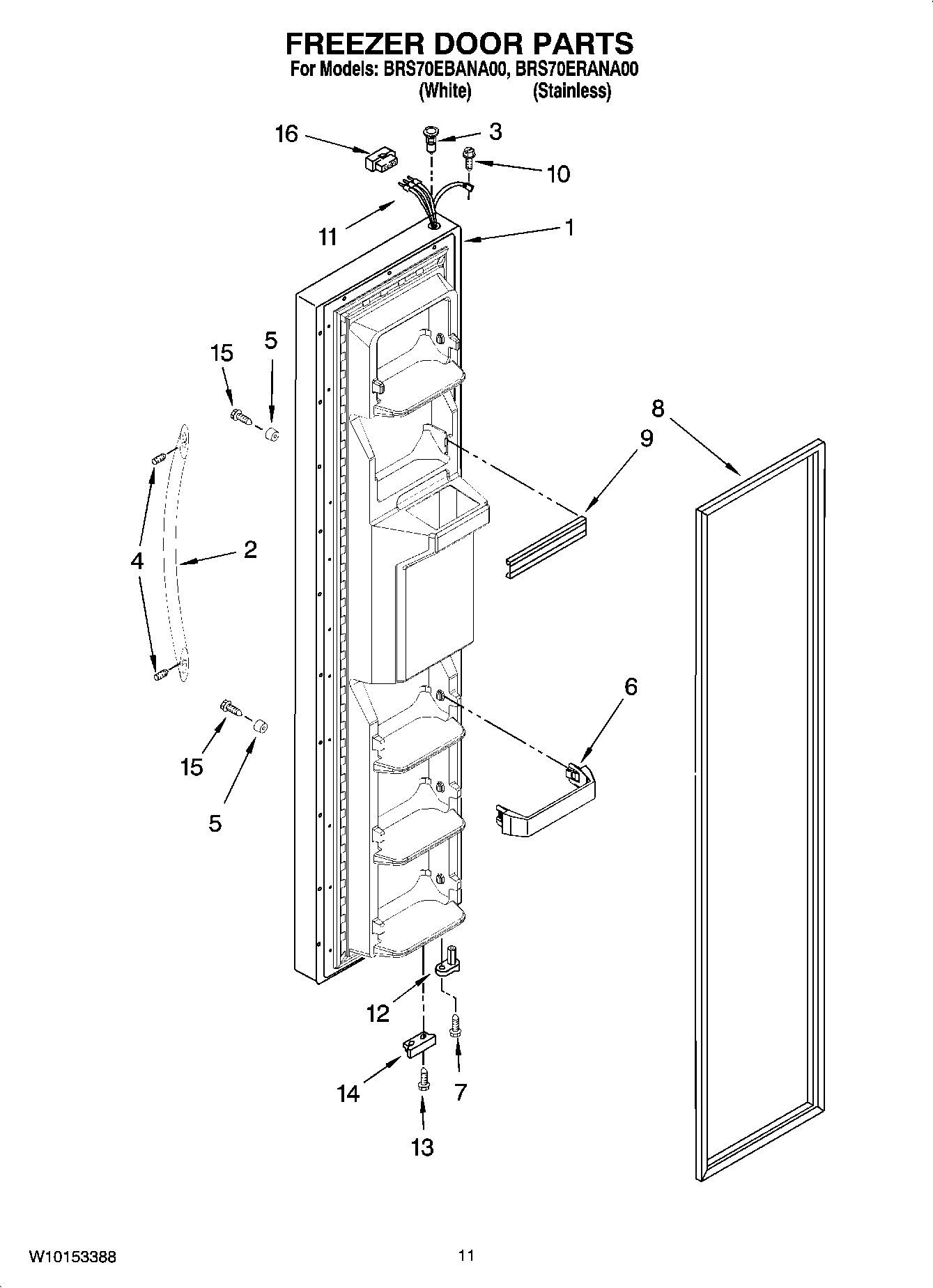

BRS70EBANA00 07 – FREEZER DOOR PARTS

BRS70EBANA00 07 – FREEZER DOOR PARTS

Written by

in

BRS70EBANA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
22254608S Whirlpool Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WPW10170540 Whirlpool Screw
6WP2171157 Whirlpool Shelf Trim
7Screw
82159074 Whirlpool Door Gasket Seal
8W10136735 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Apollo Grey)
14Bracket, Door Stop (White)
15Screw
16WP2154473 Whirlpool Refrigerator Connector
