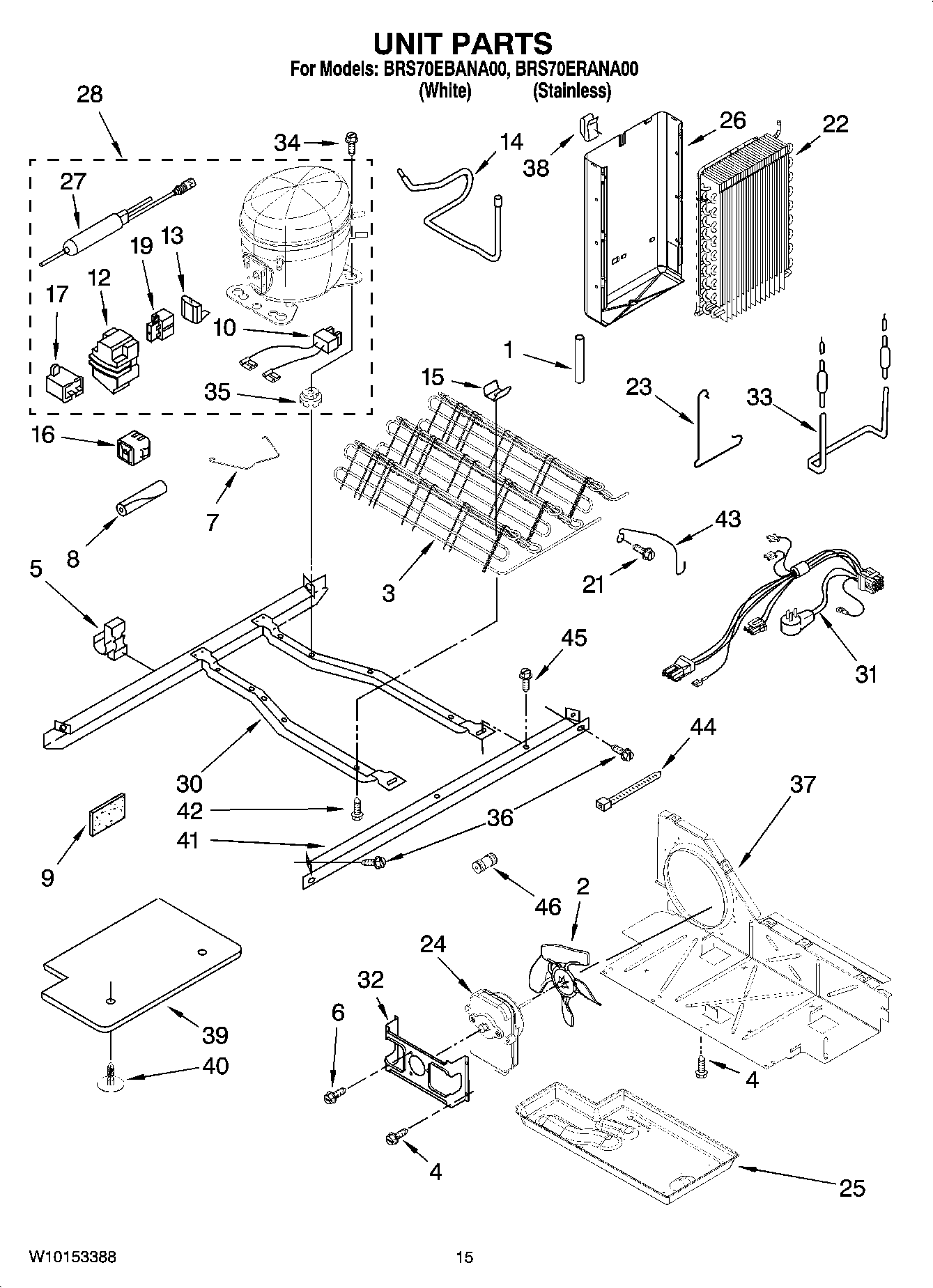

BRS70EBANA00 09 – UNIT PARTS

BRS70EBANA00 09 – UNIT PARTS

Written by

in

BRS70EBANA00 09 – UNIT PARTS

Products

PositionProduct
VALVE, ACCESS (1/2“)
WPL ARI20902A6
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following
VALVE, ACCESS (5/8“)
1Bushing, Compressor
2W11458267 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire & Tube
68281160 Whirlpool Screw
72223314 Whirlpool Refrigerator Clip
8SLEEVE
9W11553819 Whirlpool Refrigerator Insulation
10WP2172890 Whirlpool Refrigerator Wire
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2154697 Whirlpool Refrigerator Overload
14WP2205765 Whirlpool Refrigerator Tube
15W10683556 Whirlpool Refrigerator Clip
16WP2304885 Whirlpool Refrigerator Start Device
17WPW10662129 Whirlpool Refrigerator Run Capacitor
19W10920279 Whirlpool Refrigerator Start Relay
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
27WPW10143759 Whirlpool Dryer Filter
28W10139460 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
31WP2187782 Whirlpool Wire Harness
32WP2181929 Whirlpool Refrigerator Bracket
33Heater, Defrost
35WP4387558 Whirlpool Refrigerator Compressor Grommet
35876811 Whirlpool Grommet
36489340 Whirlpool Refrigerator Screw
37W10896764 Whirlpool Refrigerator Air Baffle
38Clip, Heat Shield
39Unit Cover, Bottom
40489396 Whirlpool Refrigerator Clip
412305374 Whirlpool Refrigerator Unit Rail
42W11544659 Whirlpool Refrigerator Screw
432260517 Whirlpool Fan Guard
44WPW10339879 Whirlpool Wire Tie
45WP489427 Whirlpool Refrigerator Screw
46WP4373559 Whirlpool Fitting
