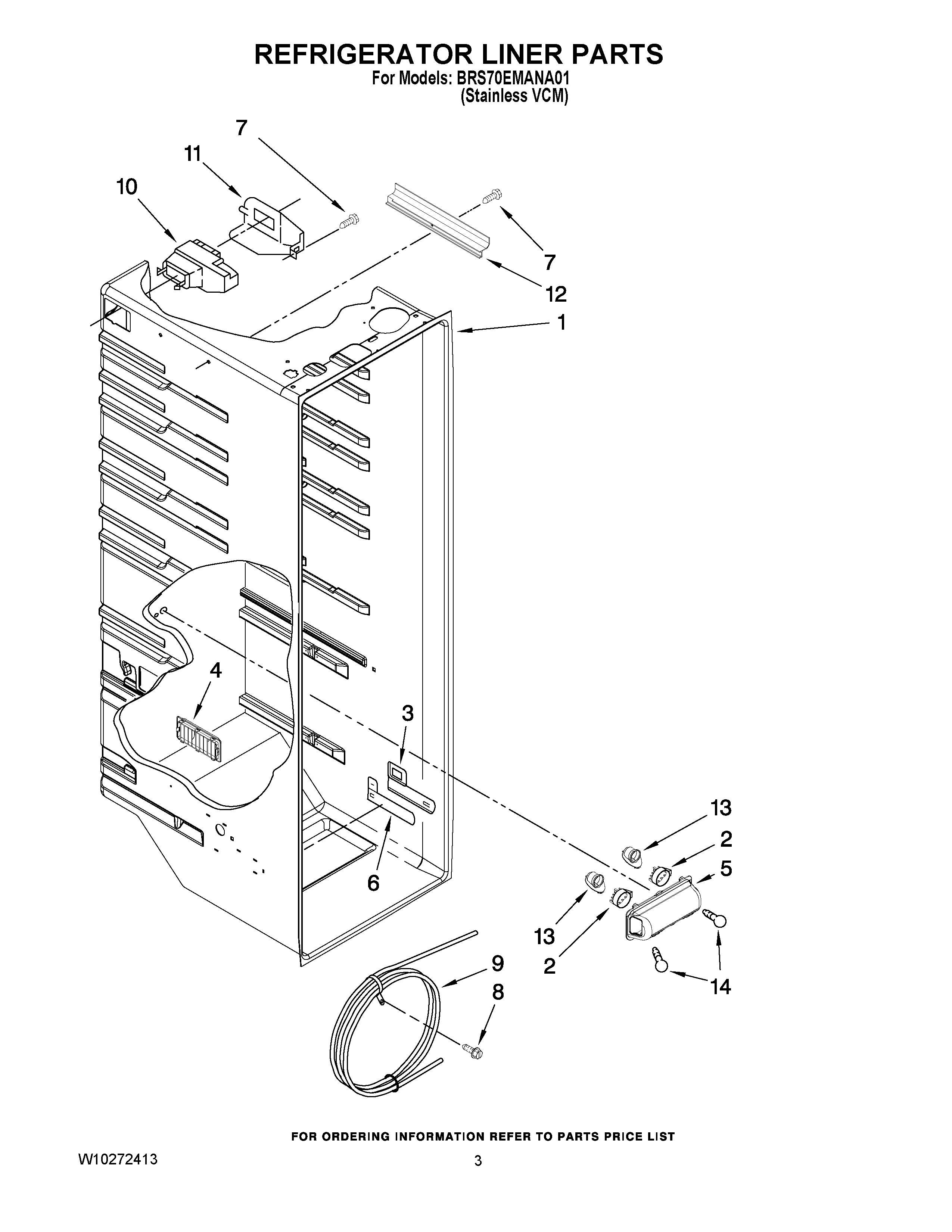

BRS70EMANA01 02 – REFRIGERATOR LINER PARTS

BRS70EMANA01 02 – REFRIGERATOR LINER PARTS

Written by

in

BRS70EMANA01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2175210 Whirlpool Refrigerator Shroud
3W10175967 Whirlpool Refrigerator Escutcheon
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
62182757 Whirlpool Refrigerator Slide
7W10759522 Whirlpool Screw
9WP2256126 Whirlpool Refrigerator Reservoir
10WPW10151374 Whirlpool Refrigerator Diffuser
112152019 Whirlpool Refrigerator Cover
122150331 Whirlpool Refrigerator Wire Cover
134387478 Whirlpool Refrigerator Light Socket
14RANGE ONLY 40W 120V APPL BULB
