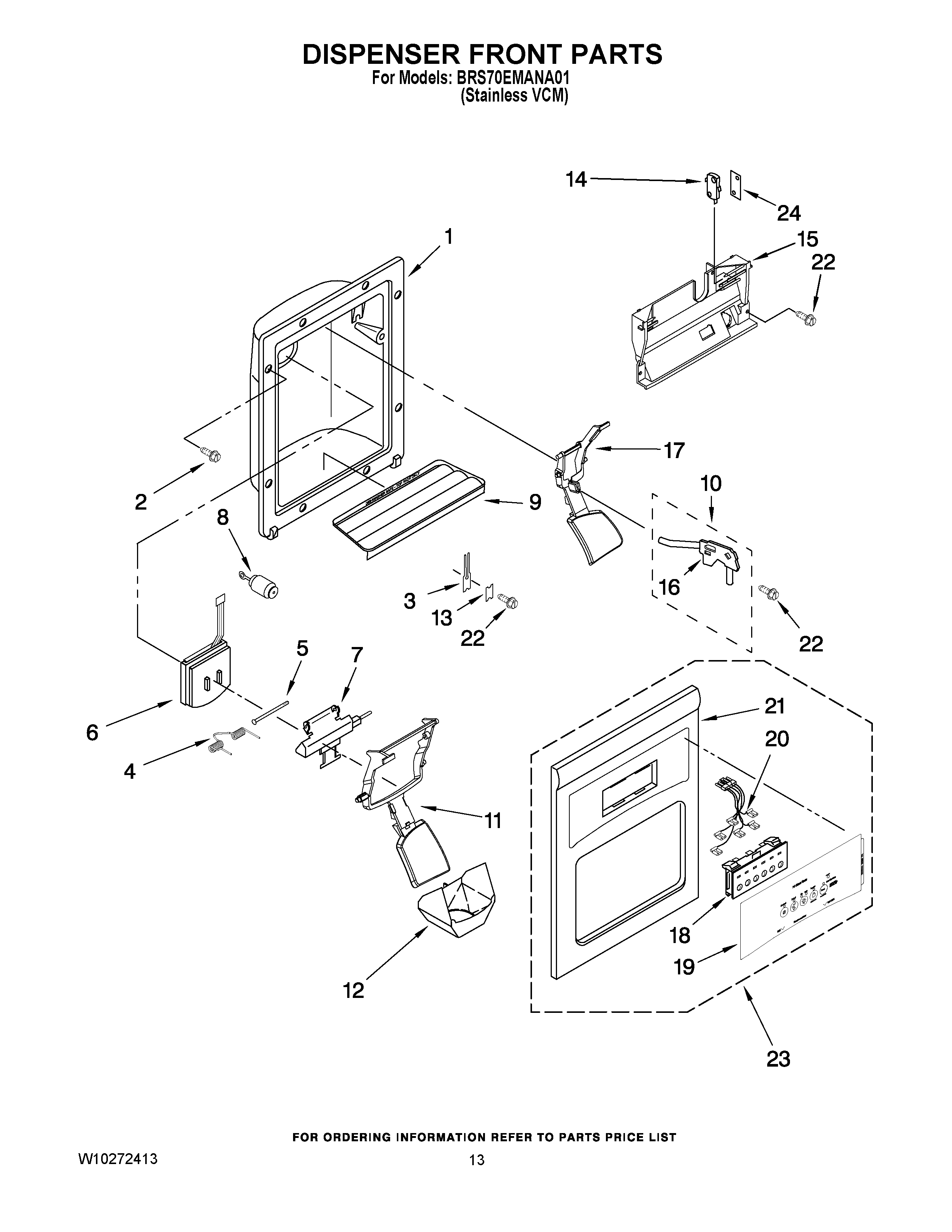

BRS70EMANA01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	W11245710 Whirlpool Refrigerator Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	W11106297 Whirlpool Refrigerator Grille
10	Water Fitting (Includes Water Tube)
11	Lever, Ice Dispenser (Apollo Gray)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	WP2195051 Whirlpool Refrigerator Clip
14	WP2162361 Whirlpool Switch
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP2304673 Whirlpool Refrigerator Bracket
17	WP2255432AP Whirlpool Refrigerator Dispenser Arm
18	WP2180236 Whirlpool Refrigerator Switch
19	Overlay, Front Cover (Not Available- Order No.23)
20	W10281339 Whirlpool Wire Harness
21	Front, Cover Housing (Not Available, Order No.23)
22	Screw
23	W10139517 Whirlpool Front Cover
24	Spacer, Switch (2)
