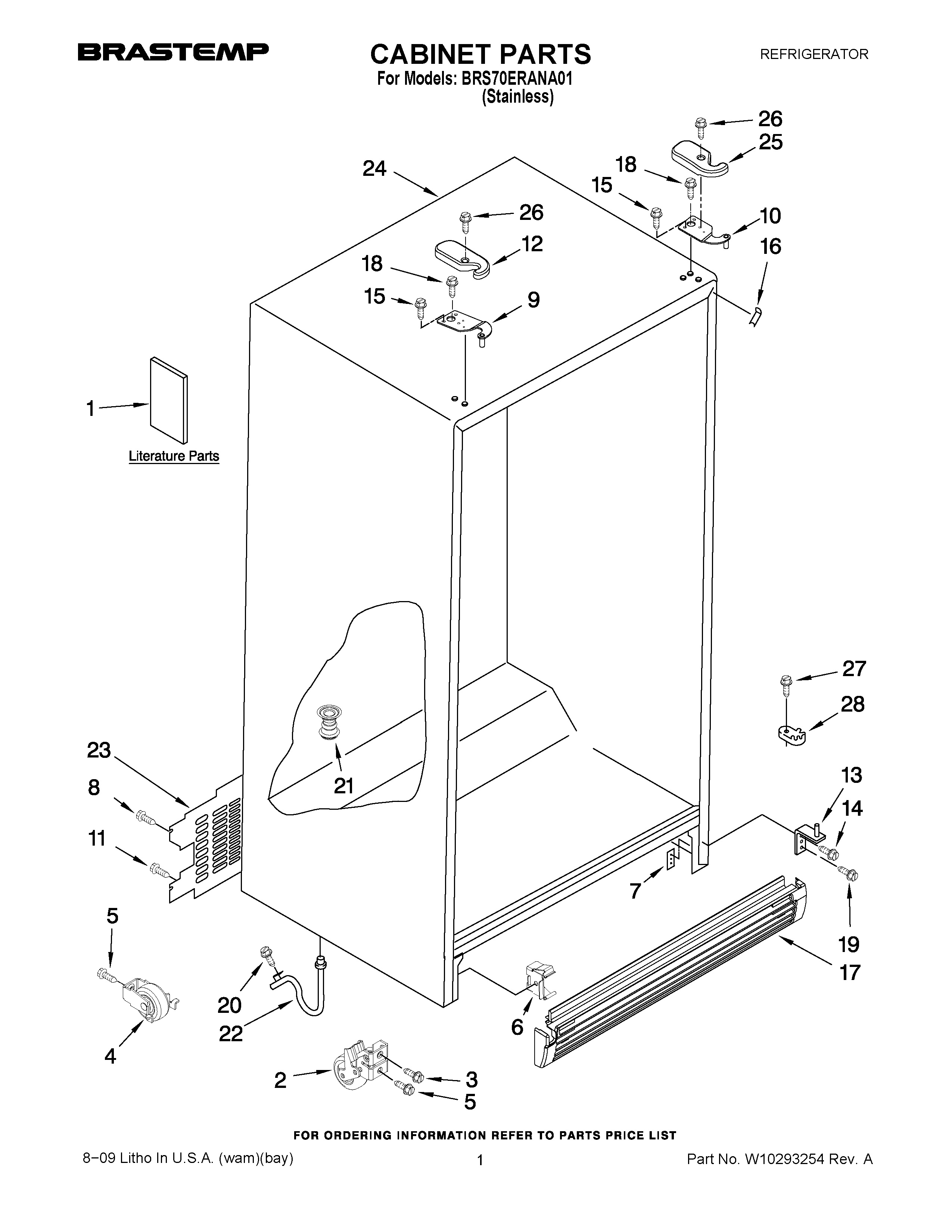

BRS70ERANA01 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP488488 Whirlpool Refrigerator Screw
9	WP2203770 Whirlpool Refrigerator Door Hinge
10	WP2203771 Whirlpool Refrigerator Door Hinge
12	2203407AP Whirlpool Refrigerator Cover
13	Hinge Bottom (2)
15	W10853301 Whirlpool Refrigerator Screw
16	W10851579 Whirlpool Refrigerator Filler
17	2198470AP Whirlpool Refrigerator Grille
18	WP489497 Whirlpool Screw
19	W10856122 Whirlpool Refrigerator Screw
20	WP489464 Whirlpool Refrigerator Screw
21	W11566763 Whirlpool Fitting
22	W11512417 Whirlpool Drain Connector
23	Cover, Unit
24	CABINET (NOT A SERVICEABLE PART)
25	2203408AP Whirlpool Refrigerator Cover
26	WP8281227 Whirlpool Screw
27	WP489483 Whirlpool Screw
28	WPW10329686 Whirlpool Door Cam Black
