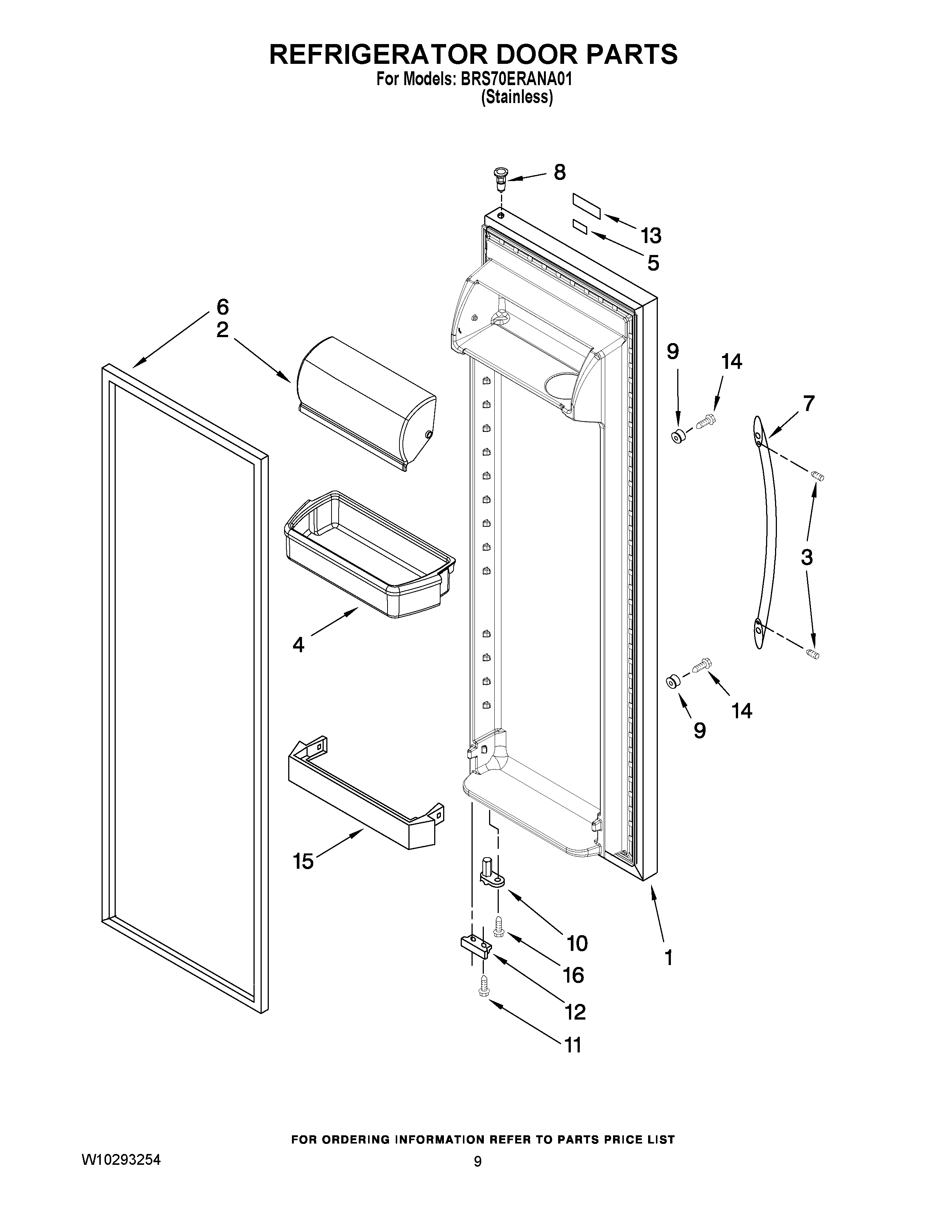

BRS70ERANA01 06 – REFRIGERATOR DOOR PARTS

BRS70ERANA01 06 – REFRIGERATOR DOOR PARTS

Written by

in

BRS70ERANA01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS)
2WP2256101 Whirlpool Dairy Door
3SCREW
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5Nameplate, Side-By-Side
6WPW10136734 Whirlpool Refrigerator Door Gasket
72254608S Whirlpool Handle
8WP2182181 Whirlpool Refrigerator Thimble
9WPW10170540 Whirlpool Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Apollo Grey)
13Nameplate, Brastemp
14Screw
15WP2309941 Whirlpool Refrigerator Door Bar Trim
16Screw
