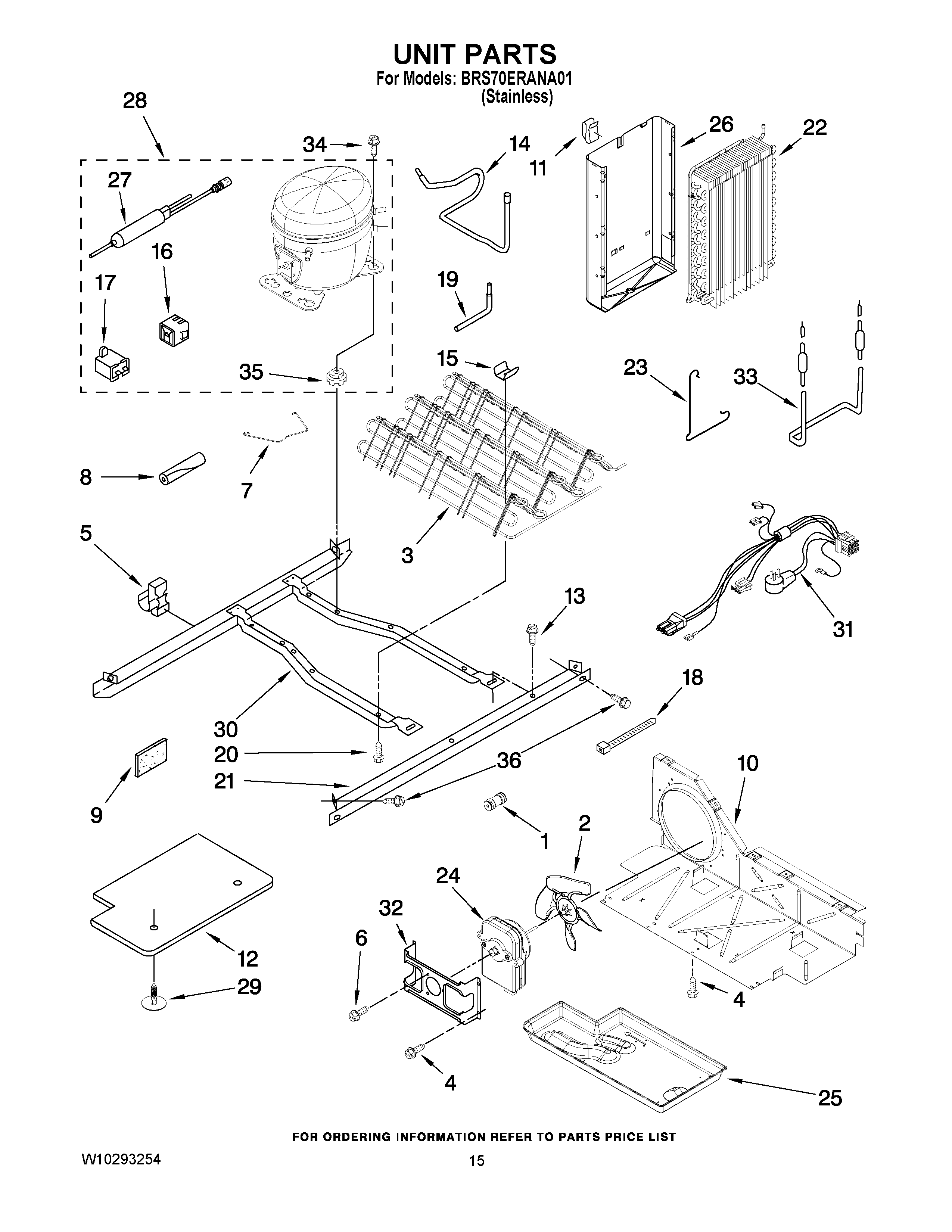

BRS70ERANA01 09 – UNIT PARTS

BRS70ERANA01 09 – UNIT PARTS

Written by

in

BRS70ERANA01 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WP4373559 Whirlpool Fitting
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	2223313 Whirlpool Clip
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	Air Baffle
11	Clip, Heat Shield
12	Unit Cover, Bottom
13	WP489427 Whirlpool Refrigerator Screw
14	WP2205765 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WP2304885 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WPW10339879 Whirlpool Wire Tie
19	W10858105 Whirlpool Refrigerator Tube
20	W11544659 Whirlpool Refrigerator Screw
21	WPW10196323 Whirlpool Refrigerator Rail Assembly
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	W10194475 Whirlpool Refrigerator Shield
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
29	489396 Whirlpool Refrigerator Clip
30	W10196321 Whirlpool Refrigerator Frame
31	WP2187782 Whirlpool Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	Heater, Defrost
35	876811 Whirlpool Grommet
35	WP4387558 Whirlpool Refrigerator Compressor Grommet
36	489340 Whirlpool Refrigerator Screw
