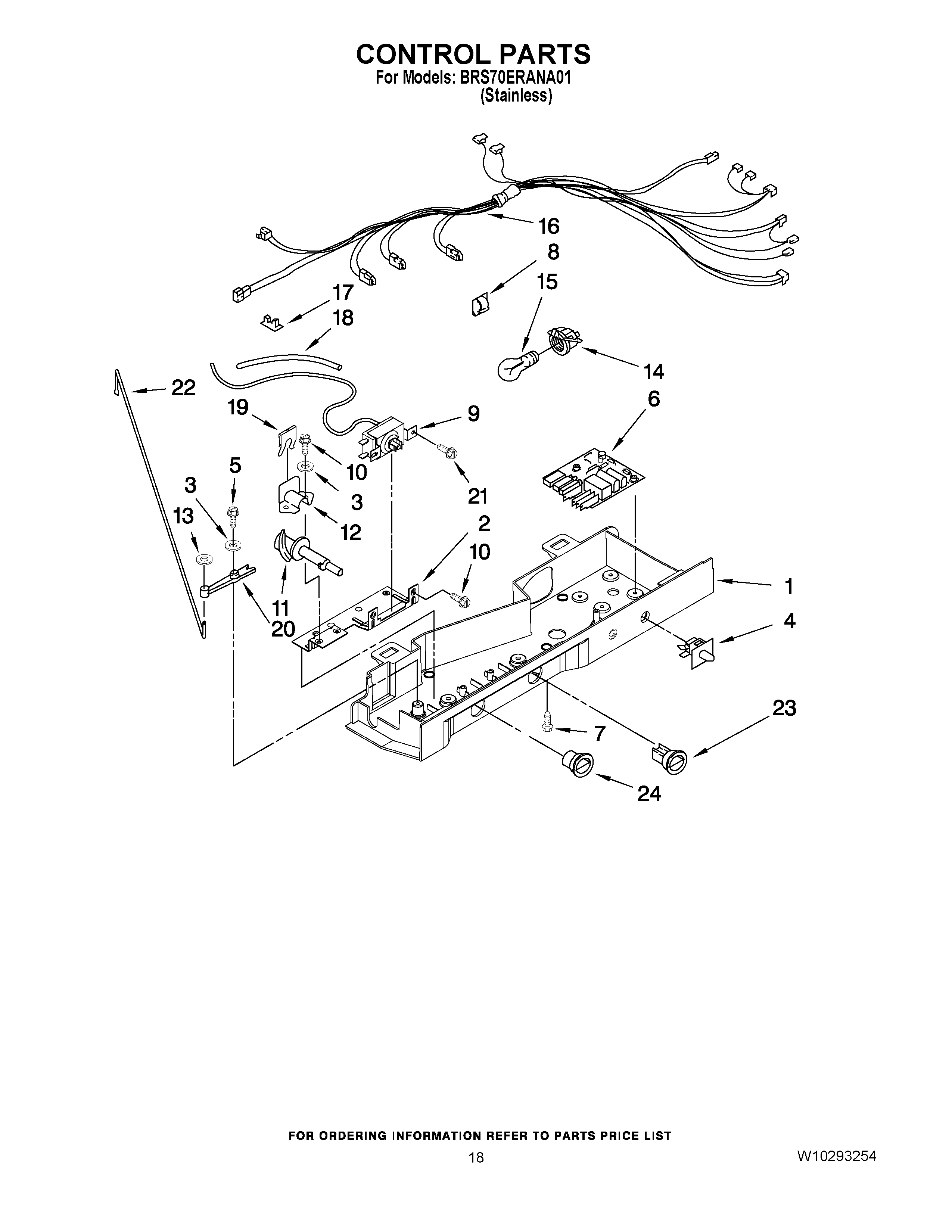

BRS70ERANA01 11 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	489203 Whirlpool Refrigerator Washer
4	WP2149705 Whirlpool Refrigerator Door Switch
5	627068 Whirlpool Refrigerator Screw
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
8	WP1115374 Whirlpool Refrigerator Clip
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP3196557 Whirlpool Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	Fastener, Push-On
14	4387478 Whirlpool Refrigerator Light Socket
15	RANGE ONLY 40W 120V APPL BULB
16	2311633 Whirlpool Refrigerator Wire Harness
17	CLIP, WIRING
18	WP2196003 Whirlpool Refrigerator Bar Riser
19	WP2196062 Whirlpool Refrigerator Clip
20	Pivot Arm
21	WP965173 Whirlpool Dishwasher Screw
22	2311631 Whirlpool Refrigerator Rod
23	W10723843 Whirlpool Refrigerator Thermostat Knob
24	2311615 Whirlpool Refrigerator Knob
