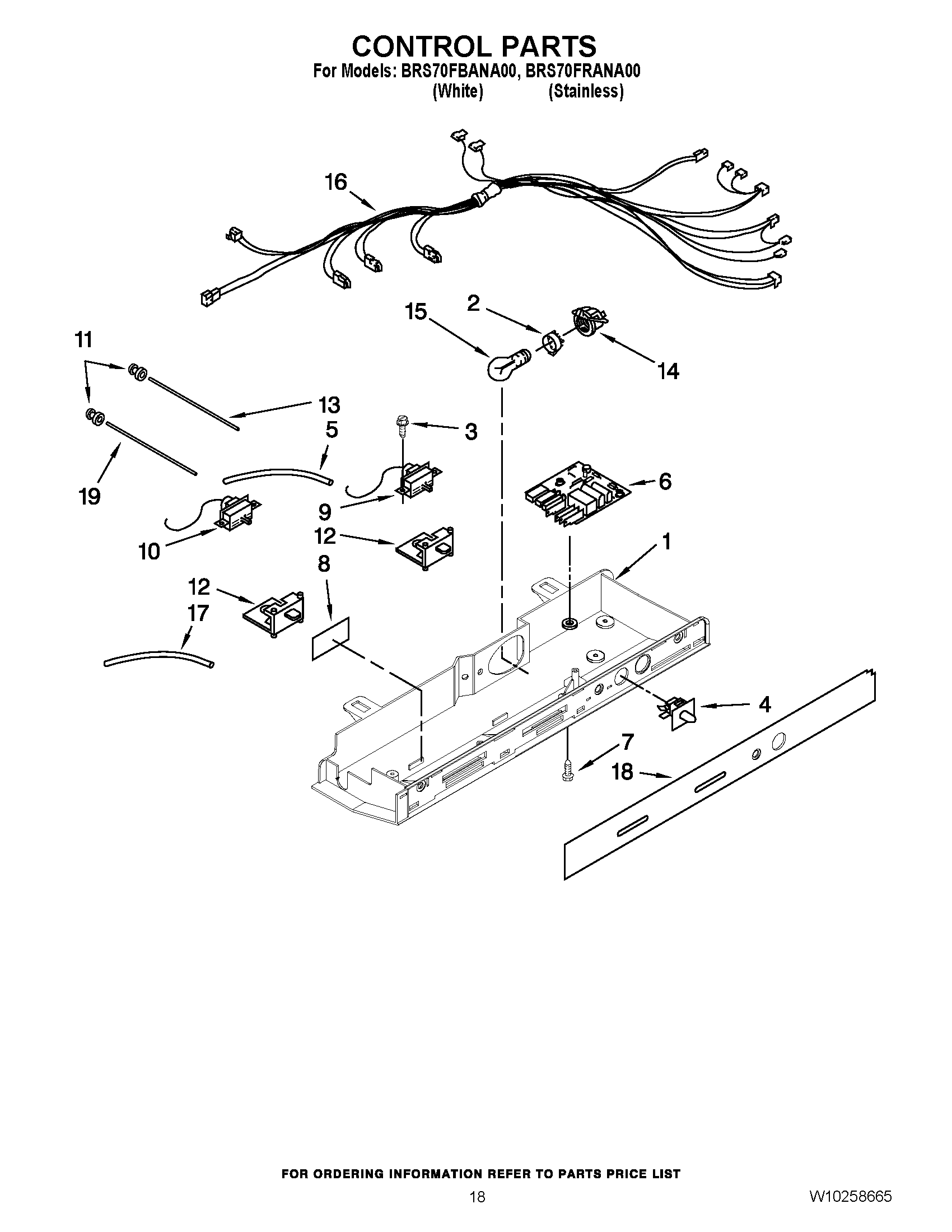

BRS70FBANA00 11 – CONTROL PARTS

BRS70FBANA00 11 – CONTROL PARTS

Written by

in

BRS70FBANA00 11 – CONTROL PARTS

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2WP2175210 Whirlpool Refrigerator Shroud
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7489392 Whirlpool Refrigerator Screw
82172940 Whirlpool Window
9WPW10320574 Whirlpool Thermostat
10WP2321289 Whirlpool Refrigerator Thermostat
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
13Fiber Optic
144387478 Whirlpool Refrigerator Light Socket
15RANGE ONLY 40W 120V APPL BULB
162310117 Whirlpool Wire Harness
17WP2196003 Whirlpool Refrigerator Bar Riser
18COVER CONTROL FRONT
19Light Bar (FC)
