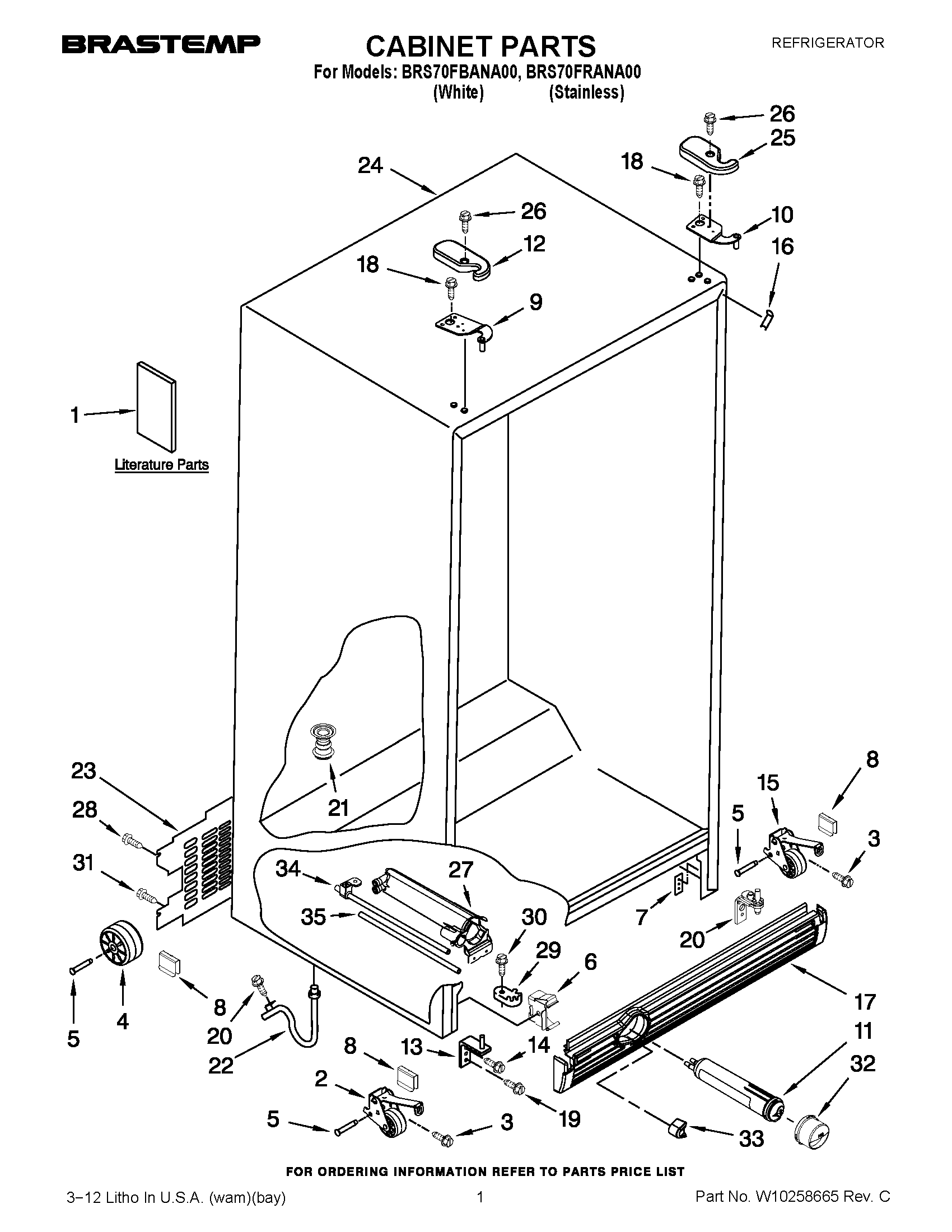

BRS70FRANA00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRIN SHEET
1	Modular Icemaker Service Sheet
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP2174706 Whirlpool Refrigerator Pin Hitch
9	HINGE TOP (FC)
10	HINGE TOP (RC)
11	FILTER 3-SINGLE TEAL
12	Hinge Cover (RC) (Apollo Grey)
12	Hinge Cover (RC) (White)
13	HINGE BOTTOM FC
15	WPW10304659 Whirlpool Wheel Assembly
16	W10851579 Whirlpool Refrigerator Filler
16	WPW10283959 Whirlpool Refrigerator Filler
17	WPW10184890 Whirlpool Refrigerator Grille
17	WPW10311032 Whirlpool Refrigerator Grille
18	WP489497 Whirlpool Screw
19	W10856122 Whirlpool Refrigerator Screw
20	W10400808 Whirlpool Door Hinge
21	W11566763 Whirlpool Fitting
22	W11512417 Whirlpool Drain Connector
23	Cover, Unit
24	CABINET (NOT A SERVICEABLE PART)
25	Hinge Cover (FC) (Apollo Grey)
25	Hinge Cover (FC) (White)
26	WP489128 Whirlpool Refrigerator Screw
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	WP488488 Whirlpool Refrigerator Screw
29	WP2223751 Whirlpool Refrigerator Door Cam
30	WP489483 Whirlpool Screw
32	WP2260518MG Whirlpool Water Filter Cap
32	WP2260518W Whirlpool Refrigerator Filter Cap
33	2260503MG Whirlpool Refrigerator Button
33	2260503W Whirlpool Refrigerator Button
34	TUBE, FILTER INLET
35	WPW10350006 Whirlpool Refrigerator Water Tube
