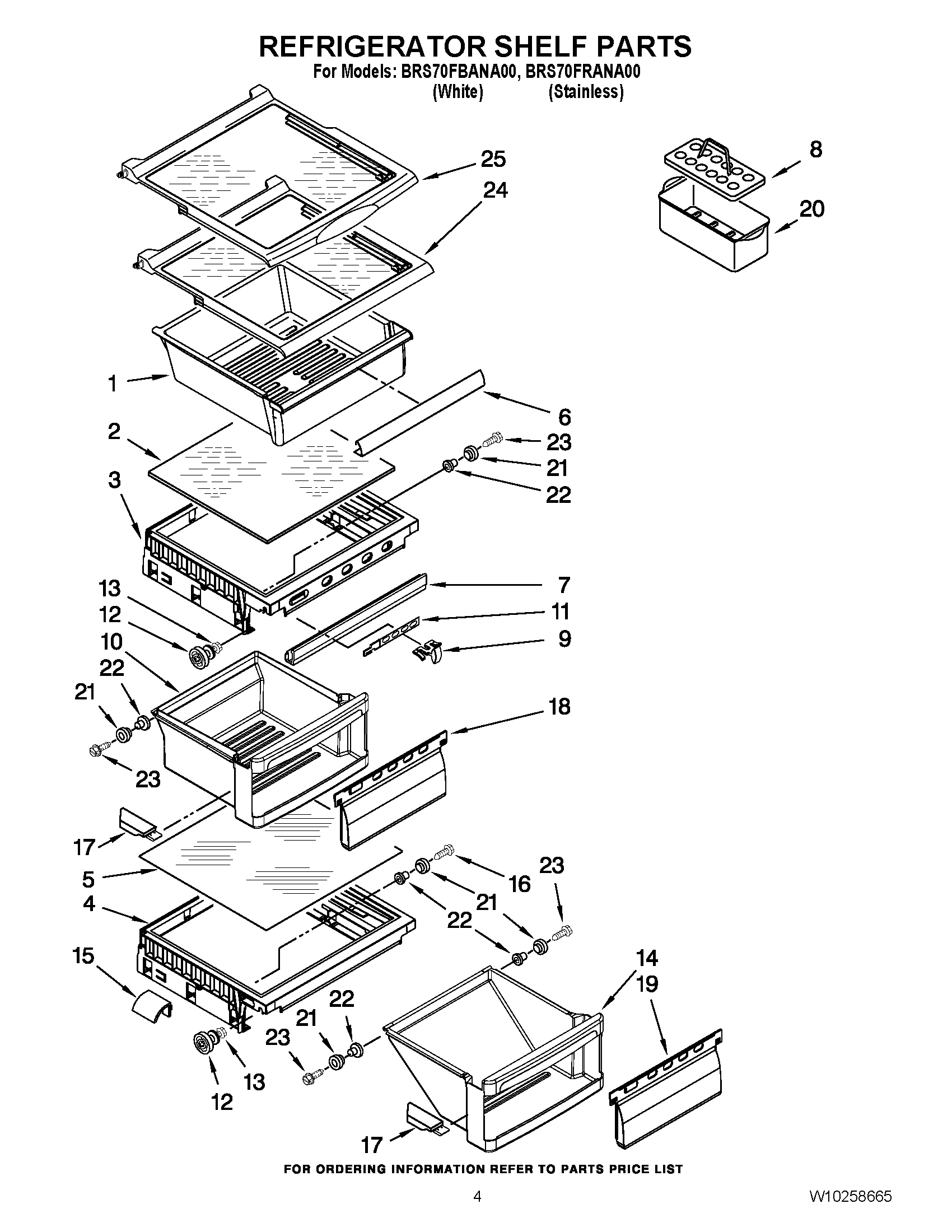

BRS70FRANA00 03 – REFRIGERATOR SHELF PARTS

BRS70FRANA00 03 – REFRIGERATOR SHELF PARTS

Written by

in

BRS70FRANA00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1PAN-SNACK
2Glass Cover
3Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
4WP2223357 Whirlpool Refrigerator Cover
5Glass Cover
6WP2179243 Whirlpool Refrigerator Pan Trim
7WP1125528 Whirlpool Refrigerator Gasket
8WP2177817 Whirlpool Refrigerator Egg Container
9Button, Humidity
10Crisper Pan Asm
112174252 Whirlpool Refrigerator Slide
12W11223328 Whirlpool Refrigerator Shelf Stud
13WP3-24004-109 Whirlpool Refrigerator Screw
14Meat Pan Assembly
152176095 Whirlpool Refrigerator Deflector
16WPW10272364 Whirlpool Refrigerator Screw
17Cap, Crisper Pan (Right Side)
172223285 Whirlpool Refrigerator Cap
18Window, Crisper
19Window, Meat Pan
20W10136387A Whirlpool Refrigerator Egg Container
21Roller
22Eyelet, Roller
23WP489261 Whirlpool Refrigerator Screw
24SHELF-GLASS
25SHELF-GLASS
