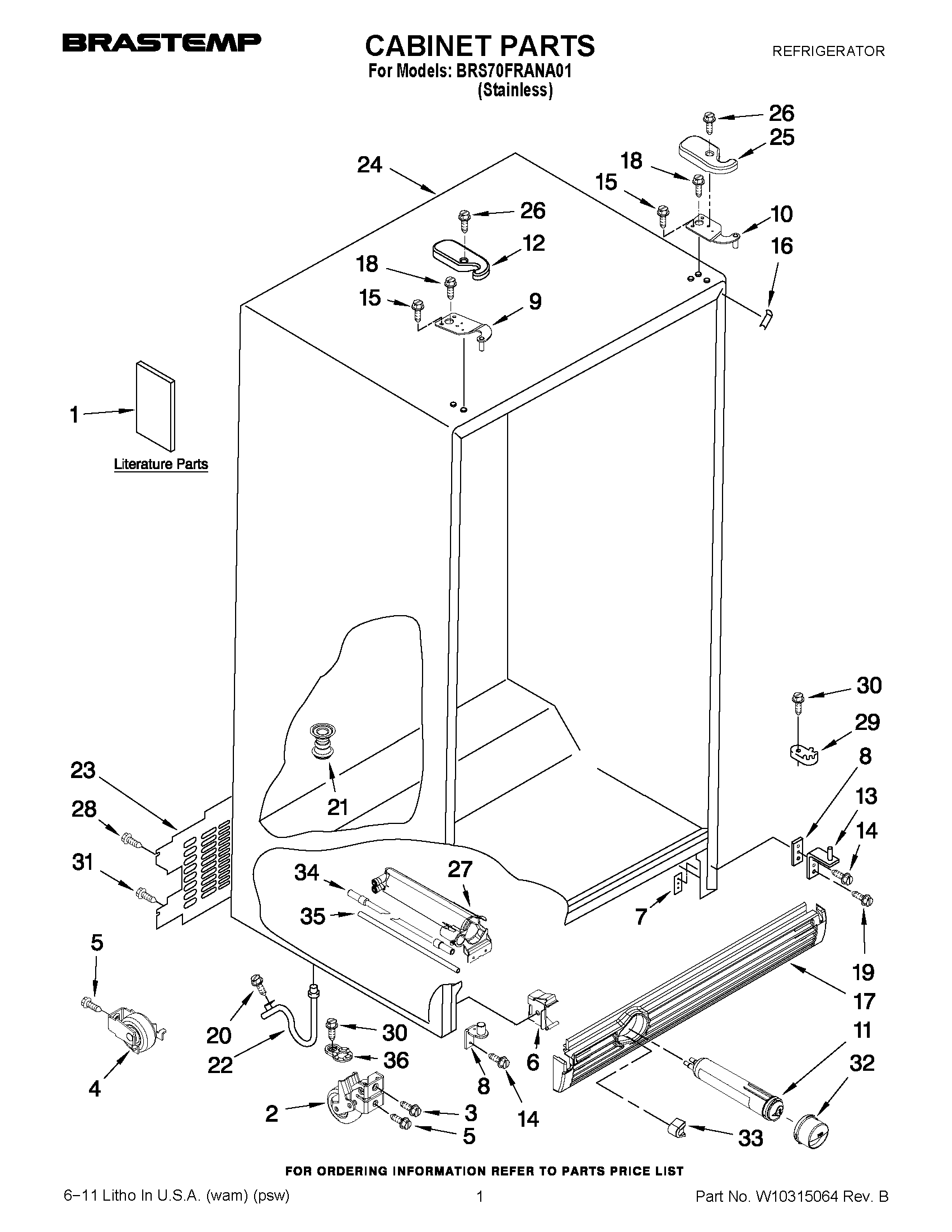

BRS70FRANA01 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	HINGE BOTTOM FC
9	WP2203770 Whirlpool Refrigerator Door Hinge
10	WP2203771 Whirlpool Refrigerator Door Hinge
11	FILTER 3-SINGLE TEAL
12	Hinge Cover (RC) (Apollo Grey)
13	HINGE BOTTOM RC
15	W10853301 Whirlpool Refrigerator Screw
16	W10851579 Whirlpool Refrigerator Filler
17	WPW10184890 Whirlpool Refrigerator Grille
18	WP489497 Whirlpool Screw
19	W10856122 Whirlpool Refrigerator Screw
20	WP489464 Whirlpool Refrigerator Screw
21	W11566763 Whirlpool Fitting
22	W11512417 Whirlpool Drain Connector
23	Cover, Unit
24	CABINET (NOT A SERVICEABLE PART)
25	Hinge Cover (FC) (Apollo Grey)
26	WP8281227 Whirlpool Screw
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	WP488488 Whirlpool Refrigerator Screw
29	WPW10329686 Whirlpool Door Cam Black
30	WP489483 Whirlpool Screw
32	WP2260518MG Whirlpool Water Filter Cap
33	2260503MG Whirlpool Refrigerator Button
34	TUBE, FILTER INLET
35	WPW10350006 Whirlpool Refrigerator Water Tube
36	WP2223751 Whirlpool Refrigerator Door Cam
