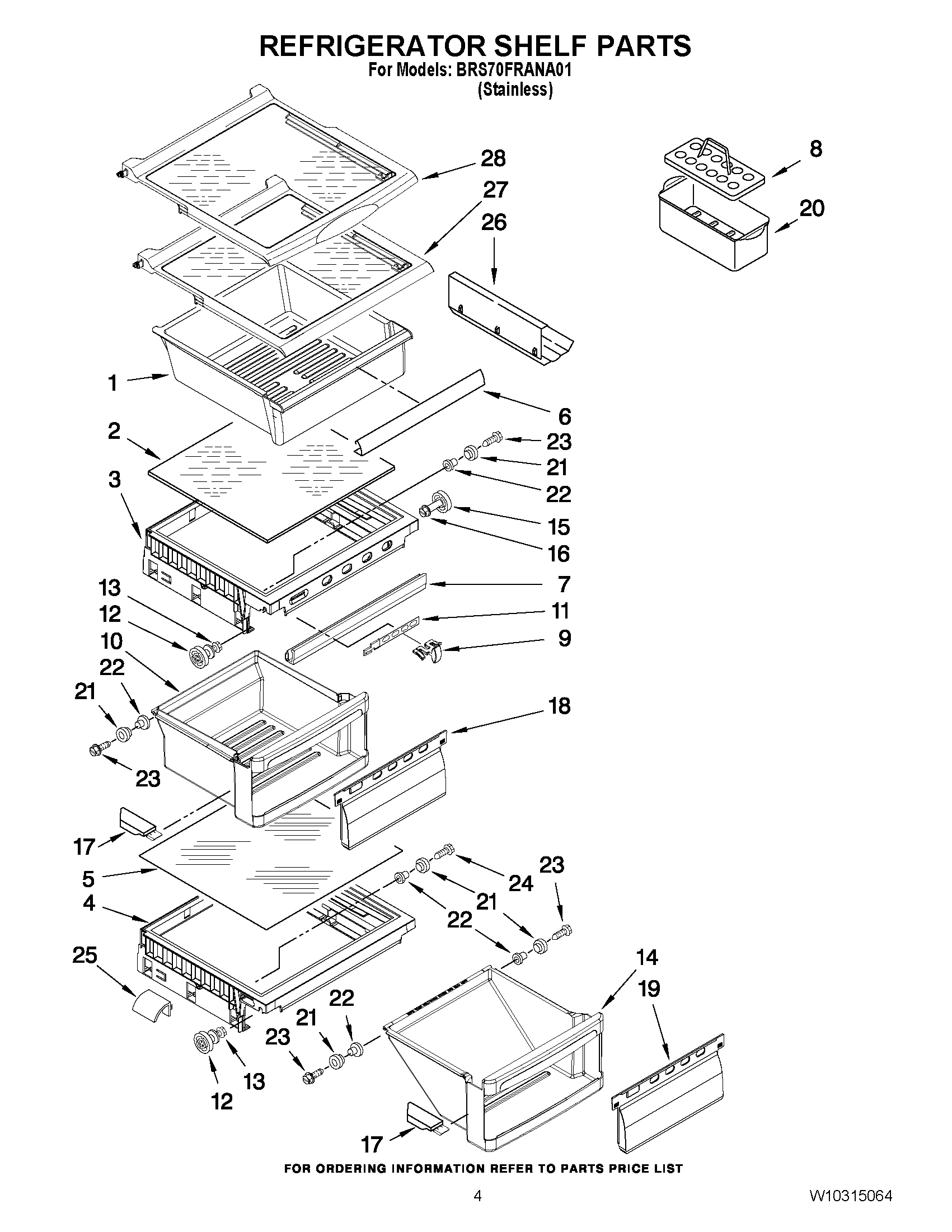

BRS70FRANA01 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	PAN-SNACK
2	Glass Cover
3	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
4	WP2223357 Whirlpool Refrigerator Cover
5	Glass Cover
6	WP2179243 Whirlpool Refrigerator Pan Trim
7	WP1125528 Whirlpool Refrigerator Gasket
8	WP2177817 Whirlpool Refrigerator Egg Container
9	Button, Humidity
10	Crisper Pan Asm
11	2174252 Whirlpool Refrigerator Slide
12	W11223328 Whirlpool Refrigerator Shelf Stud
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Meat Pan Assembly
15	W11527119 Whirlpool Refrigerator Shelf Stud
16	WPW10191952 Whirlpool Refrigerator Screw
17	2223285 Whirlpool Refrigerator Cap
17	Cap, Crisper Pan (Right Side)
18	Window, Crisper
19	Window, Meat Pan
20	W10136387A Whirlpool Refrigerator Egg Container
21	Roller
22	Eyelet, Roller
23	WP489261 Whirlpool Refrigerator Screw
24	WPW10272364 Whirlpool Refrigerator Screw
25	2176095 Whirlpool Refrigerator Deflector
26	W10777924 Whirlpool Refrigerator Wine Rack
27	SHELF-GLASS
28	SHELF-GLASS
