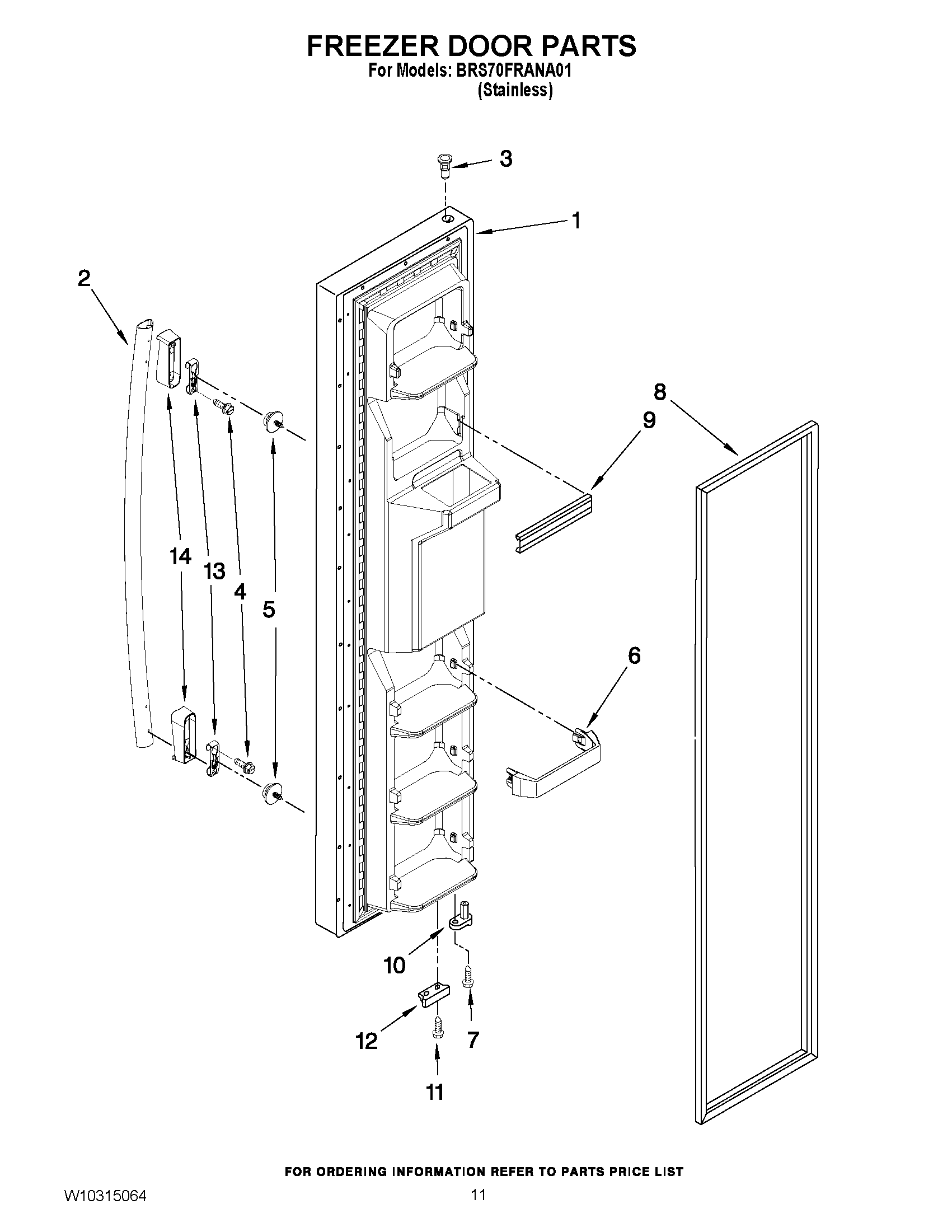

BRS70FRANA01 07 – FREEZER DOOR PARTS

BRS70FRANA01 07 – FREEZER DOOR PARTS

Written by

in

BRS70FRANA01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2WPW10257118K Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WP2255411 Whirlpool Refrigerator Clip
5WPW10288153 Whirlpool Refrigerator Screw
6WP2171157 Whirlpool Shelf Trim
7Screw
8W10136735 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10Door Closer, Upper Cam
11WP489483 Whirlpool Screw
12BRACKET, DOOR STOP
13W10267047 Whirlpool Screw
14End Cap (Apollo Grey)
