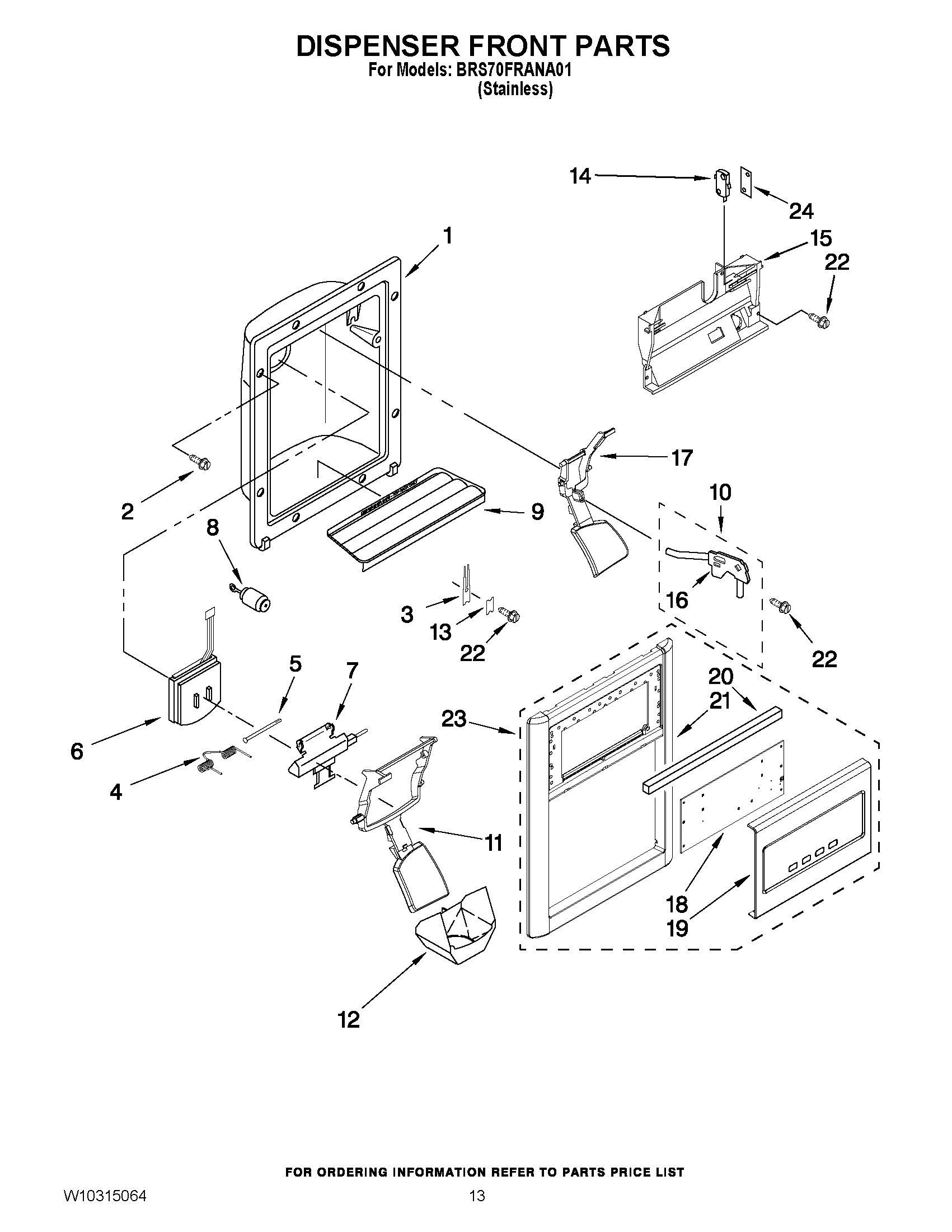

BRS70FRANA01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2W11245710 Whirlpool Refrigerator Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670B Whirlpool Dispenser Tray
10Water Fitting (Includes Water Tube)
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13WP2195051 Whirlpool Refrigerator Clip
14WP2162361 Whirlpool Switch
15W10728484 Whirlpool Refrigerator Dispenser Control Bracket
16WP2304673 Whirlpool Refrigerator Bracket
17WPW10152859 Whirlpool Refrigerator Dispenser Arm
21CABINET (NOT A SERVICEABLE PART)
22Screw
23WPW10289522 Whirlpool Front Cover
24Spacer, Switch (2)
