BRS70FRANA01 10 – AIR FLOW PARTS

BRS70FRANA01 10 – AIR FLOW PARTS

Written by

in

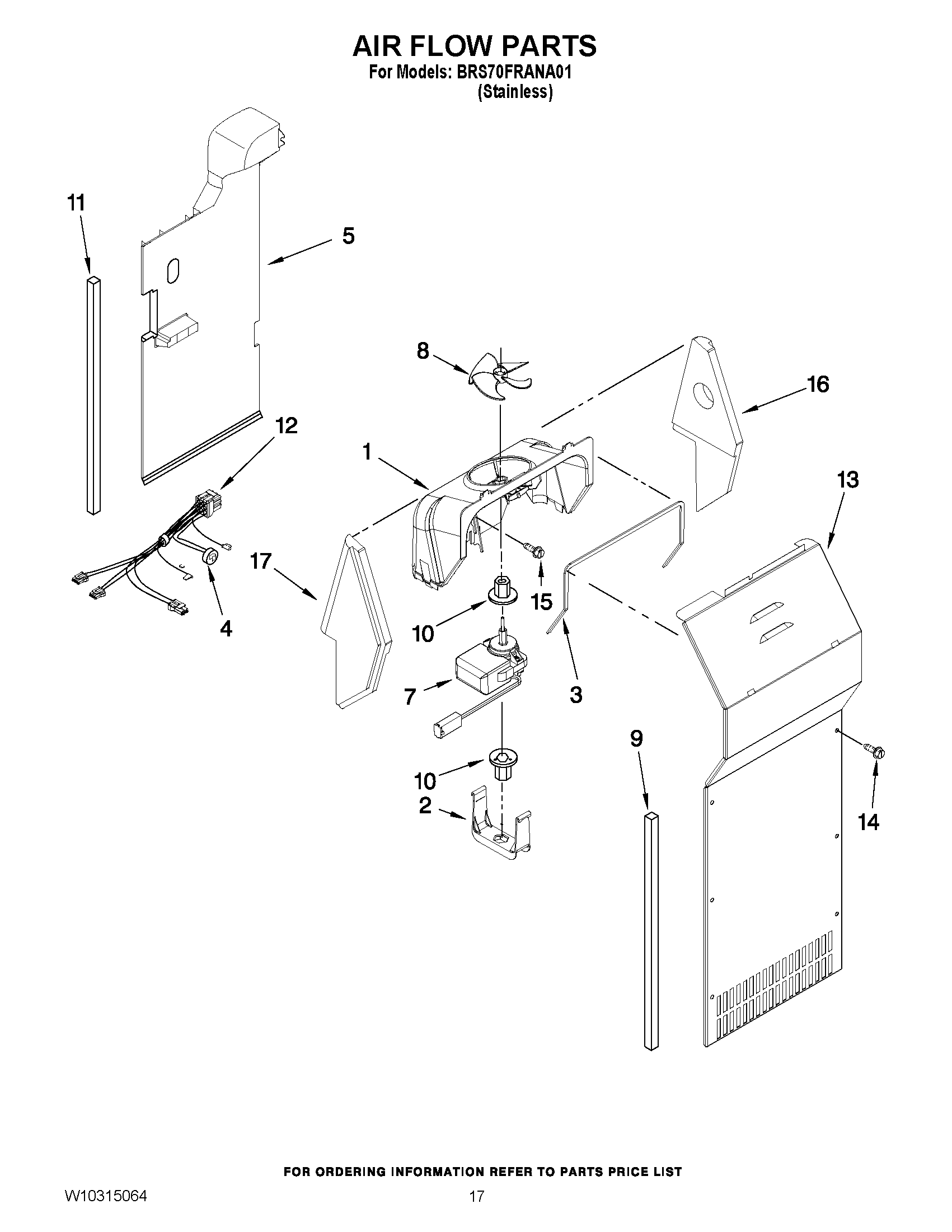

BRS70FRANA01 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3WP2155789 Whirlpool Refrigerator Gasket
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10756902 Whirlpool Refrigerator Air Duct
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
114388500 Whirlpool Refrigerator Gasket
12HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13Cover, Evaporator
144389654 Whirlpool Screw
15WP489478 Whirlpool Refrigerator Screw
164388358 Whirlpool Refrigerator Support Bracket
