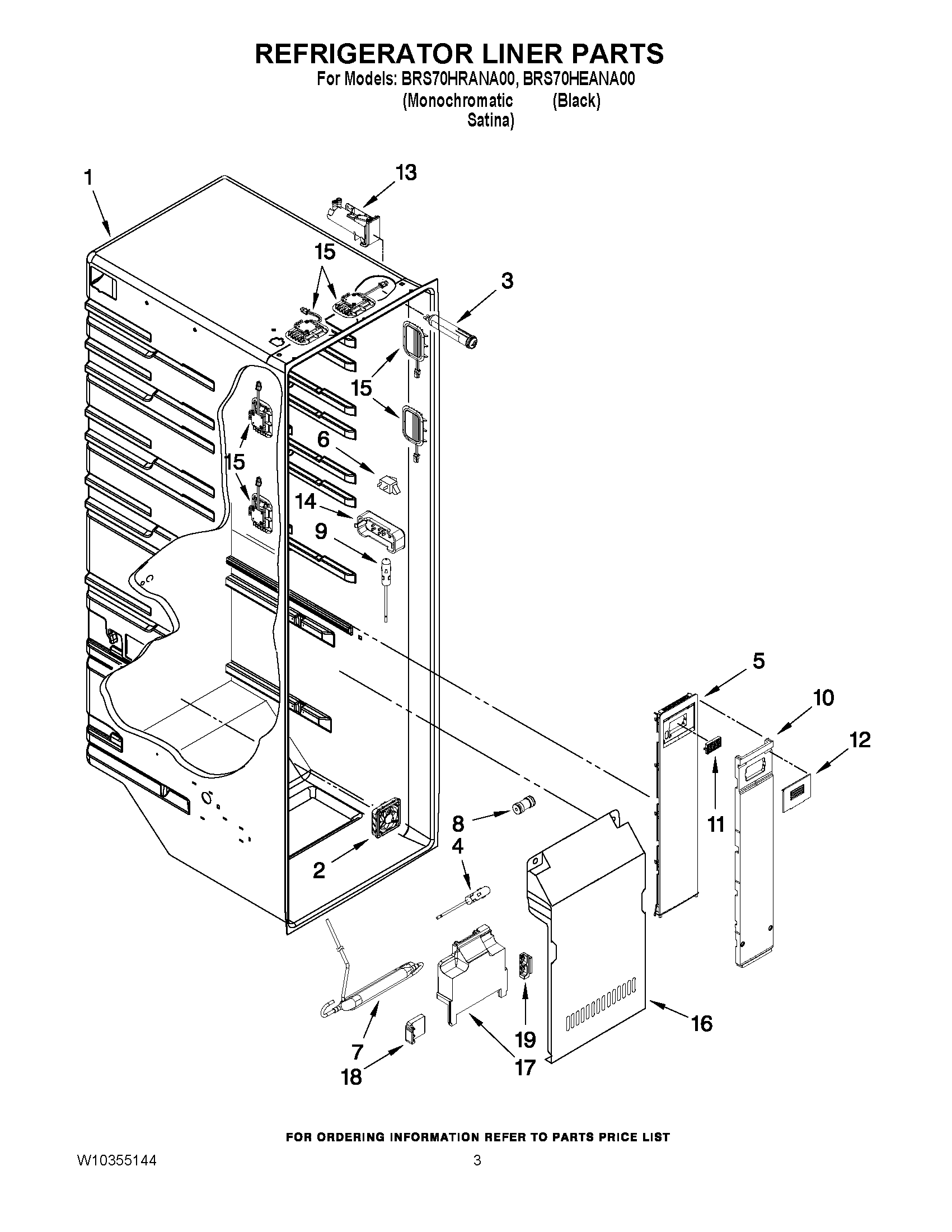

BRS70HEANA00 02 – REFRIGERATOR LINER PARTS

BRS70HEANA00 02 – REFRIGERATOR LINER PARTS

Written by

in

BRS70HEANA00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10439624 Whirlpool Refrigerator Evaporator Motor
3EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
4W10316760 Whirlpool Thermistor Kit
5W10223350 Whirlpool Air Tower
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10W10156707 Whirlpool Refrigerator Air Tower
11AIR FILTER
12AIR FILTER COVER
13WPW10329943 Whirlpool Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16W10859809 Whirlpool Refrigerator Evaporator Cover
17WPW10453428 Whirlpool Refrigerator Fan Scroll
18W11028224 Whirlpool Refrigerator Support
19W10837626 Whirlpool Refrigerator Support
