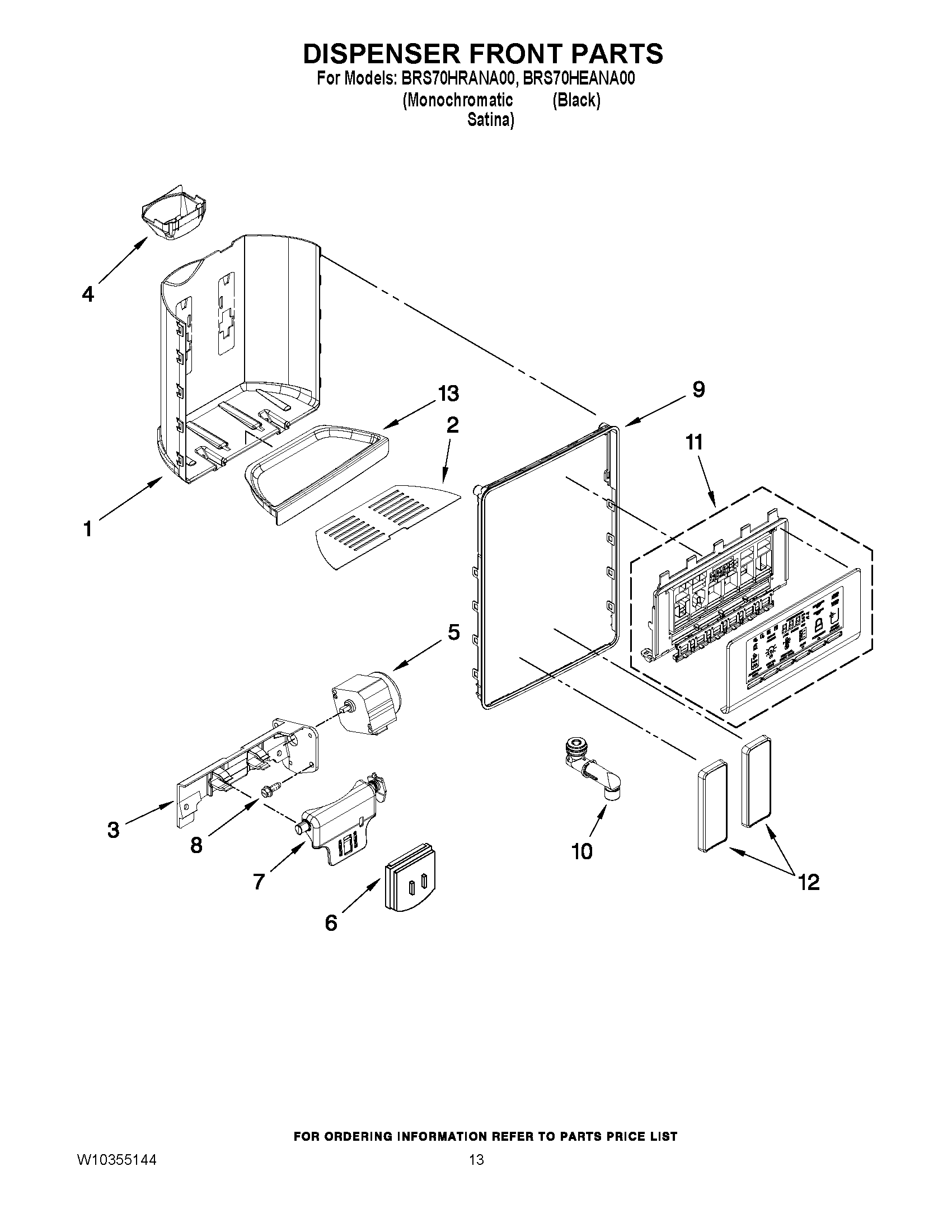

BRS70HEANA00 08 – DISPENSER FRONT PARTS

BRS70HEANA00 08 – DISPENSER FRONT PARTS

Written by

in

BRS70HEANA00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276197 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10346235 Whirlpool Refrigerator Chute Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9TRIM RING
10WP2305235 Whirlpool Refrigerator Spigot
11WPW10245298-includeCORE Whirlpool WPW10245298 Refrigerator Element Control + Core
11WPW10276277-includeCORE Whirlpool WPW10276277 Refrigerator Electronic Control Board + Core
12WPW10370592 Whirlpool Refrigerator Pad
12WPW10370594 Whirlpool Refrigerator Pad
13W10276194 Whirlpool Refrigerator Drip Tray
13WPW10276196 Whirlpool Grille
