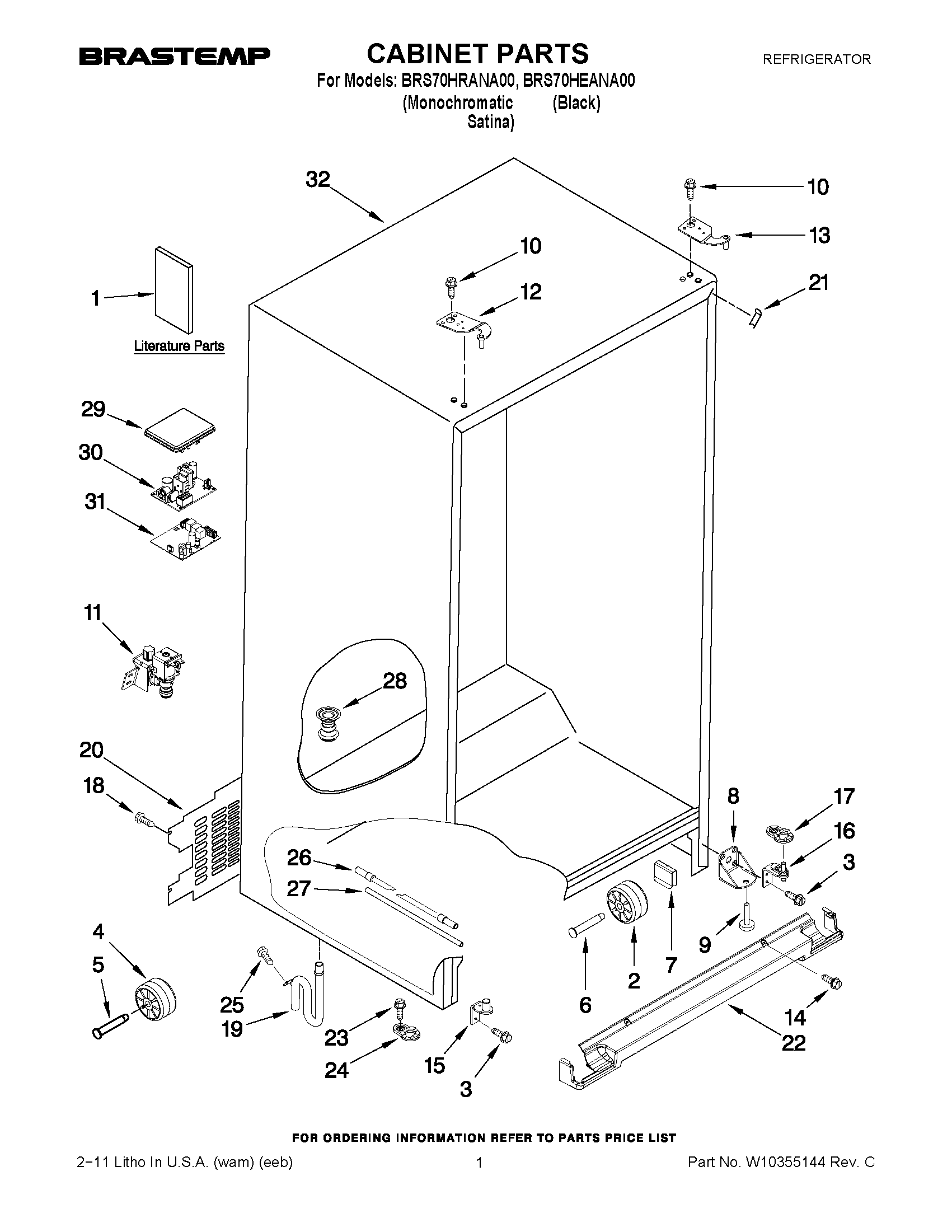

BRS70HRANA00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY LABEL
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	WPW10285005 Whirlpool Refrigerator Rivet
7	W11545866 Whirlpool Refrigerator Clip
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	WPW10308751 Whirlpool Screw
11	VALVE-INLT REFR
12	W10901052 Whirlpool Refrigerator Door Hinge
12	W11590581 Whirlpool Refrigerator Door Hinge
13	W11568758 Whirlpool Top Hinge
13	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
15	W11293374 Whirlpool Refrigerator Door Hinge
15	W10249941 Whirlpool Refrigerator Door Hinge
17	W10500001 Whirlpool Refrigerator Door Hinge
17	W10500004 Whirlpool Refrigerator Door Hinge
18	SCREW
19	W10280082 Whirlpool Extension
20	COVER, UNIT
21	WP12587703AP Whirlpool Refrigerator Filler
21	67003485 Whirlpool Refrigerator Corner Cover (Black)
22	WPW10713158 Whirlpool Refrigerator Grille
22	WPW10713153 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	W10876191 Whirlpool Refrigerator Door Cam
24	W10876198 Whirlpool Refrigerator Door Cam
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279885 Whirlpool Refrigerator Water Tube
28	W10247979 Whirlpool Refrigerator Fitting
29	LID, HV BOX
30	WPW10226427 Whirlpool Refrigerator Electronic Control Board
31	WPW10235482-includeCORE Whirlpool WPW10235482 Refrigerator Electronic Control Board + Core
32	CABINET (NOT A SERVICEABLE PART)
