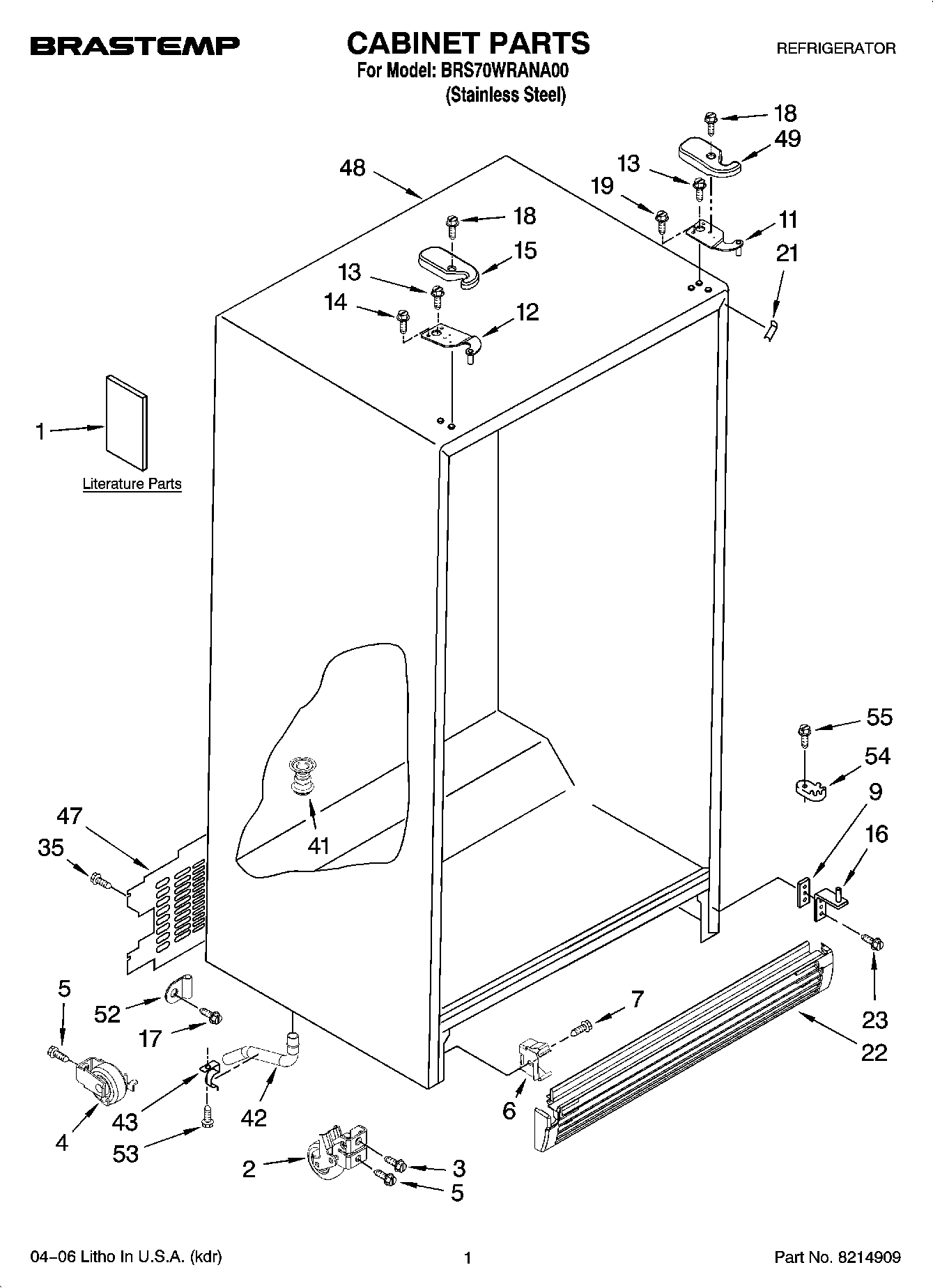

BRS70WRANA00 01 – CABINET PARTS

BRS70WRANA00 01 – CABINET PARTS

Written by

in

BRS70WRANA00 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Service & Wiring Sheet
1Modular Icemaker Service Sheet
1Energy Label
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
9WP2181911 Whirlpool Refrigerator Shim
11WP2203771 Whirlpool Refrigerator Door Hinge
12WP2203770 Whirlpool Refrigerator Door Hinge
13WP489497 Whirlpool Screw
14WP489128 Whirlpool Refrigerator Screw
15WP2203407B Whirlpool Refrigerator Cover
16Hinge, Bottom (2)
17W11693756 Whirlpool Screw Assembly
18WP8281227 Whirlpool Screw
19W10853301 Whirlpool Refrigerator Screw
21Filler, Wrapper (Black)
22WPW10283946 Whirlpool Refrigerator Grille
35WP489464 Whirlpool Refrigerator Screw
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
47Cover, Unit
48Cabinet, (Not A Serviceable Part)
49WP2203408B Whirlpool Refrigerator Cover
52W10833902 Whirlpool Refrigerator Clamp
54WPW10329686 Whirlpool Door Cam Black
55WP489483 Whirlpool Screw
