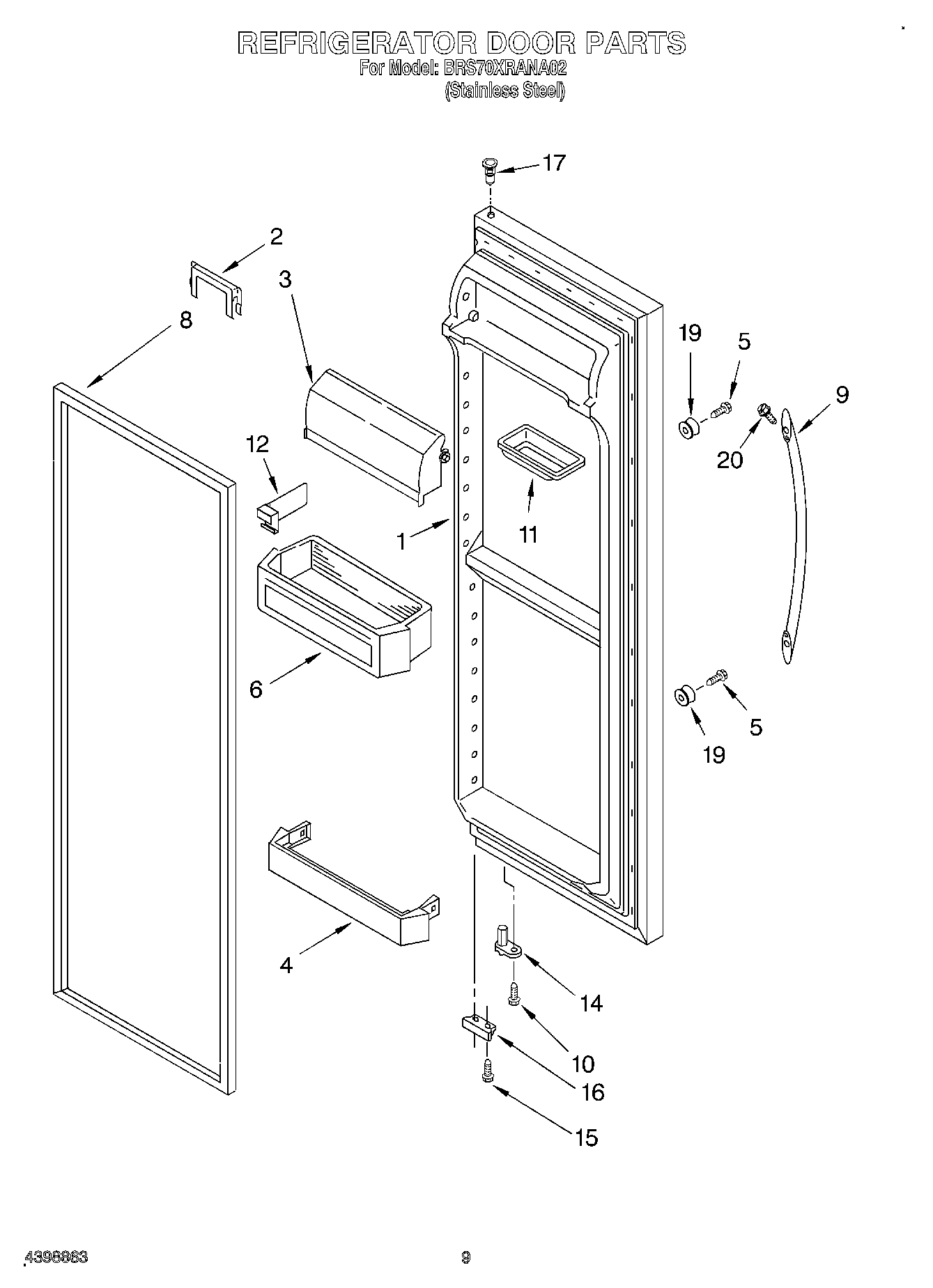

BRS70XRANA02 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489463 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
8	2159083 Whirlpool Gasket Door
9	Handle
10	WP3400012 Whirlpool Refrigerator Screw
11	Butter Tray
12	Divider, Bin
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
17	WP2182181 Whirlpool Refrigerator Thimble
19	Stud, Handle
20	Setscrew, 10-32
