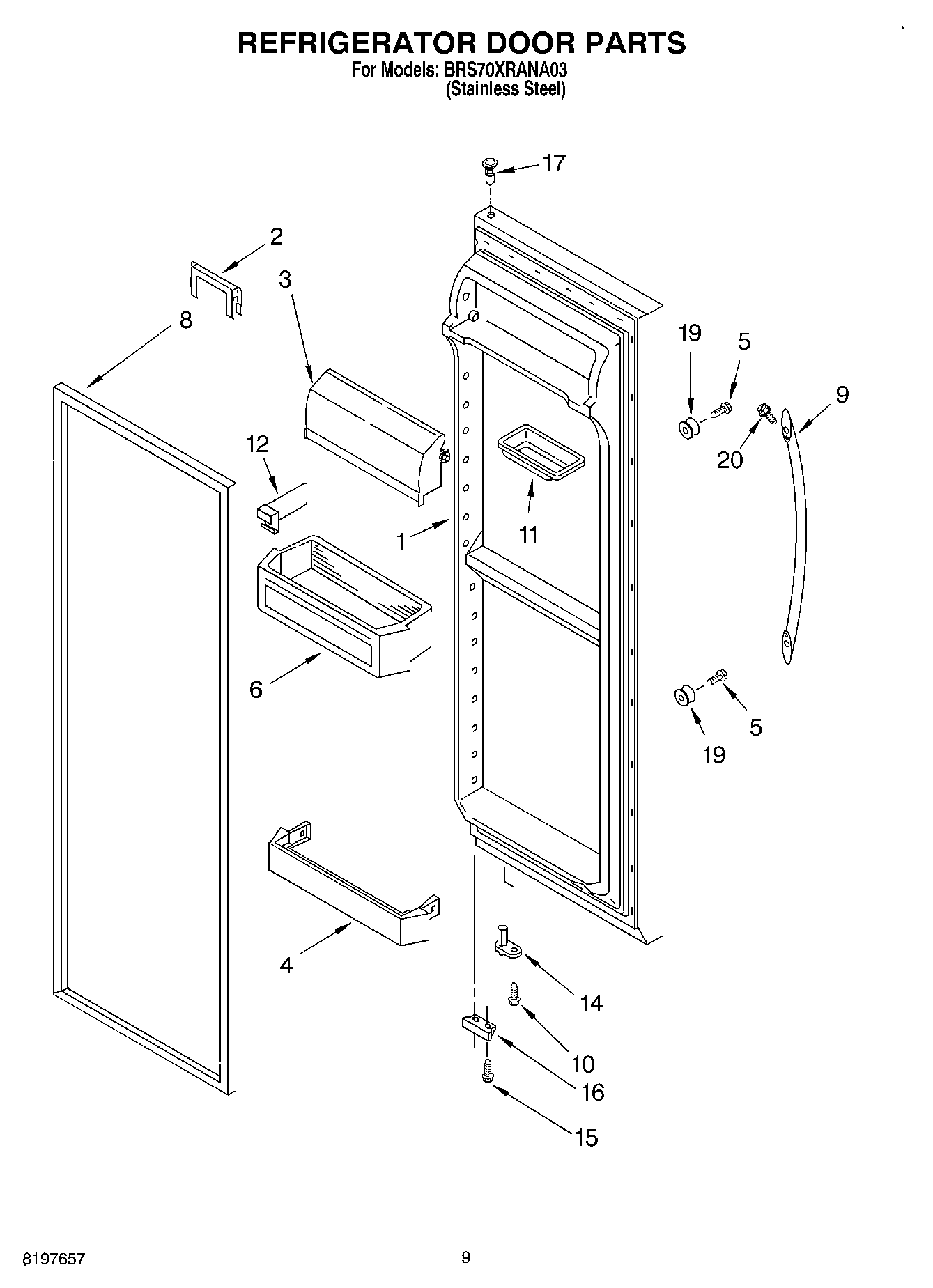

BRS70XRANA03 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8)
2Retainer, Bottle
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489463 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
82159083 Whirlpool Gasket Door
9Handle (Stainless Steel)
10WP3400012 Whirlpool Refrigerator Screw
11Butter Tray
12Divider, Bin
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Black)
17WP2182181 Whirlpool Refrigerator Thimble
19Stud, Handle
20Setscrew, 10-32
