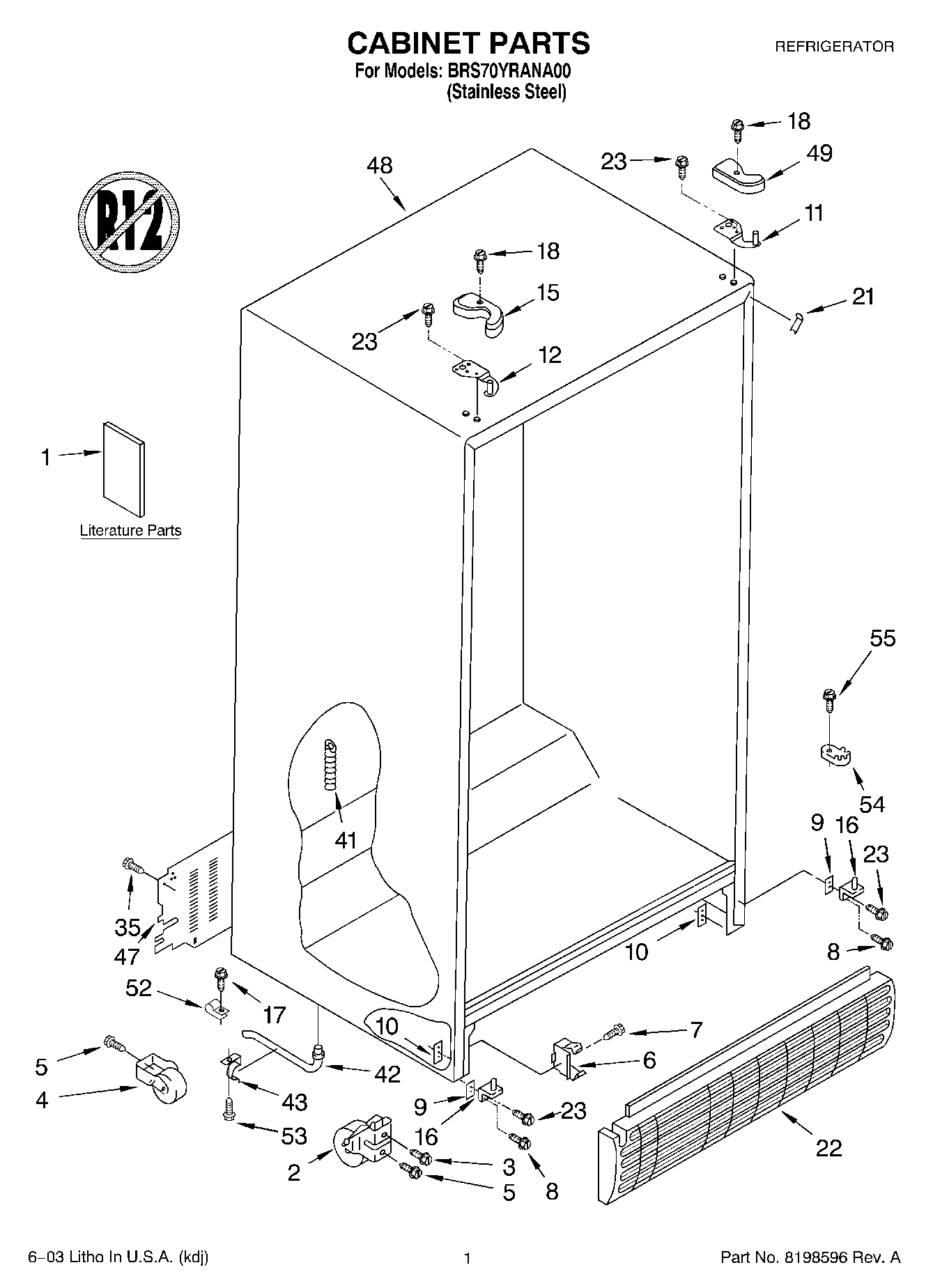

BRS70YRANA00 01 – CABINET PARTS

Products

Position	Product
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Service & Wiring Sheet)
1	Modular Icemaker Service Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10856122 Whirlpool Refrigerator Screw
9	WP2181911 Whirlpool Refrigerator Shim
10	WP2304249 Whirlpool Refrigerator Plate
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP2203770 Whirlpool Refrigerator Door Hinge
15	WP2203407B Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	W11693756 Whirlpool Screw Assembly
18	WP8281227 Whirlpool Screw
21	Filler, Wrapper (Black)
22	WPW10283946 Whirlpool Refrigerator Grille
23	WP489497 Whirlpool Screw
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188755 Whirlpool Rear Panel
48	Cabinet (Not A Serviceable Part)
49	WP2203408B Whirlpool Refrigerator Cover
52	Clamp, Service Cord
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
