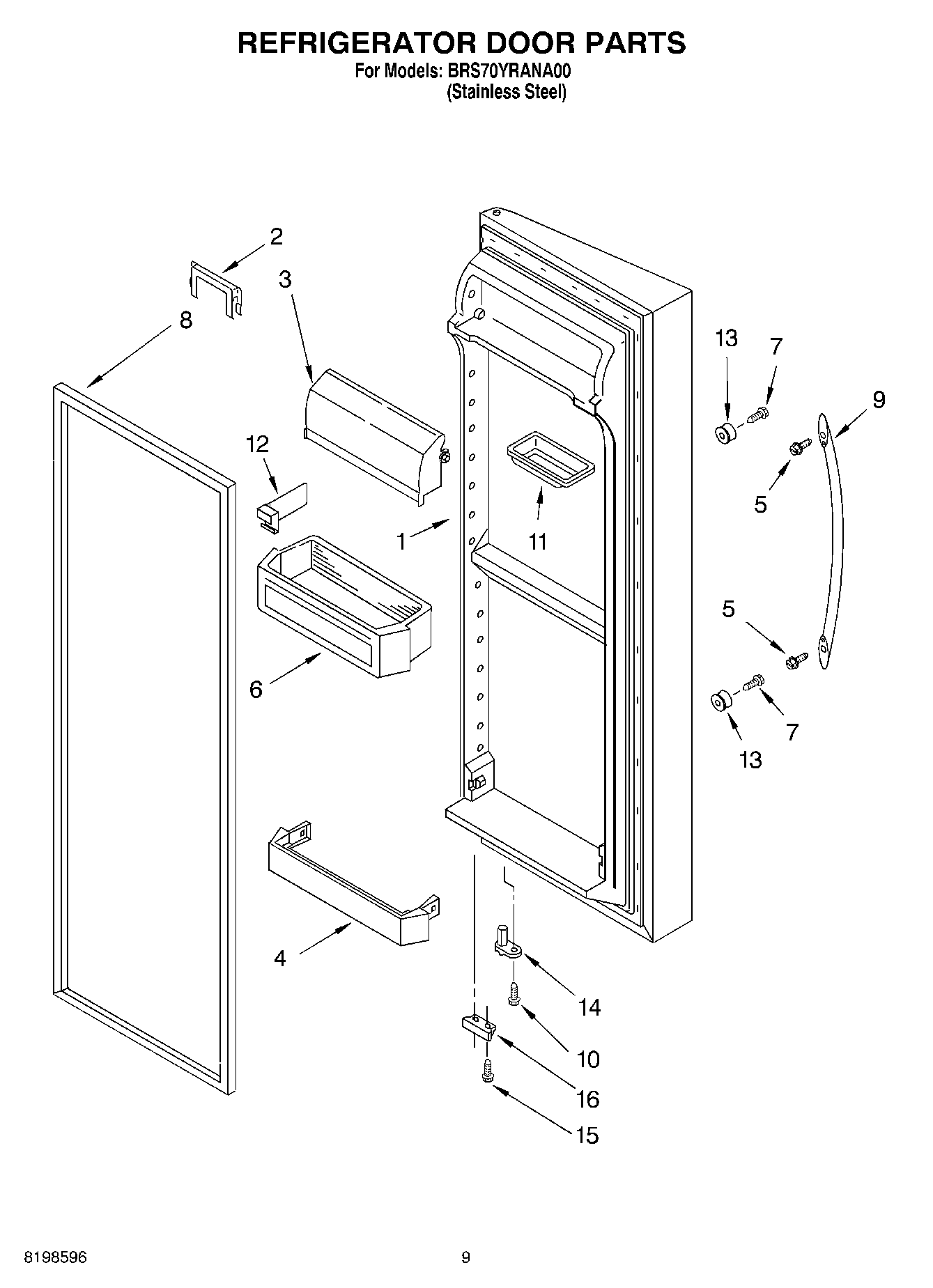

BRS70YRANA00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 8) (Stainless Steel)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	Setscrew, 10-32
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	WP488163 Whirlpool Refrigerator Screw
8	2159083 Whirlpool Gasket Door
9	Handle (Stainless Steel)
10	WP3400012 Whirlpool Refrigerator Screw
11	Butter Tray
12	Divider, Bin
13	Stud, Handle
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
