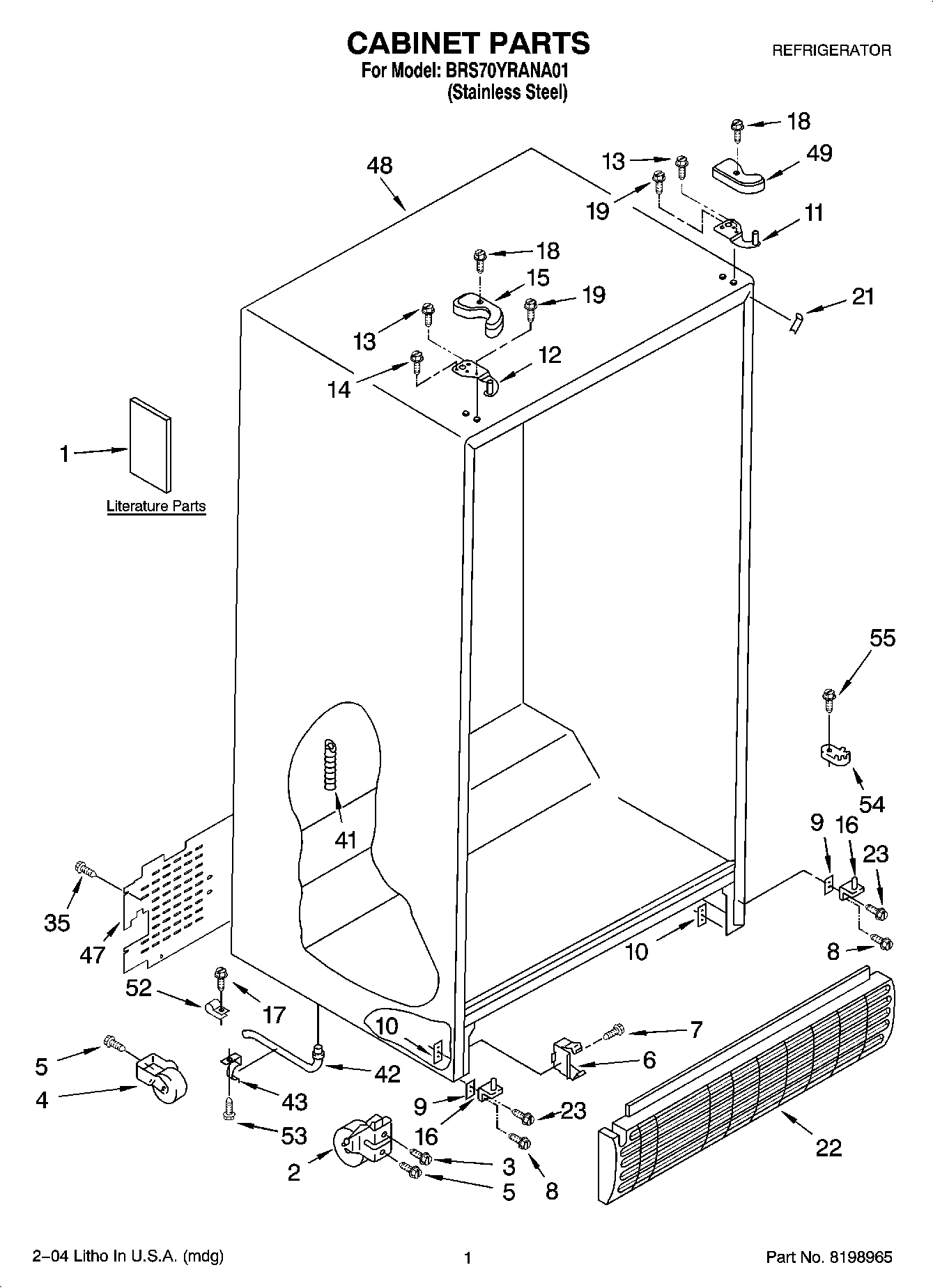

BRS70YRANA01 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	LITERATURE PARTS (Service & Wiring Sheet)
1	LITERATURE PARTS (Use & Care Guide)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	W10856122 Whirlpool Refrigerator Screw
9	WP2181911 Whirlpool Refrigerator Shim
10	WP2304249 Whirlpool Refrigerator Plate
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP2203770 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	W11693756 Whirlpool Screw Assembly
18	WP8281227 Whirlpool Screw
19	W10853301 Whirlpool Refrigerator Screw
21	Filler, Wrapper (Black)
22	WPW10283946 Whirlpool Refrigerator Grille
23	WP489497 Whirlpool Screw
35	WP489464 Whirlpool Refrigerator Screw
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet (Not A Serviceable Part)
49	WP2203408B Whirlpool Refrigerator Cover
52	W10833902 Whirlpool Refrigerator Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
