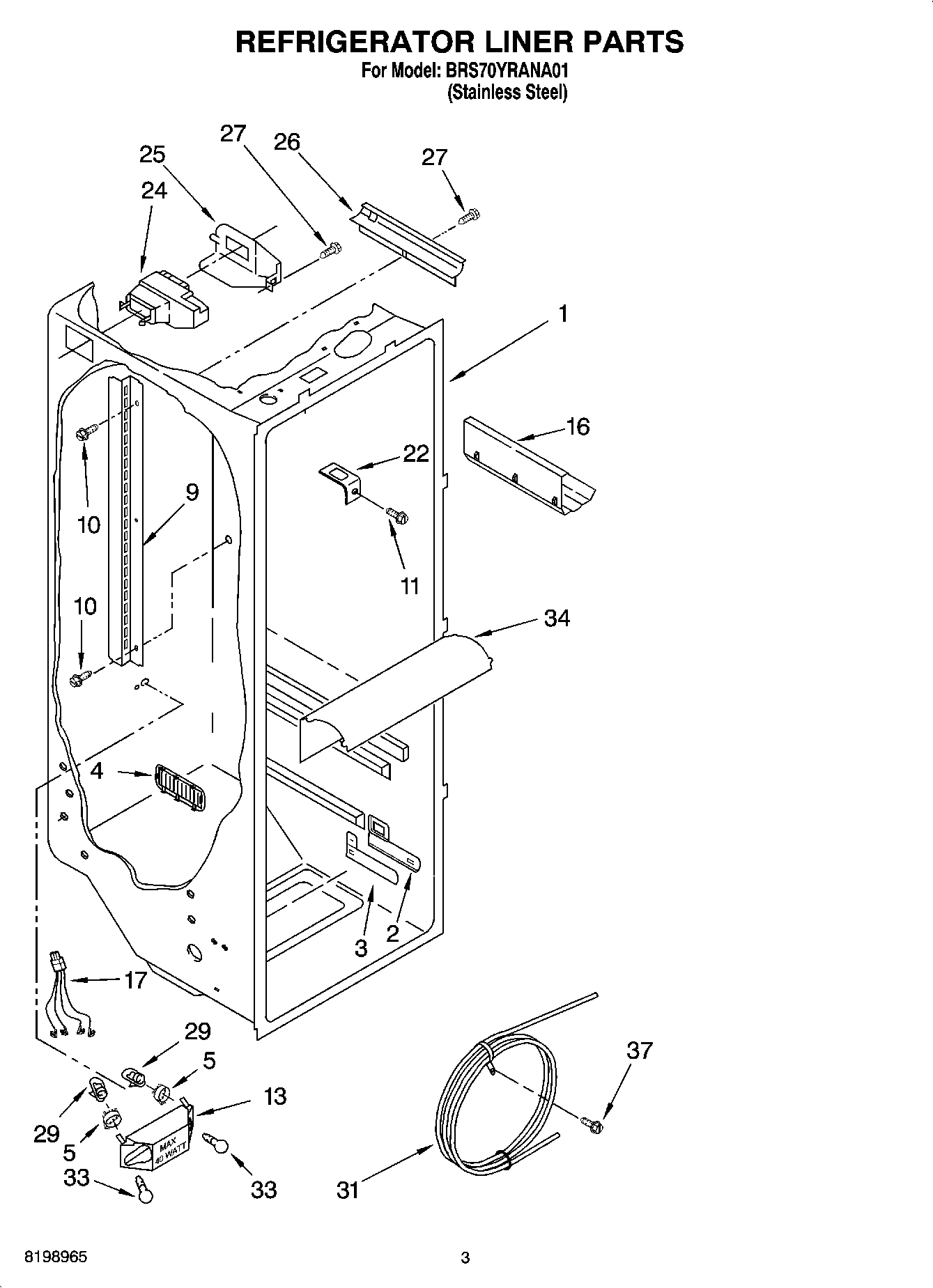

BRS70YRANA01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	WP2175210 Whirlpool Refrigerator Shroud
9	Ladder, Shelf
10	WP488729 Whirlpool Refrigerator Door Screw
11	WP488488 Whirlpool Refrigerator Screw
13	Bracket, Dual Crisper Light
16	W10777924 Whirlpool Refrigerator Wine Rack
17	2311637 Whirlpool Refrigerator Wire Harness
22	WP2256085 Whirlpool Refrigerator Retainer
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
27	W10759522 Whirlpool Screw
29	4387478 Whirlpool Refrigerator Light Socket
31	WP2256126 Whirlpool Refrigerator Reservoir
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
