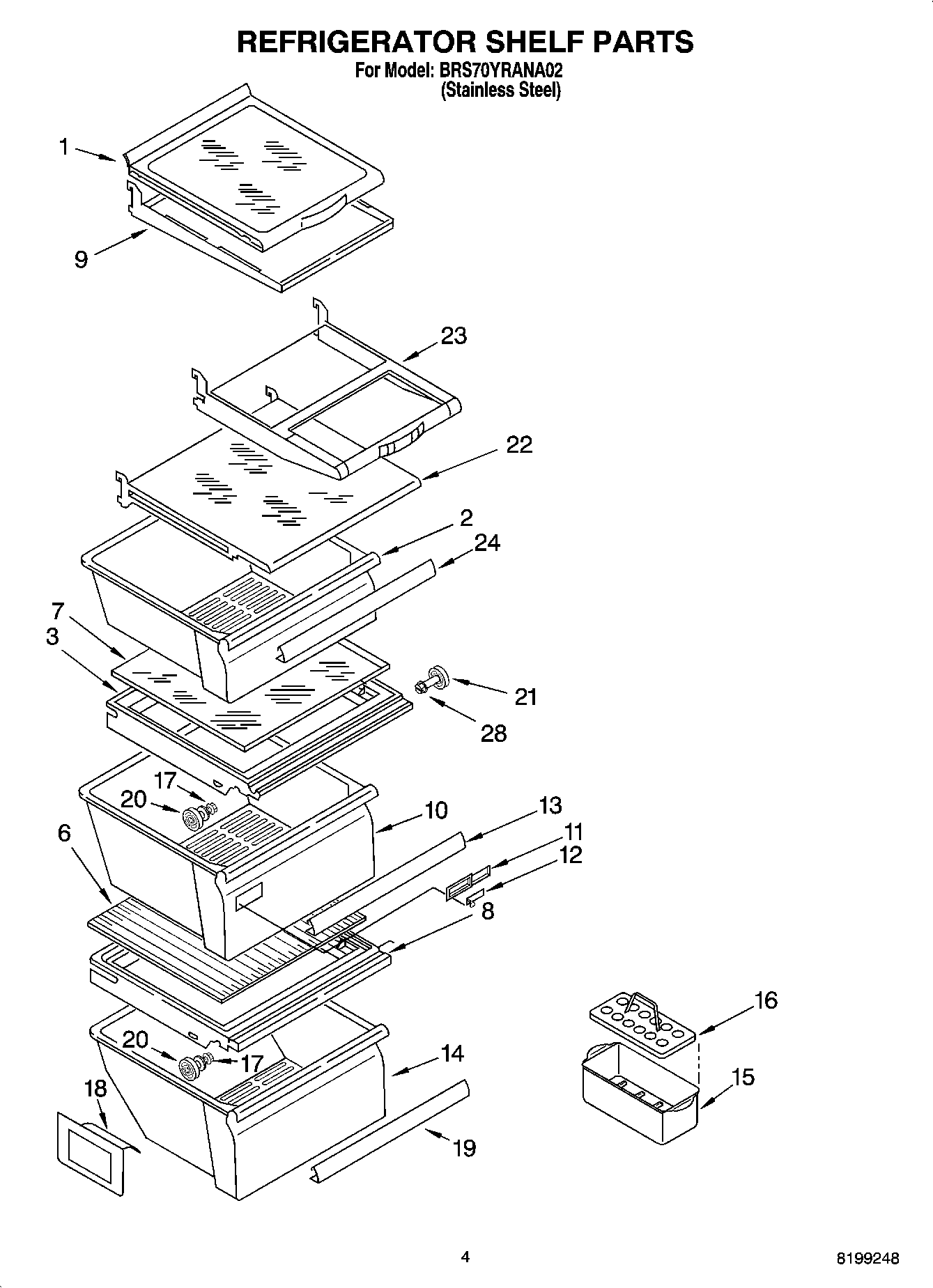

BRS70YRANA02 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	WPW10141748 Whirlpool Refrigerator Glass Shelf
2	W11497323 Whirlpool Snack Pan
3	W10508993 Whirlpool Refrigerator Cover Pan
7	W10864399 Whirlpool Glass Shelf
8	Cover, Meat Pan
9	Frame, Shelf (2)
10	PAN-CRISPR
11	WP2179343 Whirlpool Refrigerator Control Body
12	WP2179342 Whirlpool Refrigerator Slide
14	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
15	W10136387A Whirlpool Refrigerator Egg Container
16	WP2177817 Whirlpool Refrigerator Egg Container
17	WP3-24004-109 Whirlpool Refrigerator Screw
18	2179350 Whirlpool Refrigerator Deflector
19	WP2179234 Whirlpool Refrigerator Pan Trim
20	W11223328 Whirlpool Refrigerator Shelf Stud
21	WP2196483 Whirlpool Refrigerator Shelf Stud
22	Shelf, Snack Bin
23	Shelf Assembly, Flip Back
24	WP2179243 Whirlpool Refrigerator Pan Trim
28	WP3400806 Whirlpool Screw
