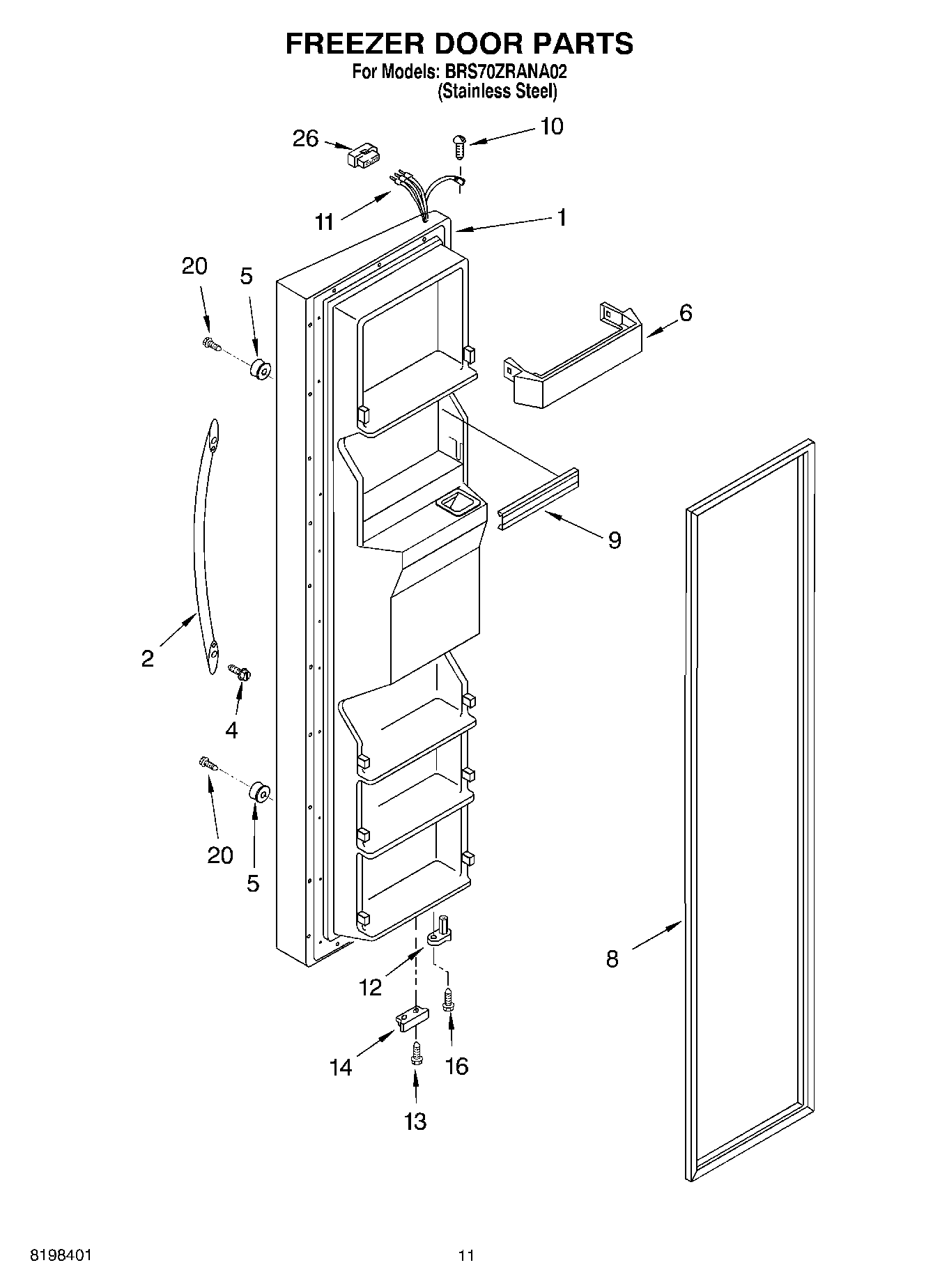

BRS70ZRANA02 07 – FREEZER DOOR PARTS

BRS70ZRANA02 07 – FREEZER DOOR PARTS

Written by

in

BRS70ZRANA02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts)
2Handle (Stainless Steel)
4Setscrew, 10-32
5Stud, Handle
6Trivet, Shelf (4)
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
11Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
16WP3400012 Whirlpool Refrigerator Screw
20WP488163 Whirlpool Refrigerator Screw
26WP2154473 Whirlpool Refrigerator Connector
