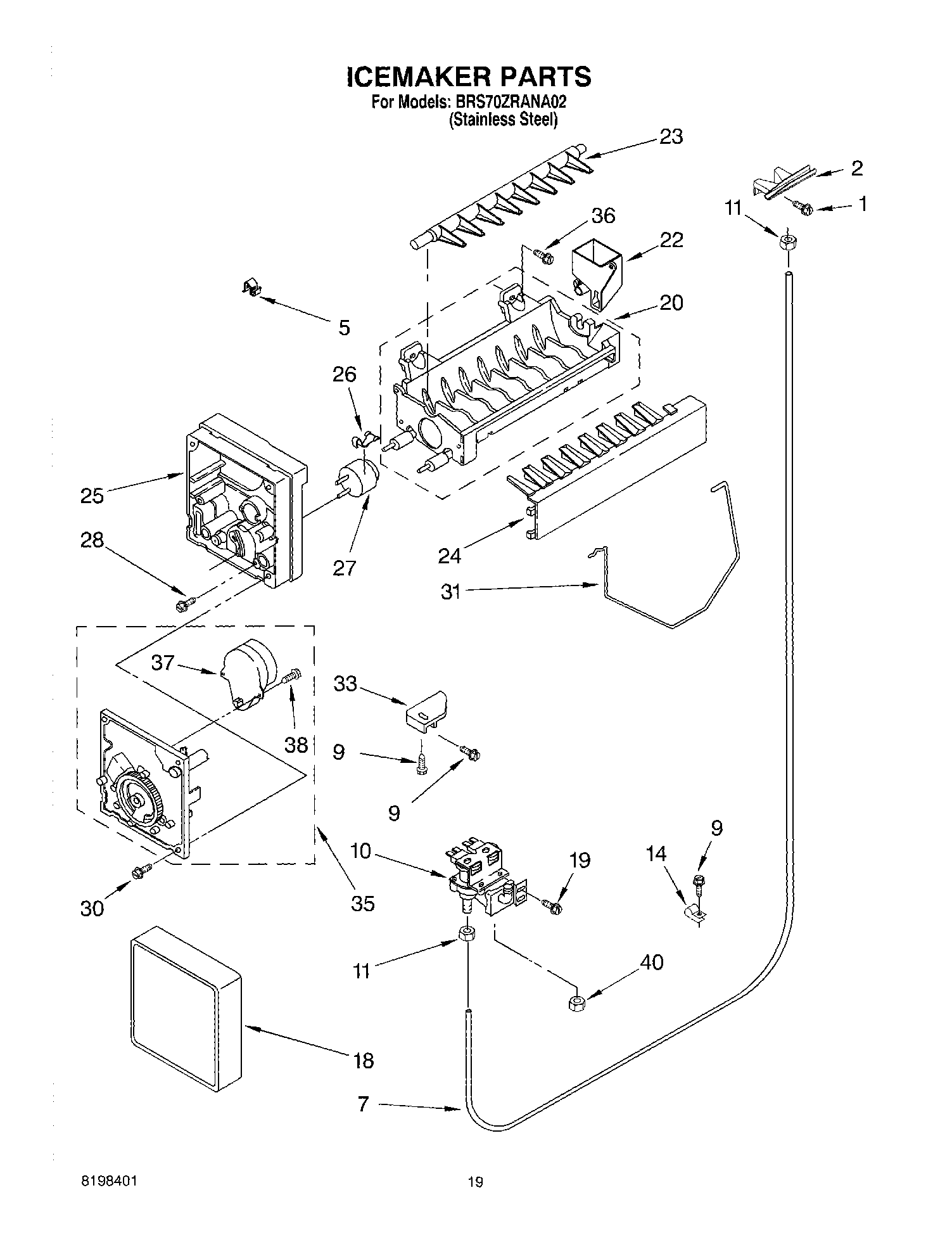

BRS70ZRANA02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

BRS70ZRANA02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

BRS70ZRANA02 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI21049A6
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
Torx Key
TAPE, VINYL (3/4 X 108“)
Enamel, Black (1 Qt. Uncut)
WPL ARI21048A3
WPL ARI21047A2
WPL ARI21046A1
WPW10312300 Whirlpool Refrigerator Ice Container
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPL 876029
WPL 799833
CEMENT, ALUMILASTIC (1 1/4 OZ.)
212643 Whirlpool Refrigerator Permagum Sealer
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI21050A3
WP72107 Whirlpool Touchup
Almond (Uncut)
2W11505385 Whirlpool Refrigerator Chute
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
9WP489478 Whirlpool Refrigerator Screw
10W10853654 Whirlpool Water Inlet Valve
11WP627018 Whirlpool Refrigerator Nut
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
36WP488163 Whirlpool Refrigerator Screw
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
40Nut, Compression
1004317943 Whirlpool Refrigerator Ice Maker Assembly
