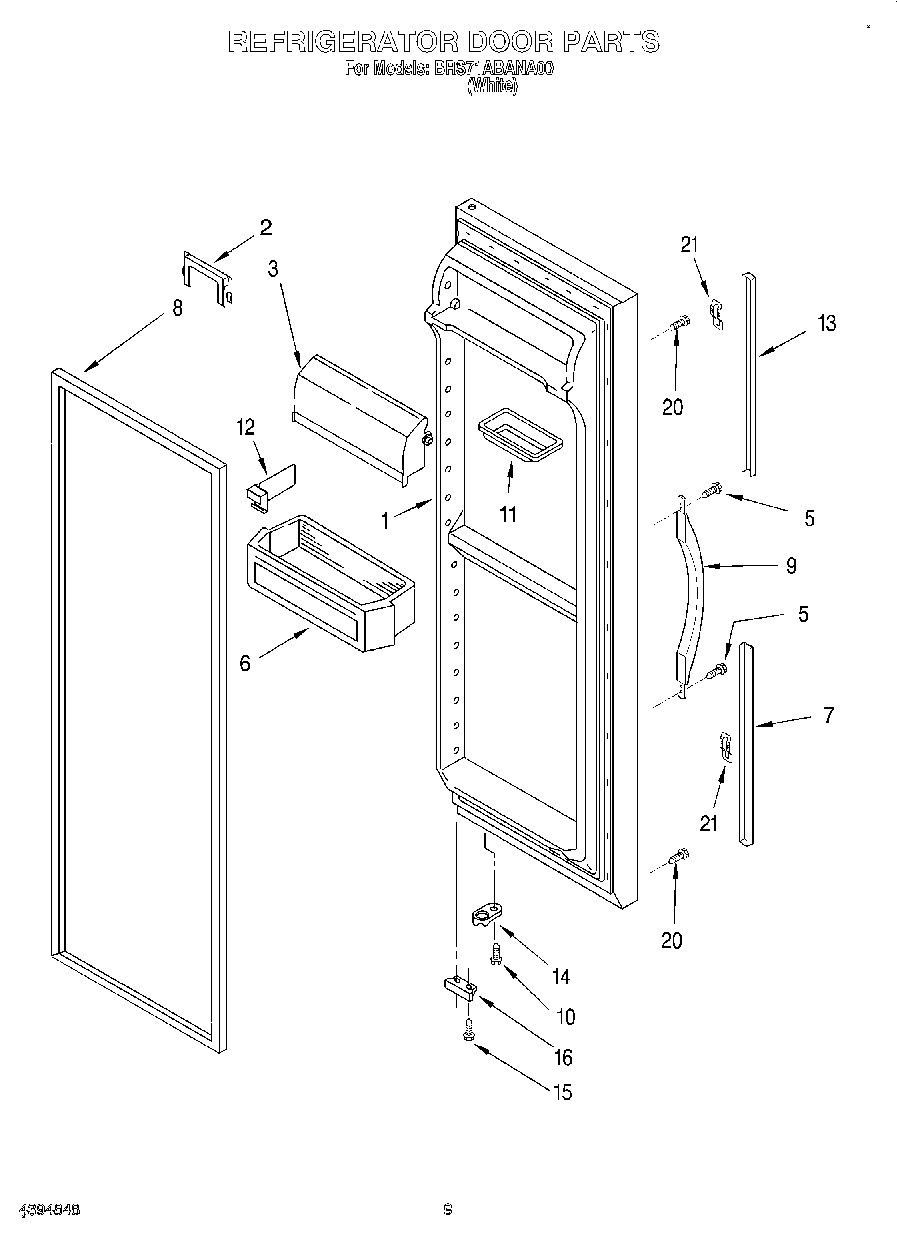

BRS71ABANA00 06 – REFRIGERATOR DOOR

BRS71ABANA00 06 – REFRIGERATOR DOOR

Written by

in

BRS71ABANA00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (White)
2Retainer, Bottle
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7Extension, Bottom (White)
82159075 Whirlpool Door Gasket Seal
9Handle, Center (White)
10WP3400012 Whirlpool Refrigerator Screw
11Butter Tray
12Divider, Bin
13WP2194973W Whirlpool Door Trim
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Chrome)
20WP3400852 Whirlpool Refrigerator Screw
21WP2195327 Whirlpool Refrigerator Clip
