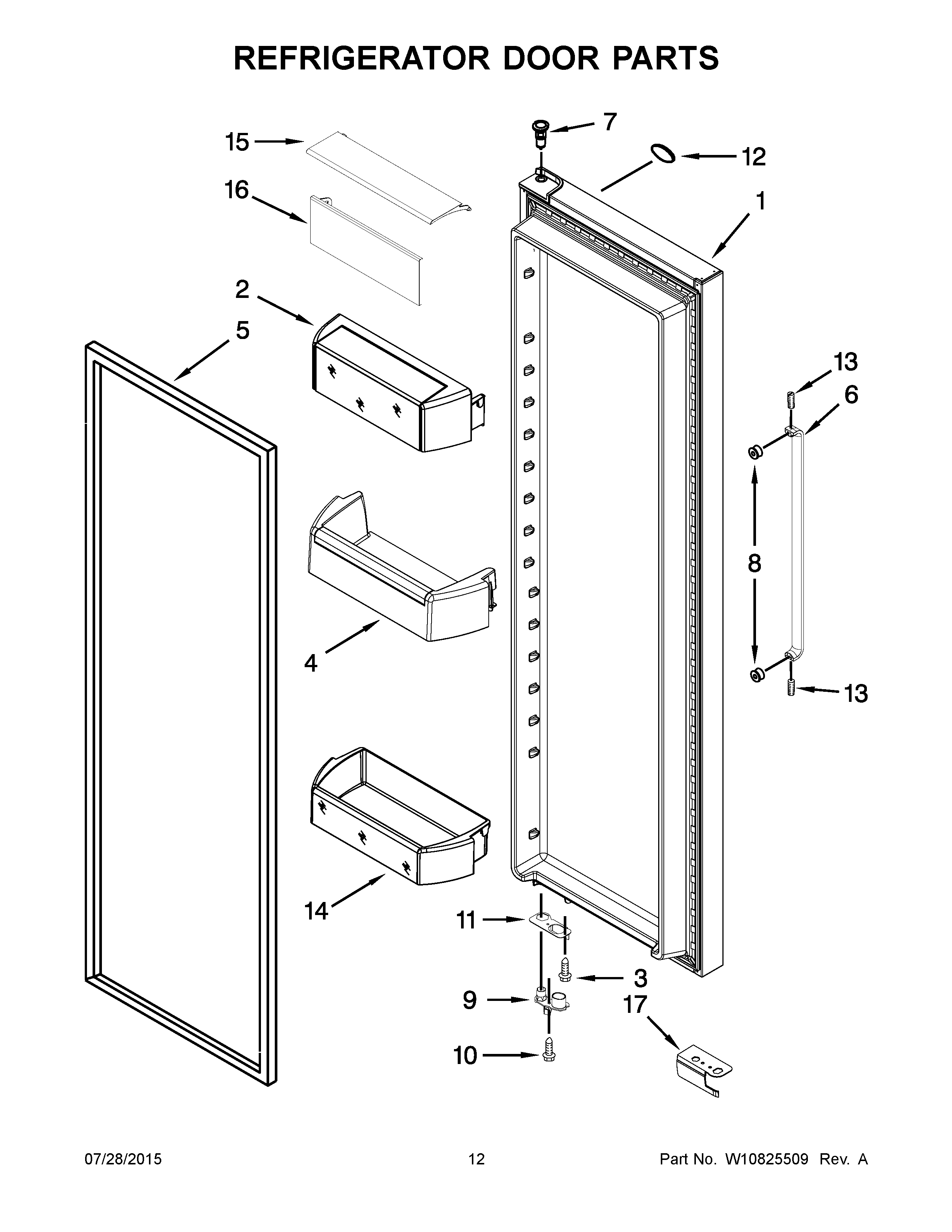

BRS75ARANA00 07 – REFRIGERATOR DOOR PARTS

BRS75ARANA00 07 – REFRIGERATOR DOOR PARTS

Written by

in

BRS75ARANA00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10296855 Whirlpool Refrigerator Door Bin
5W10355582 Whirlpool Refrigerator Door Gasket
6HANDLE
7WP2182181 Whirlpool Refrigerator Thimble
8STUD, HANDLE
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12NAMEPLATE
13SCREW
14WPW10335220 Whirlpool Refrigerator Cantilever Bin
15WPW10316883 Whirlpool Refrigerator Door Compressor
16WPW10316885 Whirlpool Refrigerator Compressor Door
17W11661847 Whirlpool Wire Cover
