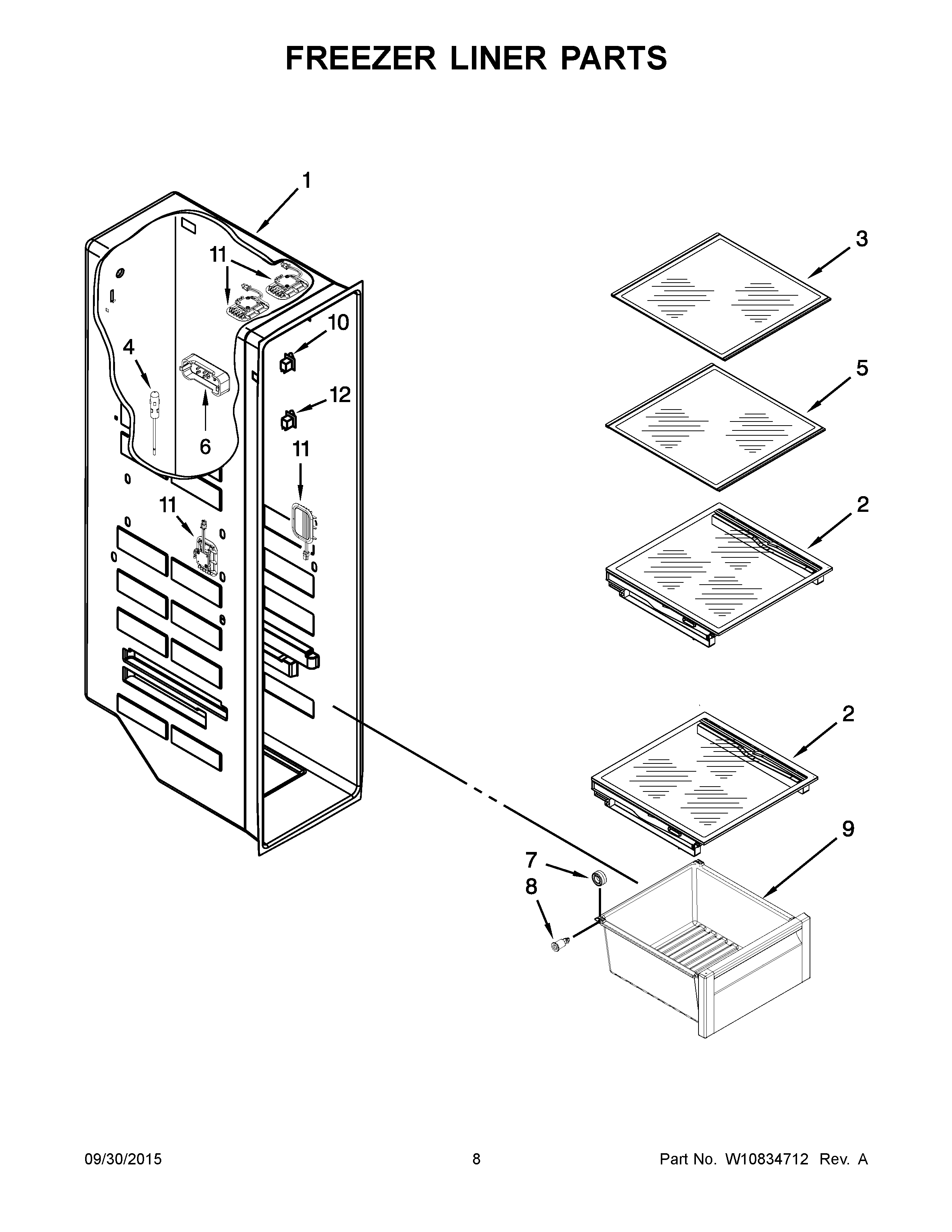

BRS75BRANA00 05 – FREEZER LINER PARTS

BRS75BRANA00 05 – FREEZER LINER PARTS

Written by

in

BRS75BRANA00 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10290891 Whirlpool Cover
3WPW10238485 Whirlpool Glass Shelf
4THERMISTOR
5WPW10269146 Whirlpool Glass Shelf
6WPW10425252 Whirlpool Refrigerator Cover
7W11164152 Whirlpool Drawer Roller
8WPW10257246 Whirlpool Refrigerator Axle
9PAN, FREEZER – LOWER (ALSO ORDER ITEMS 7 & 8)
10W11396033 Whirlpool Refrigerator Rocker Switch
11MODULE
12W11123943 Whirlpool Refrigerator Switch
