BRS75BRANA00 06 – MOTOR AND ICE CONTAINER PARTS

BRS75BRANA00 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

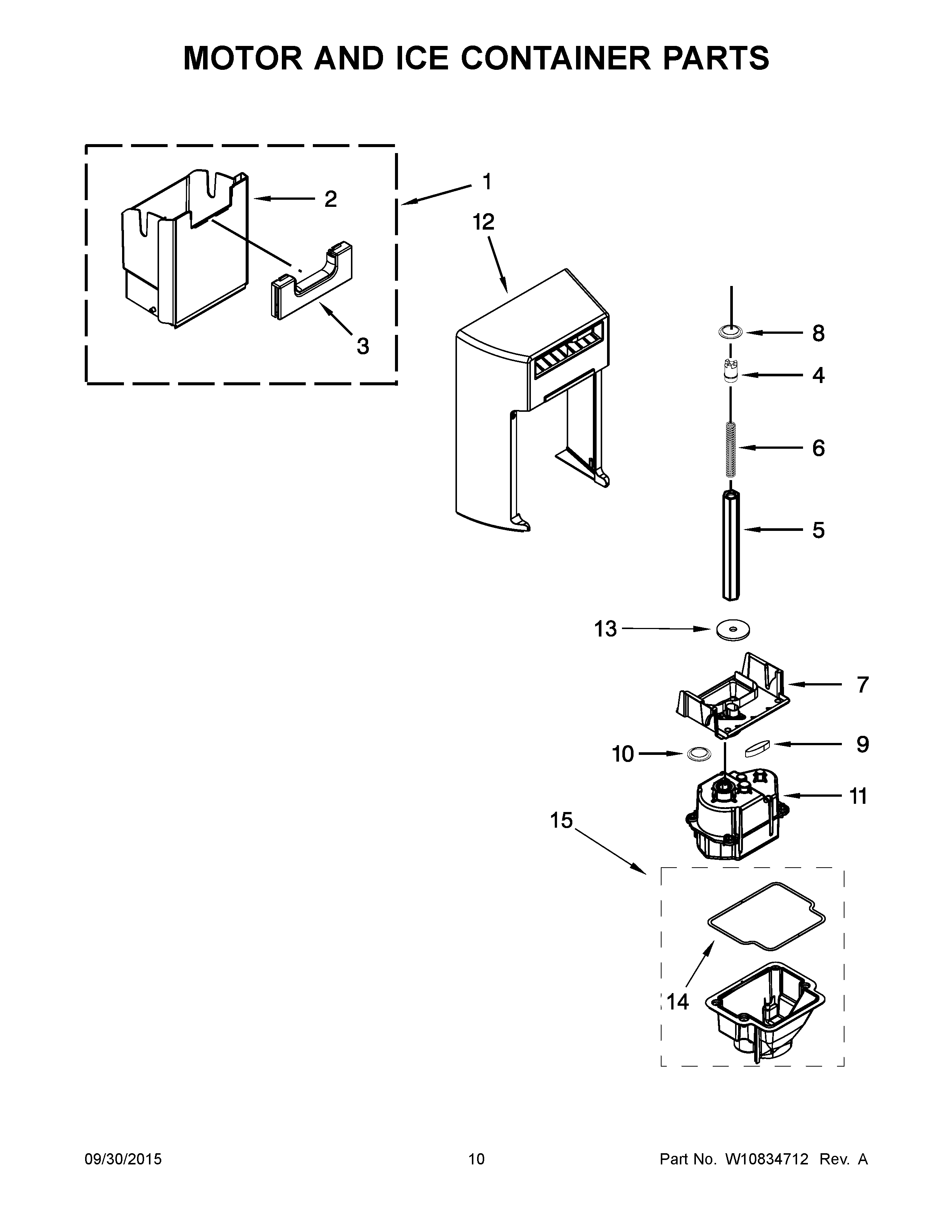

BRS75BRANA00 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1ICE CONTAINER ASSEMBLY
2ICE BIN
3W11652042 Whirlpool Bin Latch
4WP2220458 Whirlpool Drive Cam
5WPW10258544 Whirlpool Refrigerator Shaft
6W10852956 Whirlpool Refrigerator Spring
7CHUTE
8WP2198628 Whirlpool Door Seal
9WPW10291905 Whirlpool Seal
10WP2212370 Whirlpool Washer
11DISPENSER, MOTOR
12WPW10287594 Whirlpool Refrigerator Front Cover
13WP2305382 Whirlpool Refrigerator Washer
14W10166854 Whirlpool Refrigerator Gasket
15W11678273 Whirlpool Bracket
