BRS75BRANA00 09 – DISPENSER PARTS

BRS75BRANA00 09 – DISPENSER PARTS

Written by

in

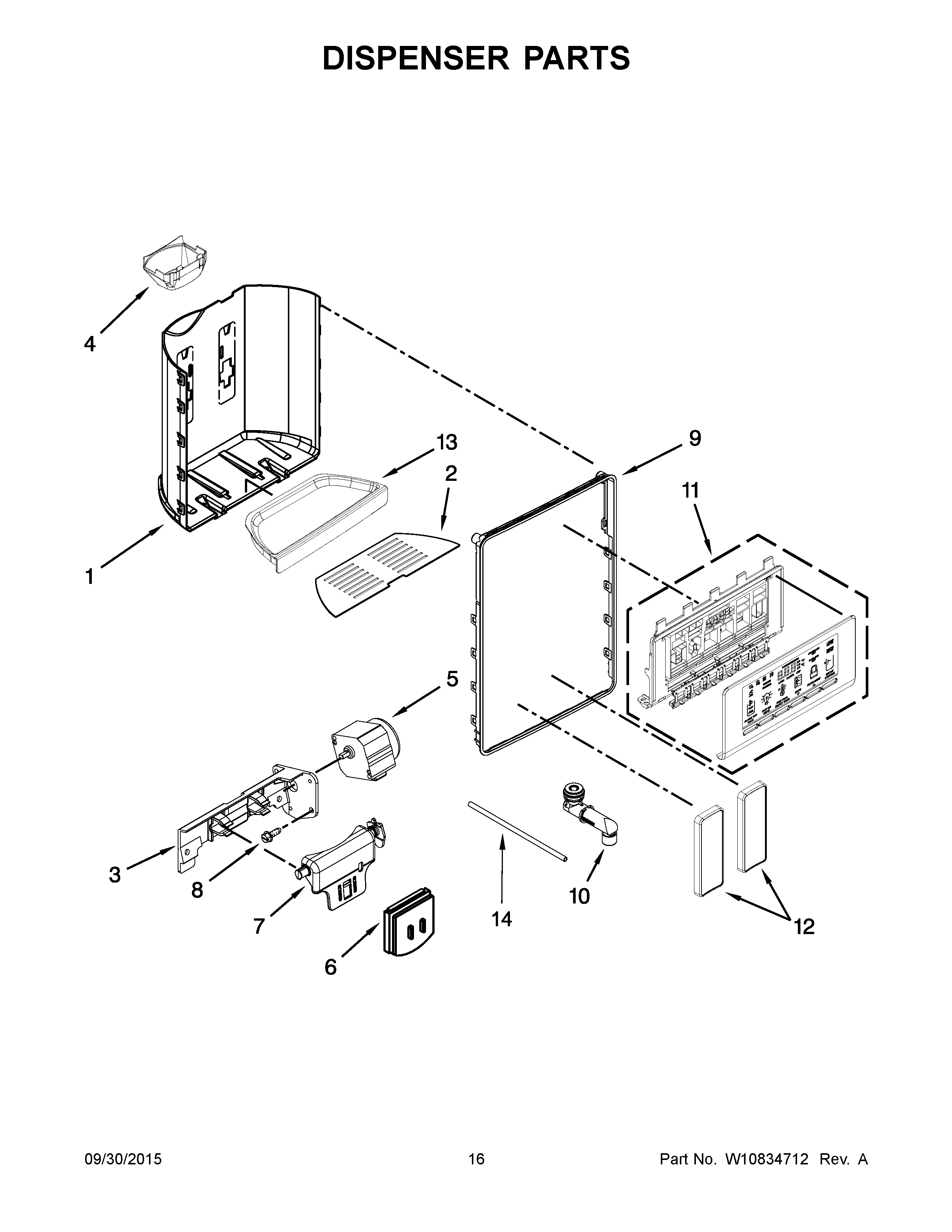

BRS75BRANA00 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276197 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6WPW10493172 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9TRIM RING (CHROMIUM FROST)
10WPW10386778 Whirlpool Refrigerator Water Tube
11W10830370 Whirlpool Refrigerator Electronic Control Board + Core
12WPW10370594 Whirlpool Refrigerator Pad
13WPW10276196 Whirlpool Grille
14W11620106 Whirlpool Water Tube
