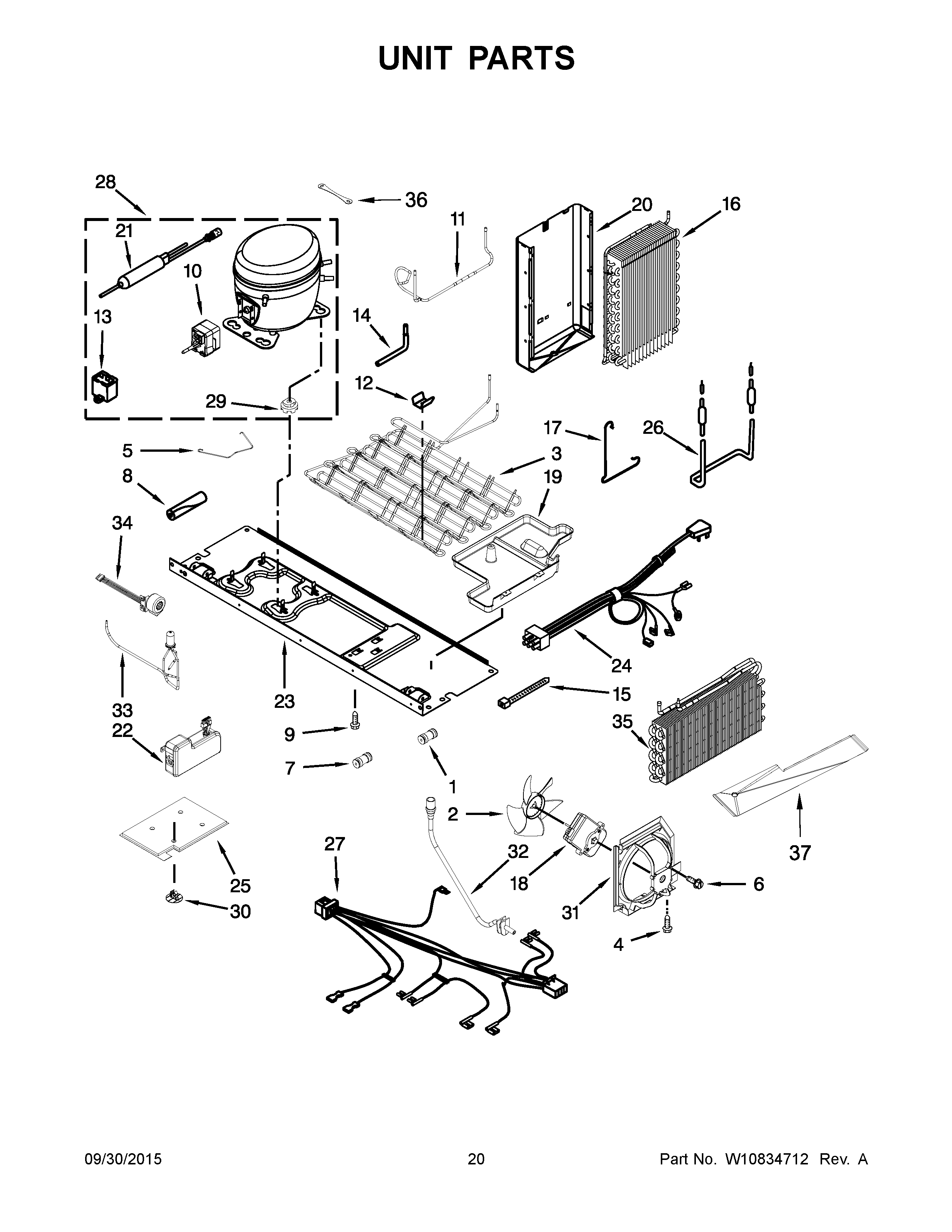

BRS75BRANA00 11 – UNIT PARTS

BRS75BRANA00 11 – UNIT PARTS

Written by

in

BRS75BRANA00 11 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10277958 Whirlpool Refrigerator Fitting
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	WP489399 Whirlpool Refrigerator Screw
5	2223314 Whirlpool Refrigerator Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10271543 Whirlpool Refrigerator Connector
8	SLEEVE
9	W10142255 Whirlpool Screw
10	WP2304885 Whirlpool Refrigerator Start Device
11	WPW10223328 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	CAPACITOR
14	W10858105 Whirlpool Refrigerator Tube
15	W10204187 Whirlpool Refrigerator Retainer
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	TRAY, EVAPORATOR
20	HEAT SHIELD
21	WPW10143759 Whirlpool Dryer Filter
22	W11038857 Whirlpool Refrigerator Inverter Box
23	W10277704 Whirlpool Refrigerator Support
24	POWER CORD
25	UNIT COVER, BOTTOM
26	WPW10338944 Whirlpool Refrigerator Heater
27	HARNESS, WIRING WATER VALVE
28	W10139460 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W10296661 Whirlpool Refrigerator Clip
31	WPW10251467 Whirlpool Refrigerator Air Baffle
32	W11409190 Whirlpool Refrigerator Drain Tube
33	W11590197 Whirlpool Refrigerator Valve
34	WPW10364560 Whirlpool Refrigerator Solenoid
35	WPW10643261 Whirlpool Refrigerator Evaporator
36	W10236396 Whirlpool Refrigerator Strap
37	W11720794 Whirlpool Drain Pan
