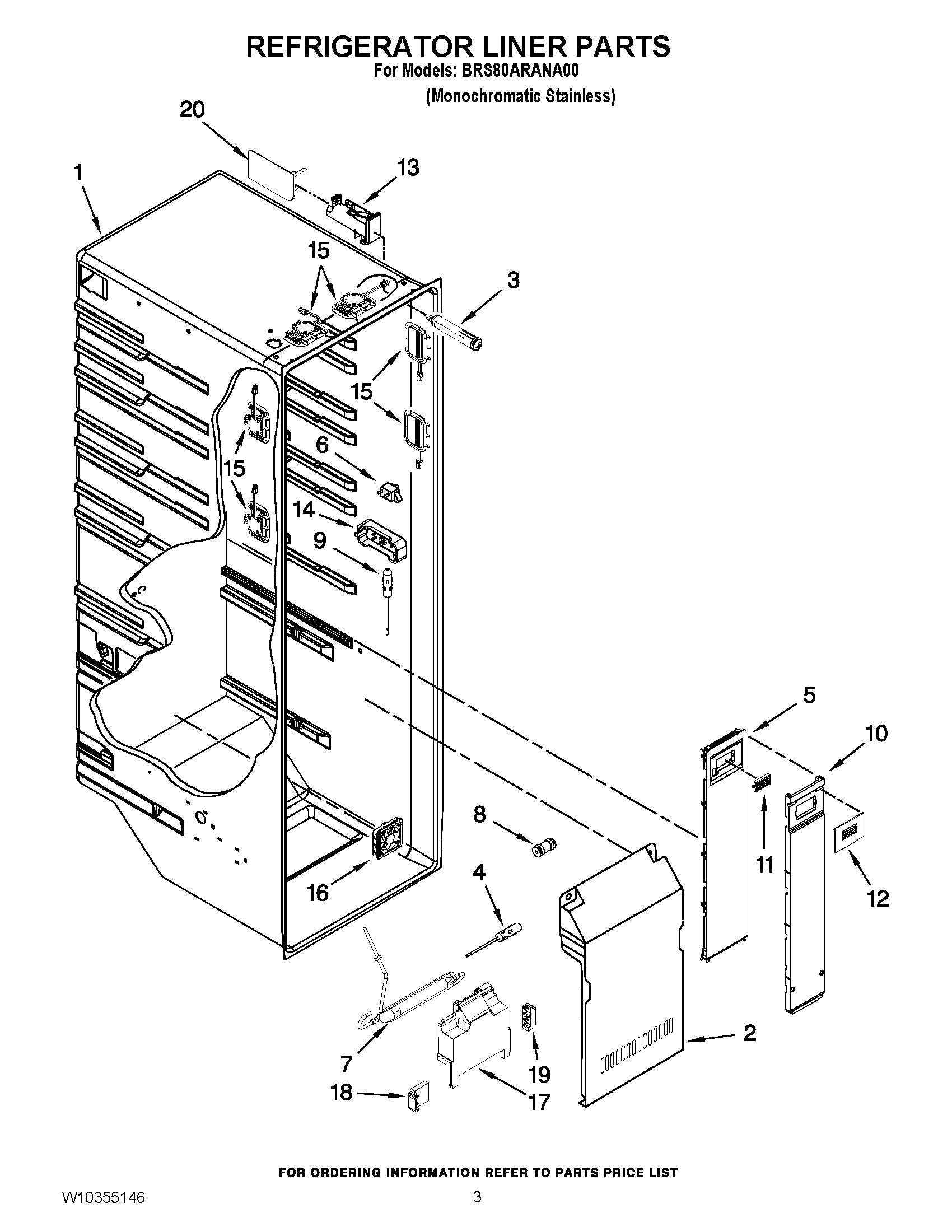

BRS80ARANA00 02 – REFRIGERATOR LINER PARTS

BRS80ARANA00 02 – REFRIGERATOR LINER PARTS

Written by

in

BRS80ARANA00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10859809 Whirlpool Refrigerator Evaporator Cover
3WATER FILTER
4W10316760 Whirlpool Thermistor Kit
5COVER, AIR TOWER
6W11384469 Whirlpool Door Switch
7W11204869 Whirlpool Refrigerator Reservoir
8WP2300868 Whirlpool Refrigerator Fitting
9THERMISTOR
10TOWER, AIR
11W10311524 Whirlpool FreshFlow Refrigerator Air Filter
12AIR FILTER COVER
13WPW10329943 Whirlpool Housing
14WPW10425252 Whirlpool Refrigerator Cover
15MODULE
16WPW10439624 Whirlpool Refrigerator Evaporator Motor
17WPW10453428 Whirlpool Refrigerator Fan Scroll
18W11028224 Whirlpool Refrigerator Support
19W10837626 Whirlpool Refrigerator Support
20W10300484 Whirlpool Refrigerator Filter Cover
