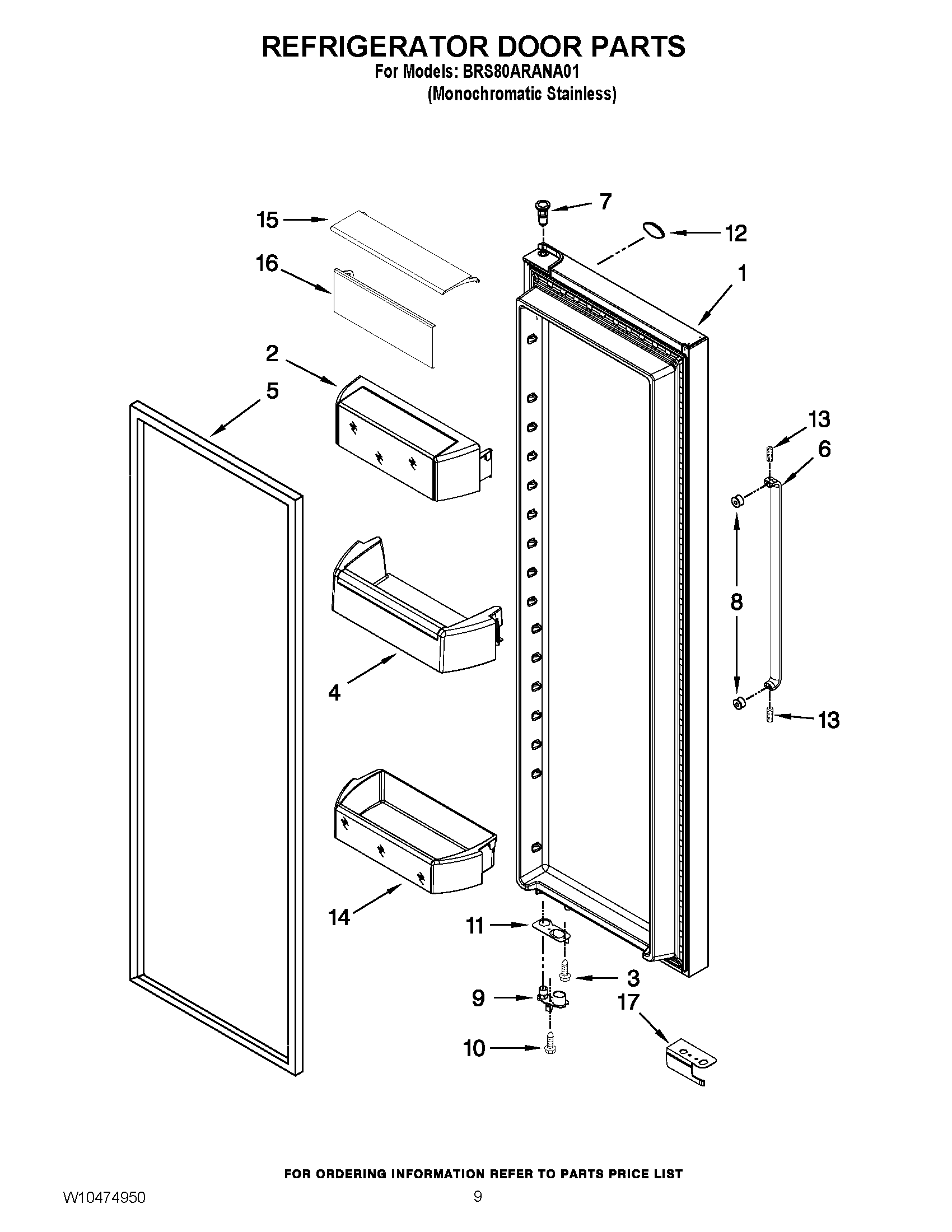

BRS80ARANA01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
2	ASSEMBLY, DOOR COMPARTMENT
3	SCREW
4	DOOR BIN, SHALLOW
5	W10355588 Whirlpool Refrigerator FIP Gasket
6	HANDLE
7	WP2182181 Whirlpool Refrigerator Thimble
8	STUD, HANDLE
9	WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10	WPW10296804 Whirlpool Refrigerator Screw
11	W11037957 Whirlpool Refrigerator Bracket
12	NAMEPLATE
13	SCREW
14	WPW10335220 Whirlpool Refrigerator Cantilever Bin
15	WPW10316883 Whirlpool Refrigerator Door Compressor
16	WINDOW, DOOR COMPARTMENT
17	W11661847 Whirlpool Wire Cover
