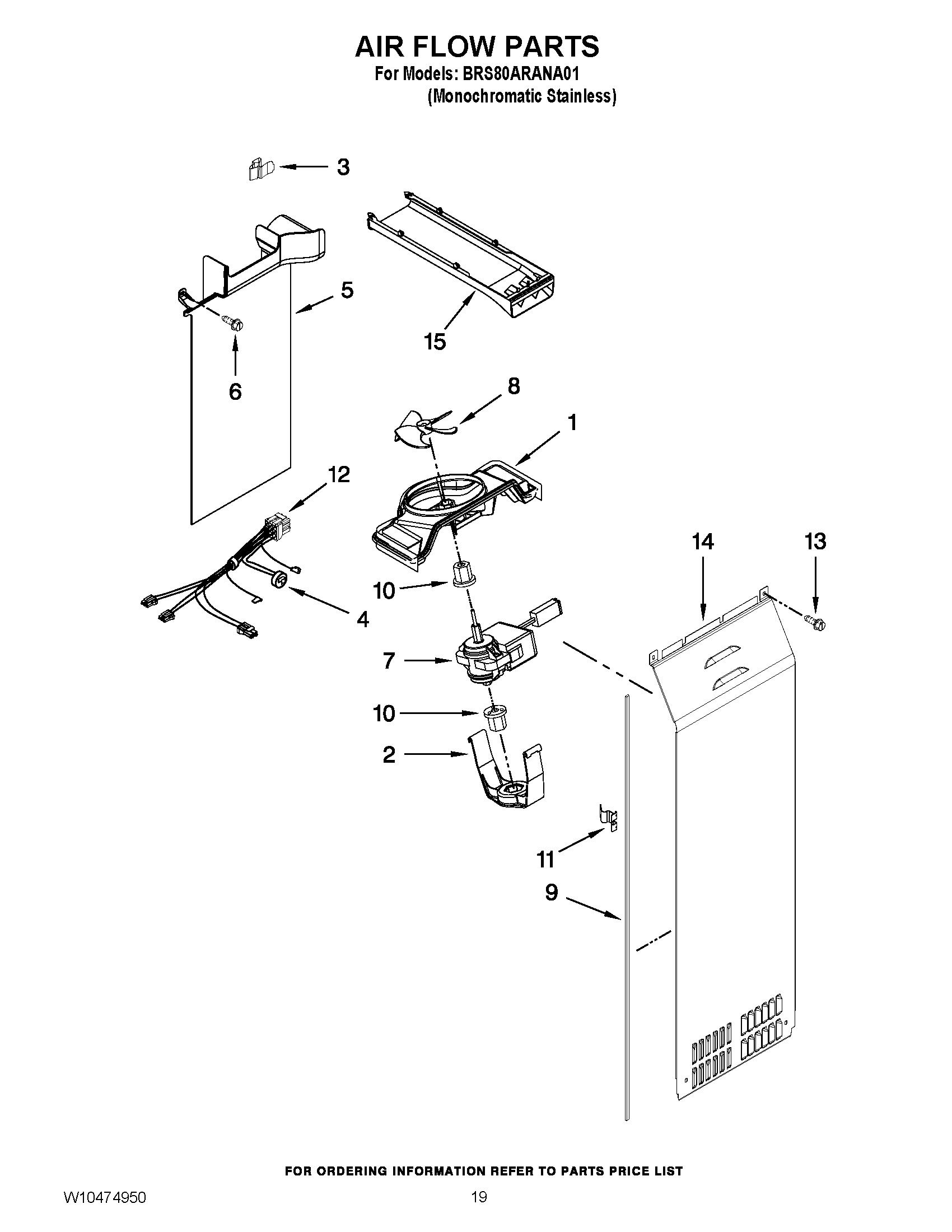

BRS80ARANA01 11 – AIR FLOW PARTS

Products

Position	Product
1	W10251462 Whirlpool Refrigerator Scroll Fan
2	W11671527 Whirlpool Retainer Assembly
3	W10331728 Whirlpool Refrigerator Clip
4	W11590570 Whirlpool Bimetal Defrost
5	WPW10382902 Whirlpool Refrigerator Air Duct
6	WP489478 Whirlpool Refrigerator Screw
7	WPW10359880 Whirlpool Refrigerator Evaporator Motor
8	WP2169142 Whirlpool Fan Blade
9	W10240370 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
11	W11232019 Whirlpool Refrigerator Clip
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	WP693995 Whirlpool Screw
14	WPW10388269 Whirlpool Refrigerator Evaporator Cover
15	AIR DUCT, UPPER
